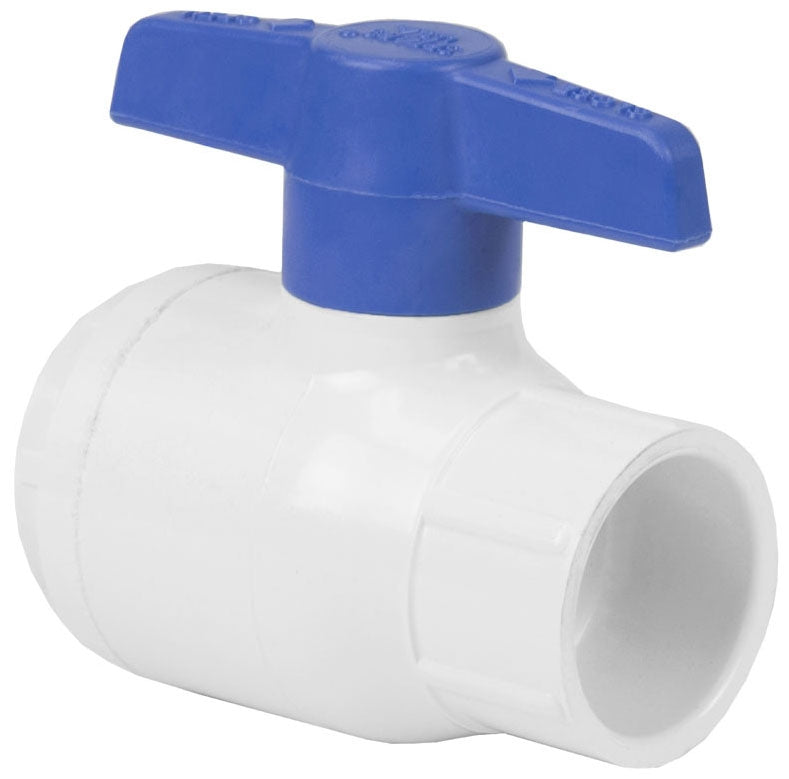

Spears 2622-012 Utility Ball Valve PVC 1-1/4 Inch Socket Model

Product Description

The Spears Manufacturing 2622-012 is a utility ball valve designed to provide reliable sealing and control in plumbing systems. With a nominal size of one and one-quarter inches, this valve features a PVC body and socket x socket ends for straightforward installation.

• Operating Pressure: 150 PSI at seventy-three degrees Fahrenheit
• Temperature Rating: 140 degrees Fahrenheit
• Material: PVC with EPDM O-Ring seal

Product Highlights

This utility ball valve is suitable for potable water applications. It incorporates a one-piece sealed unit design for durability and ease of use.

Product Information

Standard Information

• Brand: Spears Manufacturing
• MPN: 2622-012

Technical Specifications

• End Connection: Socket x Socket
• Body Material: PVC
• Seal Material: EPDM O-Ring
• Seat Material: PTFE/HDPE
• Inlet to Outlet Length: 3-7/8 inches
• Top to Inlet Center: 2-13/16 inches
• Pressure Rating: 150 PSI at seventy-three degrees Fahrenheit
• Temperature Rating: 140 degrees Fahrenheit
• Applicable Standard: NSF, ISO 9001
• Color: White
