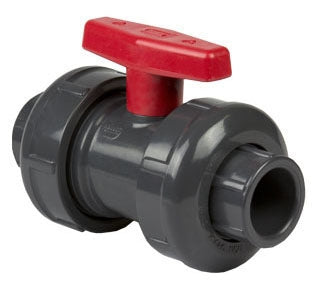

Spears 2339-005C True Union Ball Valve 1/2 Inch Socket and FNPT

Product Description

The Spears Manufacturing 2339-005C is a true union ball valve designed for use in various plumbing applications. This quarter-turn valve features a nominal size of 1/2 inch and utilizes a socket and female NPT end connection. It is made from ASTM D1784 molded CPVC and has a temperature rating of up to two hundred degrees Fahrenheit.

• Type: True Union
• Actuation: 1/4 Turn
• Pressure Rating: 235 PSI at 73 degrees Fahrenheit

Product Highlights

This ball valve is chemical and corrosion resistant, making it suitable for industrial, chemical, and potable water systems. It includes a strong buttress thread union nut and has been engineered for high strength.

Product Information

Standard Information

• Manufacturer: Spears Manufacturing
• UPC: 5421150870

Technical Specifications

• Ball Material: ASTM D1784 Molded CPVC
• Body Material: ASTM D1784 Molded CPVC
• Stem Material: ASTM D1784 Molded CPVC
• Seat Material: PTFE
• Seal Material: FKM O-Ring
• Handle Material: Polypropylene
• End Connection: Female Threaded/Socket x Female Threaded/Socket
• End to End Distance: Five and three-sixteenths inches
• Port Type: Regular, Full
• Inclusions: Strong Buttress Thread Union Nut, Silicone-Free and Water Soluble Lubricant
