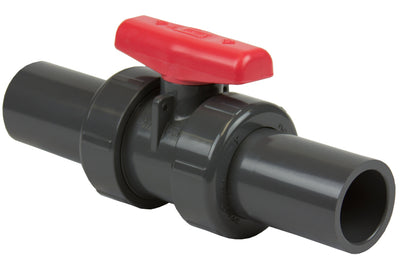

Spears 2329-012 1-1/4 PVC TU Ball Valve SOC/FPT EPDM

Product Description

The Spears 2329-012 is a 1-1/4 inch true union ball valve with socket and female NPT connections. This valve is designed for use in a variety of applications, offering reliable shut-off capabilities due to its quarter-turn design. The valve features a PVC body and EPDM soft goods, making it suitable for chemical handling and corrosive environments.

• Pressure rated for 235 psi
• Temperature rated for up to 140 degrees Fahrenheit
• Self-adjusting PTFE floating seat design

Product Highlights

This valve excels in industrial and chemical processing applications, ensuring durability and longevity in service.

Product Information

Standard Information

• Manufacturer: Spears
• Part Number: 2329-012

Technical Specifications

• Nominal Size: 1-1/4 inches
• Actuator Type: T-Handle
• Ball Material: PVC
• Body Material: PVC
• End Style: Socket and FNPT
• Pressure Rating: 235 psi
• Temperature Rating: 140 degrees Fahrenheit
• Color: Gray
• Series: True Union
• Softgoods Material: EPDM
• Inlet to Outlet Length: 7-1/16 inches
• Top to Inlet Center: 2-31/32 inches
• Trim Material: PVC Stem and PTFE Seat
