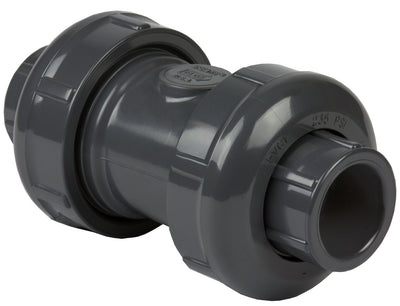

Spears 2229-012C 1-1/4 CPVC TU BALL CHK VALV SOC/FPT EPDM

Product Description

The Spears 2229-012C is a ball check valve made with CPVC. It features a True Union design. This component is designed for use with potable water. The valve has a nominal size of one and one-quarter inches and connects using socket and female NPT ends. It is rated to handle a pressure of two hundred thirty-five psi and can operate at a temperature of up to seventy-three degrees Fahrenheit. The length from inlet to outlet is seven inches, and the height of the valve is three and eleven-sixteenth inches.

• True Union design
• Corrosion-resistant CPVC material
• Simple installation in horizontal or vertical orientations

Product Highlights

This valve is fully serviceable and made with replaceable components. It uses an EPDM O-ring, which is suitable for either vacuum or standard service. The valve also includes silicone-free, water-soluble lubricant for assembly.

Product Information

Standard Information

• Type: True Union Regular Style
• Brand: Spears

Technical Specifications

• Nominal Size: 1-1/4 inches
• Ball Material: CPVC
• Body Material: CPVC
• Color: Gray
• Pressure Rating: 235 psi
• Temperature Rating: 73 degrees Fahrenheit
• End Style: Socket/FNPT
• Inlet to Outlet Length: 7 inches
• Softgoods Material: EPDM
• Dimensions: 3-11/16 inches high
• Domestic/Import: Domestic
