Spears 2132-015 1-1/2 PVC compact ball valve socket FKM (1-1/2 in)

Brand: SPEARS
SKU: 2132-015
Availability: In Stock

Ships same day if ordered by 12 pm
$165.68
$165.68
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

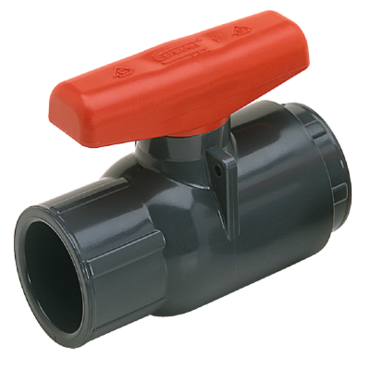

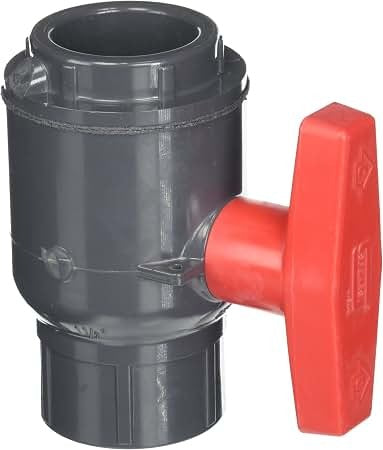

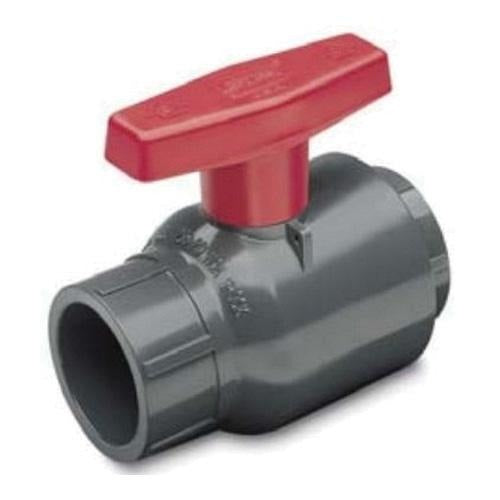

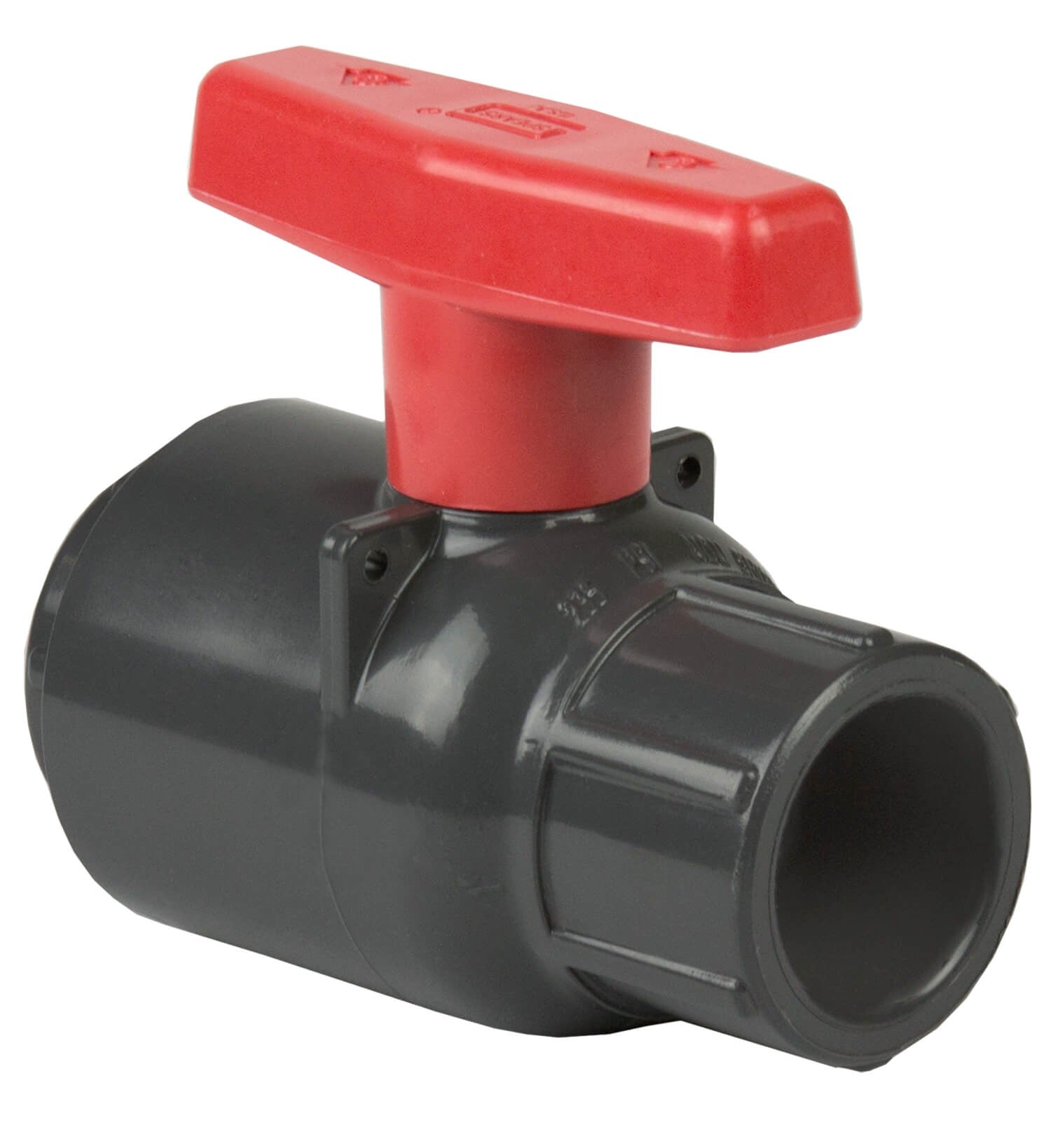

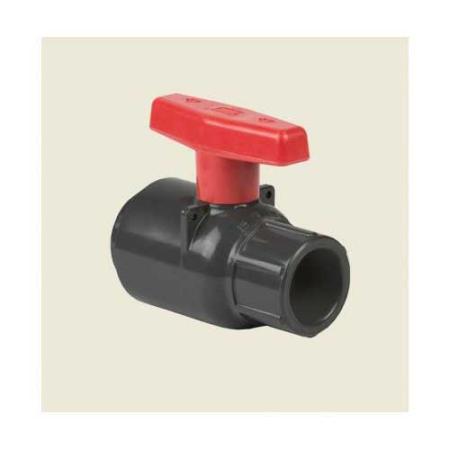

The Spears 2132-015 is a 1-1/2 inch PVC compact ball valve with socket ends and FKM seals, intended for quarter-turn shutoff in PVC piping systems. It features a T-handle actuator, PVC ball and body, PVC stem with PTFE seat trim, and an FKM O-ring. The valve is rated to 235 psi and 140 deg F and has an inlet-to-outlet length of 5-5/8 in and top-to-inlet center of 3-11/16 in.

  • Construction: PVC body and PVC ball with PVC stem and PTFE seat trim; FKM O-ring seals
  • Ratings and dimensions: 235 psi pressure rating, 140 deg F temperature rating, 5-5/8 in inlet-to-outlet length, 3-11/16 in top-to-inlet center
  • Features: Socket end connection for solvent welding, T-handle actuator, full SCH 80/XH bore, compact 2000 style

Product Highlights

1-1/2 in PVC compact socket ball valve, FKM seals, T-handle, 235 psi / 140 deg F, ASTM F1970 and NSF approved

Product Information

Standard Information

  • Brand: SPEARS
  • Manufacturer Part Number: 2132-015
  • Country of Origin: United States
Technical Specifications
Brand
Spears
Manufacturer Part Number
2132-015
Nominal Size
1-1/2 in
Connection Type
Socket
End Style
Socket
Type
Compact ball valve (Compact 2000 / regular style)
Body Material
PVC
Ball Material
PVC
Stem Material
PVC
Seat Material
PTFE
Seal Material
FKM (O-ring)
Actuator Type
T-handle (manual)
Handle Material
High impact polypropylene
Pressure Rating
235 psi
Temperature Rating
140 deg F
Bore
Full SCH 80/XH bore
Inlet to Outlet Length
5-5/8 in
Top to Inlet Center
3-11/16 in
Standards and Approvals
ASTM F1970; NSF approved
Construction
Molded PVC compact construction
Country of Origin
Domestic
Weight
1.08 lbs (0.49 kg)
