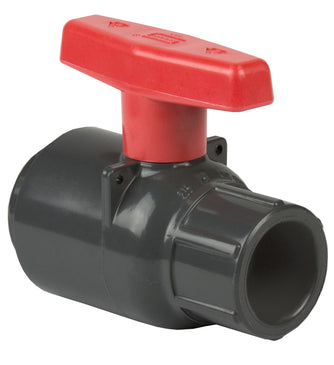

SPEARS 2131-020 2 PVC COMPACT BALL VALVE THREAD FKM

Product Description

The Spears 2131-020 is a two-inch PVC compact ball valve. It features a FKM O-ring and threaded ends. This valve operates with a quarter-turn shut-off mechanism. It is ideal for chemical and industrial applications where maintenance-free usage is important. The valve is available with factory-adjusted sealed units with either socket or threaded end connections.

• Heavy bodied PVC construction
• High impact polypropylene handle
• Full SCH 80/XH bore

Product Highlights

Product Information

Standard Information

• Item Number: 2131-020
• Brand: Spears

Technical Specifications

• Nominal Size: 2 inches
• End Style: FNPT
• Pressure Rating: 235 psi
• Temperature Rating: 140 degrees Fahrenheit
• Actuator Type: T-Handle
• Ball Material: PVC
• Inlet to Outlet Length: 6-5/16 inches
• Top to Inlet Center: 4-3/8 inches
• Body Material: PVC
• Trim Material: PVC Stem and PTFE Seat
• Softgoods Material: FKM
• Domestic/Import: Domestic
