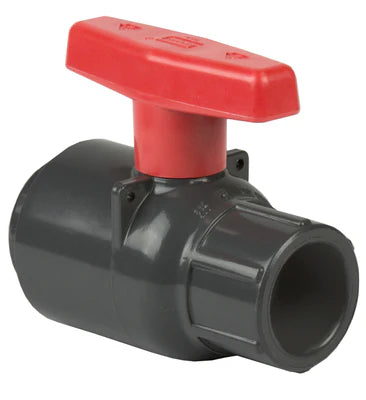

Spears 2122-015C 1-1/2 CPVC Compact Ball Valve Socket EPDM

Product Description

The Spears 1-1/2 CPVC Compact Ball Valve, MPN 2122-015C, is designed for fluid control in plumbing systems. It features a durable CPVC body and socket ends, rated for a pressure of 235 psi and a temperature up to 200 degrees Fahrenheit.

• Constructed from heavy-bodied CPVC for strength.
• Includes a T-handle actuator for easy operation.
• EPDM O-ring for reliable sealing.

Product Highlights

This valve is ideal for applications requiring compact size and high pressure. Its compact design makes it a suitable choice where space is limited, while providing dependable performance.

Product Information

Standard Information

• Manufacturer: Spears
• UPC: 054211500545

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: CPVC
• Body Material: CPVC
• Color: Gray
• Domestic/Import: Domestic
• End Style: Socket
• Inlet to Outlet Length: 5-5/8 inches
• Nominal Size: 1-1/2 inches
• Pressure Rating: 235 psi
• Softgoods Material: EPDM
• Temperature Rating: 200 degrees Fahrenheit
• Top to Inlet Center: 3-11/16 inches
• Trim Material: CPVC Stem and PTFE Seat
• Type: Compact
