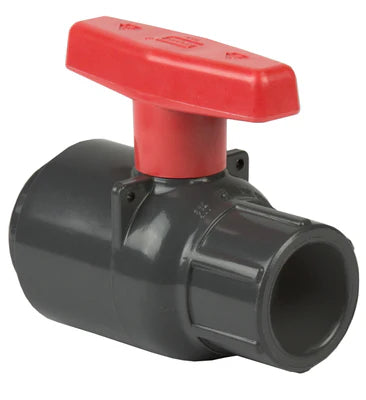

Spears 2121-010 1 PVC Compact Ball Valve Thd EPDM

Product Description

The Spears 2121-010 is a compact PVC ball valve designed for high-pressure applications. This valve features a T-handle actuator and is suitable for various plumbing systems. It has a nominal size of one inch with a FNPT end style, making it a versatile choice for professionals.

• Pressure rating of 235 psi
• Temperature rating up to 140 degrees Fahrenheit
• Domestic construction with EPDM softgoods

Product Highlights

The Spears 2121-010 provides reliable performance in demanding environments. Its compact design allows for easy installation in tight spaces.

Product Information

Standard Information

• Manufacturer: Spears
• Brand: Spears

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: PVC
• Body Material: PVC
• Inlet to Outlet Length: 4-5/16 inches
• Nominal Size: 1 inch
• Pressure Rating: 235 psi
• Softgoods Material: EPDM
• Temperature Rating: 140 degrees Fahrenheit
• Top to Inlet Center: 2-13/16 inches
• Trim Material: PVC Stem and PTFE Seat
• End Style: FNPT
• Domestic/Import: Domestic
