SPEARS 10182 Hay Bale Spear or Tiller Blade

Product Description

The SPEARS MPN 10182 is a versatile attachment that functions as both a hay bale spear for skid steers and as a tiller blade. This item fits all makes and models of skid steers and front-end loaders with a quick attach mounting adapter. It is effective for handling square hay bales measuring six to eight feet in length and weighing up to three thousand pounds. As a tiller blade, it can serve as a replacement part for various tilling equipment.

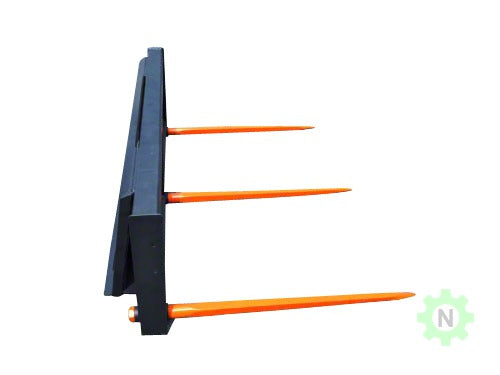

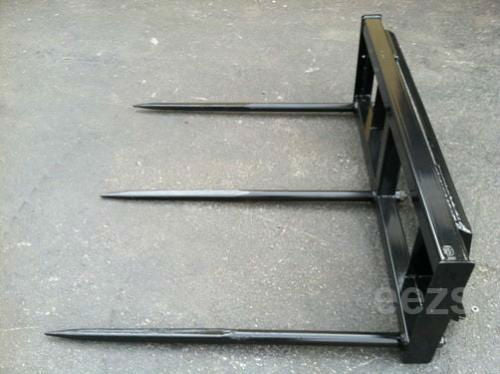

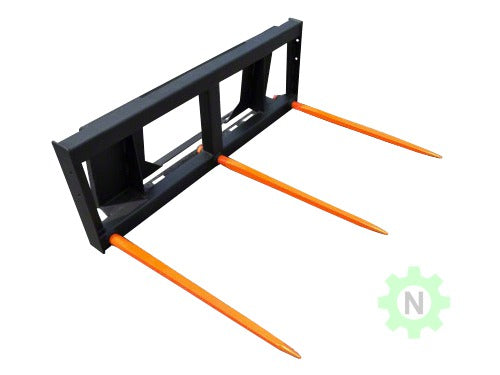

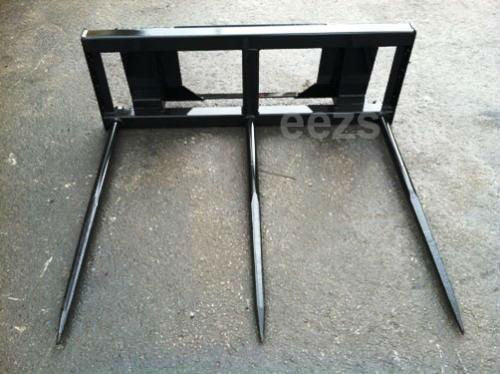

• Triple tine hay bale spear option with three replaceable square tapered spears
• Usable spear length of thirty-eight inches
• Constructed from durable materials for extended use

Product Highlights

The SPEARS MPN 10182 offers dual functionality, enabling easy handling of hay bales and efficient tilling.

Product Information

Standard Information

• Weight: 164 lbs.
• Construction Material: Boron steel

Technical Specifications

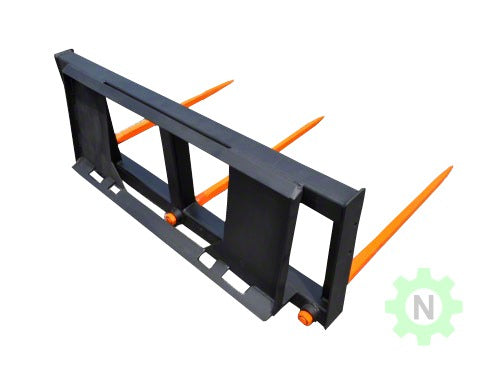

• Mounting End Inside Size Between Top and Bottom Latch: 16 inches
• Mounting End Inside Width: 44.5 inches
• Mounting End Inside Size Between Bottom Latch (Four Wide Rectangular Holes): 28.25 inches
• Mounting End Inside Size Between Bottom Latch (Two and a Half Wide Rectangular Holes): 19.25 inches
• Usable Spear Length: 38 inches
• Blade Height: 140 mm / 5.5 inches
• Blade Length: 170 mm / 6.6875 inches
• Blade Hole Diameter: 11.5 mm / 0.4375 inches
• Blade Hole Spacing: 57 mm / 2.25 inches
• Blade Width: 75 mm / 2.9375 inches
• Blade Thickness: 6 mm / 0.25 inches
