Spacepak BM-3002 Hydronic Fan Coil Tee Plenum Wcsp-v

Product Description

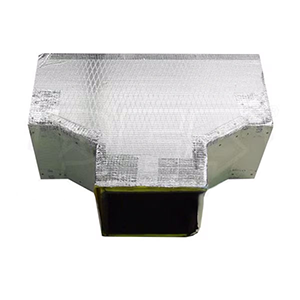

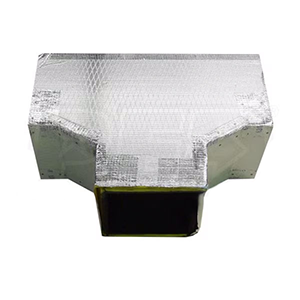

The SPACEPAK BM-3002 is a tee plenum designed for use with central hydronic fan coil systems in the 2 to 5 ton range. This fitting connects to the plenum assembly to direct conditioned airflow within the air distribution system. It is an OEM-specified component used during new installation or service replacement of hydronic fan coil units. HVAC technicians and hydronics installers working with SPACEPAK central fan coil systems will encounter this part when assembling or servicing the plenum section of the air handler.

This tee plenum is specifically designed for use with the SPACEPAK WCSP-V series central hydronic fan coil, covering the 2 to 5 ton capacity range. It is suited for residential and light commercial hydronic heating and cooling applications where a central fan coil unit is installed as the primary air handling component. The part is a direct-fit OEM-style replacement or new-installation component for the WCSP-V system.

Key Features

• Tee plenum configuration for directional airflow distribution in hydronic fan coil systems
• Compatible with 2 to 5 ton SPACEPAK WCSP-V central hydronic fan coil units
• 8-inch plenum sizing to match the WCSP-V air handling assembly
• OEM-specified fitting for proper system integration and airflow performance

Compatibility

Designed for use with the SPACEPAK WCSP-V series central hydronic fan coil in 2 to 5 ton configurations.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with hydronic air handling systems. Power to the fan coil unit must be disconnected and the hydronic circuit should be isolated before servicing the plenum assembly. Ensure proper alignment and secure fastening of the tee plenum to adjacent plenum sections to prevent air leakage. Follow all applicable local mechanical codes during installation.

Technical Specifications

• Item Type: Plenum Tee
• Plenum Size: 8 inches
• Compatible System Capacity: 2 to 5 Ton
• Used On Model: SPACEPAK WCSP-V Central Hydronic Fan Coil

Standard Information

• Brand: SPACEPAK
• Manufacturer Part Number: BM-3002
