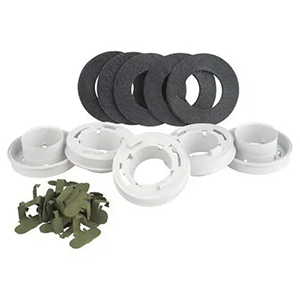

Spacepak AC-TKMR-5 Round Sheet Metal Plenum Take-off 5 Pack

Product Description

The SPACEPAK AC-TKMR-5 is a round sheet metal plenum take-off assembly sold in a pack of five, designed for use in hydronic fan coil air distribution systems. This fitting connects the plenum to round duct runs, directing conditioned air from the coil unit into the supply trunk system. It is fabricated from sheet metal for rigid, airtight fitment within the plenum assembly. HVAC technicians and hydronic system installers use this component when building out or servicing fan coil distribution systems in residential or light commercial applications.

This take-off is intended for use with the SPACEPAK WCSP-J Central Hydronic Coil and is compatible with 2 to 5 ton fan coil units in that product line. It is typically installed during new construction or system retrofits where round duct branch takeoffs are required from the plenum. Each package contains five assemblies, making it suitable for multi-zone or multi-run installations where several branch connections are needed from a single plenum.

Key Features

• Round sheet metal construction for rigid, low-leakage plenum connections
• Sold in a pack of five assemblies for multi-branch installations
• Designed for use with 2 to 5 ton hydronic fan coil units
• Fits SPACEPAK WCSP-J Central Hydronic Coil product line
• Provides a direct branch take-off point from the supply plenum to round ductwork

Compatibility

Designed for use with the SPACEPAK WCSP-J Central Hydronic Coil and compatible 2 to 5 ton fan coil units in that series.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with sheet metal duct systems and hydronic air handler configurations. Power down the fan coil unit and shut off the hydronic supply before working in the plenum area. Secure the take-off to the plenum using sheet metal screws and seal all joints with listed duct sealant or foil tape in accordance with local mechanical codes. Ensure take-off orientation is correct before fastening to prevent airflow restriction.

Technical Specifications

• Shape: Round
• Material: Sheet Metal
• Package Quantity: 5 per pack
• Application: Plenum Take-Off for Hydronic Fan Coil Systems
• Tonnage Range: 2 to 5 ton fan coil units

Standard Information

• Brand: SPACEPAK
• Manufacturer Part Number: AC-TKMR-5
