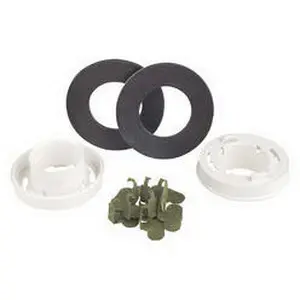

Spacepak AC-TKMR-2 Round Sheet Metal Plenum Take-off 2-pack

Product Description

The SPACEPAK AC-TKMR-2 is a round sheet metal plenum take-off assembly designed for hydronic fan coil and central hydronic coil installations. Each package contains two take-off assemblies, making it a practical choice for jobs requiring multiple duct connections at the plenum. The sheet metal construction provides the rigidity and dimensional stability needed for reliable airflow distribution in hydronic heating and cooling systems. HVAC technicians use this fitting to connect round duct runs directly to the plenum box of compatible fan coil units.

This take-off assembly is intended for use with the SPACEPAK WCSP-J Central Hydronic Coil and 2 to 5 ton fan coil units. It suits residential and light commercial applications where hydronic fan coil systems supply conditioned air through a ducted distribution network. The round configuration supports standard round duct connections, fitting into typical low-velocity or conventional duct layouts used in these system types.

Key Features

• Round sheet metal construction for rigid, durable plenum connections
• Designed for use with 2 to 5 ton fan coil units
• Compatible with the SPACEPAK WCSP-J Central Hydronic Coil
• Sold as a pack of 2 assemblies, reducing return trips for multi-connection jobs
• Supports standard round duct attachment at the plenum

Compatibility

Designed for use with the SPACEPAK WCSP-J Central Hydronic Coil and 2 to 5 ton fan coil units.

Installation Notes

Installation is typically performed by a licensed HVAC technician. Power down the air handler or fan coil unit completely before beginning any plenum or duct work. Secure the take-off to the plenum using appropriate sheet metal screws and seal all joints with listed duct sealant or foil tape per local mechanical code requirements. Verify round duct diameter compatibility before installation to ensure a proper fit and airtight connection.

Technical Specifications

• Configuration: Round
• Material: Sheet Metal
• Quantity Per Package: 2
• Compatible Unit Capacity: 2 to 5 Ton

Standard Information

• Brand: SPACEPAK
• Manufacturer Part Number: AC-TKMR-2
