Spacepak AC-TKFS-2 Plenum Take-off Kit 2-5 Ton Wcsp-j

Product Description

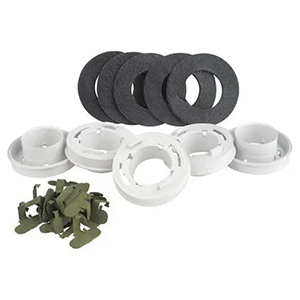

The SPACEPAK AC-TKFS-2 is a plenum take-off kit designed for use with central hydronic coil and fan coil unit installations. This assembly provides the transition hardware needed to connect supply air distribution to the plenum on compatible hydronic fan coil systems. It is sized for 2 to 5 ton fan coil units, covering the most common residential and light commercial capacity range. Licensed HVAC technicians typically install this kit as part of a complete SPACEPAK hydronic air distribution system, ensuring proper airflow routing from the fan coil plenum to the distribution network.

The AC-TKFS-2 is intended for use with the SPACEPAK WCSP-J series central hydronic coil and fan coil units rated from 2 to 5 tons. It fits into hydronic fan coil system installations where a dedicated plenum take-off connection point is required. This kit is suited for residential and light commercial applications where SPACEPAK hydronic distribution equipment is already specified or installed.

Key Features

• Designed specifically for SPACEPAK WCSP-J central hydronic coil and fan coil units
• Compatible with 2 to 5 ton fan coil unit capacity range
• Provides a complete plenum take-off assembly for proper air distribution connection
• OEM kit format simplifies installation and ensures correct fit

Compatibility

Designed for use with the SPACEPAK WCSP-J Central Hydronic Coil and 2 to 5 Ton Fan Coil Unit.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with hydronic fan coil systems. Shut down and de-energize the fan coil unit completely before beginning any plenum or ductwork connections. Follow local mechanical codes and the equipment manufacturer's installation instructions for duct attachment and sealing requirements. Verify the take-off orientation and alignment with the plenum before securing the assembly in place.

Technical Specifications

• Item Type: Plenum Take-Off Kit
• Compatible Unit Type: Central Hydronic Coil, Fan Coil Unit
• Capacity Range: 2 to 5 Ton
• Compatible Model Series: WCSP-J

Standard Information

• Brand: SPACEPAK
• Manufacturer Part Number: AC-TKFS-2
