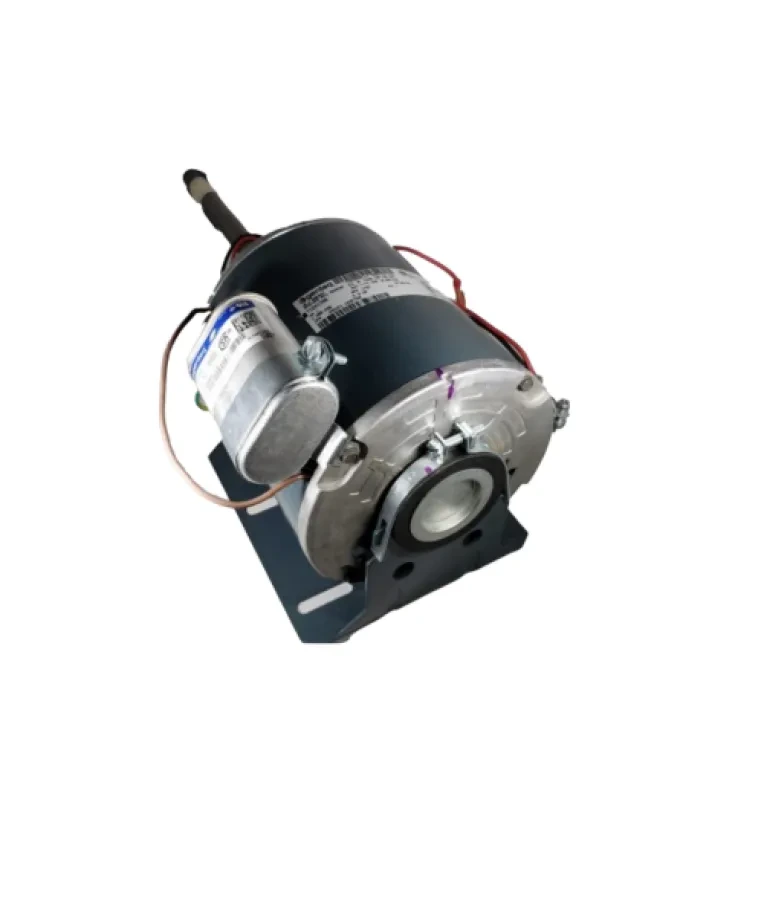

Spacepak 45W31RWG0792 Motor 1 HP (Horizontal) 395177

Product Description

Spacepak 45W31RWG0792 is a replacement blower motor for ESP4860 series horizontal air handlers. It provides 1 HP at 1725 RPM and operates on 208–230 V, 60/50 Hz, single-phase power with a rated current of 5.3 A. This high-velocity 4860 model is designed for horizontal installation in fan coil and air handler applications and is compatible with Spacepak G, F, E, and D series units.

• 1 HP high-velocity blower motor rated at 1725 RPM
• Electrical: 208–230 V, 60/50 Hz, single-phase, 5.3 A
• Compatible with ESP4860/4860 D/E/F/G and G/F/E/D series units; TSCO part number 395177

Product Highlights

Replacement blower motor for Spacepak ESP4860 horizontal air handlers; 1 HP, 1725 RPM; 208–230 V single-phase, 5.3 A

Product Information

Standard Information

• Brand: SPACEPAK
• Manufacturer Part Number: 45W31RWG0792

Technical Specifications

• Brand: Spacepak
• Manufacturer Part Number (MPN): 45W31RWG0792
• TSCO Part Number: 395177
• Product Type: Blower motor / Replacement motor
• Application: ESP4860 series fan coil unit / horizontal air handler
• Compatible Series: 4860 D/E/F/G; G, F, E, D series units; ESPJ and WCSPJ Series G unit size 4860
• Horsepower: 1 HP
• Input Voltage: 208-230 V
• RPM: 1725 RPM
• Frequency: 60/50 Hz
• Phase: Single phase
• Input Current: 5.3 A
• Orientation: Horizontal
• Manufacturer: SPACEPAK
