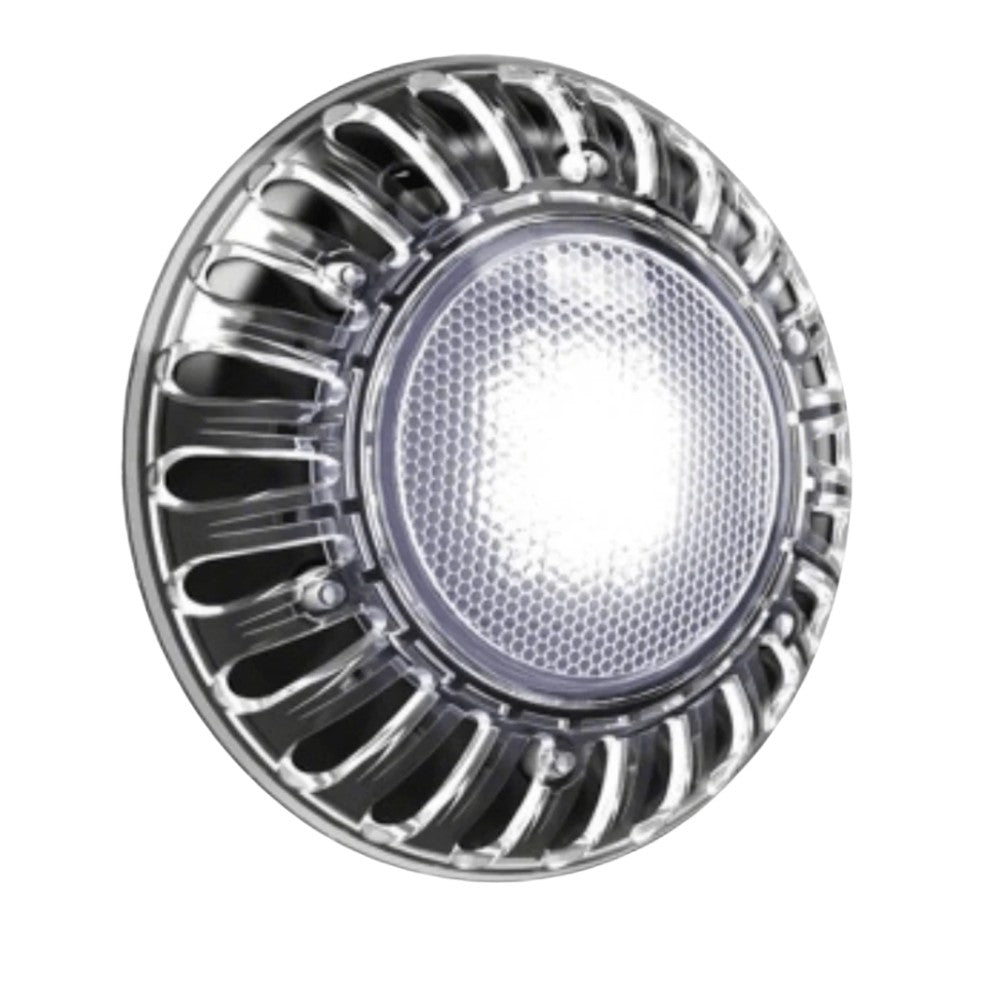

Spa Electrics A3L12L0CW4 Mini Niche Led Pool Light 12V

Product Description

The SPA ELECTRICS A3L12L0CW4 is a Mini Niche style LED pool light from the Atom Series, designed to deliver high-intensity illumination in residential and commercial pool installations. Powered by a Ceramic Light Engine LED light source, this fixture operates at 12 volts and 12 watts, producing market-leading output for its compact form factor. Rated IPX8 for full waterproof submersion, it is built to handle the demands of permanent in-pool installation. Licensed electricians and pool service professionals install this fixture during new construction or renovation projects where space-efficient niche lighting is required.

The A3L12L0CW4 is suited for concrete, fiberglass, and vinyl pool installations. Its small form factor makes it practical for both large and small pool builds where a traditional full-size niche is not desirable. The fixture supports top or back entry niche configurations and uses a Direct-Connect patented detachable electrical connection for streamlined field wiring. This specific model is the white color variant. A 12V AC UL-listed transformer is required for operation and is not included with the light.

Key Features

• Ceramic Light Engine LED technology for high-intensity, energy-efficient output
• IPX8 waterproof rating for permanent submerged pool use
• Operates at 12 volts and 12 watts — compatible with standard low-voltage pool lighting circuits
• Top or back entry niche installation flexibility
• Direct-Connect patented detachable electrical connection simplifies field wiring
• Suitable for concrete, fiberglass, and vinyl pool construction types
• Designed and manufactured in Australia with a 3-year manufacturer warranty

Compatibility

Compatible with Hayward Omnilogic, Pentair IntelliTouch and EasyTouch, Zodiac/Jandy RS (REV R through current), and Zodiac TRi automation systems when used in a multi-color configuration. This white variant supports standard wall switch operation. Requires a 12V AC UL-listed transformer; the LVX Series Transformer is a recommended match. Suitable for concrete, fiberglass, and vinyl pool shell types.

Installation Notes

Installation must be performed by a licensed electrician or qualified pool service professional in accordance with applicable local electrical codes and NEC Article 680 governing underwater lighting. Always de-energize the transformer and verify zero voltage at the fixture before handling. Confirm niche dimensions and entry orientation — top or back — prior to rough-in. Do not operate the fixture out of water for extended periods, as the water provides required thermal management for the LED engine.

Technical Specifications

• Light Source: Ceramic Light Engine (LED)
• Color: White
• Voltage: 12 volts AC
• Wattage: 12 watts
• IP Rating: IPX8
• Ambient Operating Temperature: 41 degrees F to 104 degrees F
• Installation Types: Concrete, Fiberglass, Vinyl
• Niche Entry: Top or Back
• Transformer Required: 12V AC UL-listed (not included)
• Warranty: 3 years (manufacturer)
• Country of Origin: Australia

Standard Information

• Brand: SPA ELECTRICS
• Manufacturer Part Number: A3L12L0CW4
