Southwire T1CG Rigid Conduit Body 1/2 Inch

Product Description

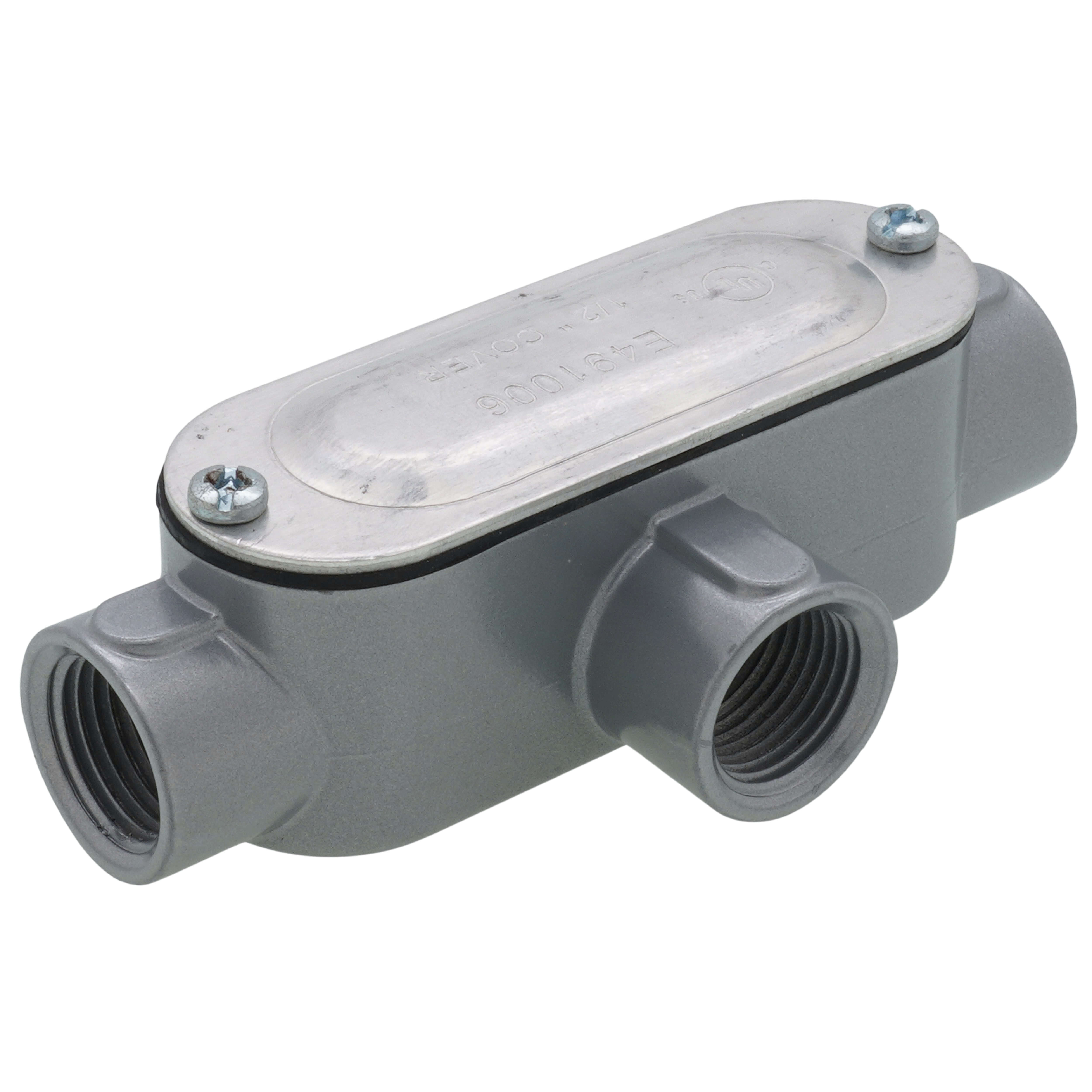

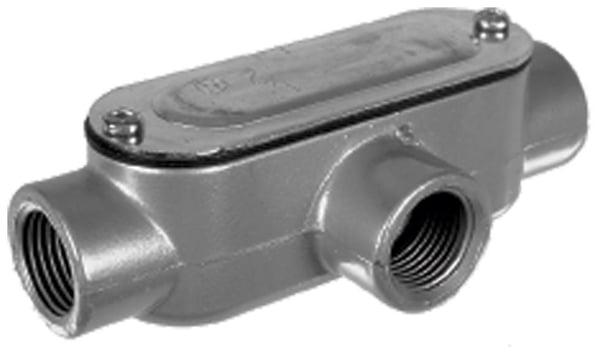

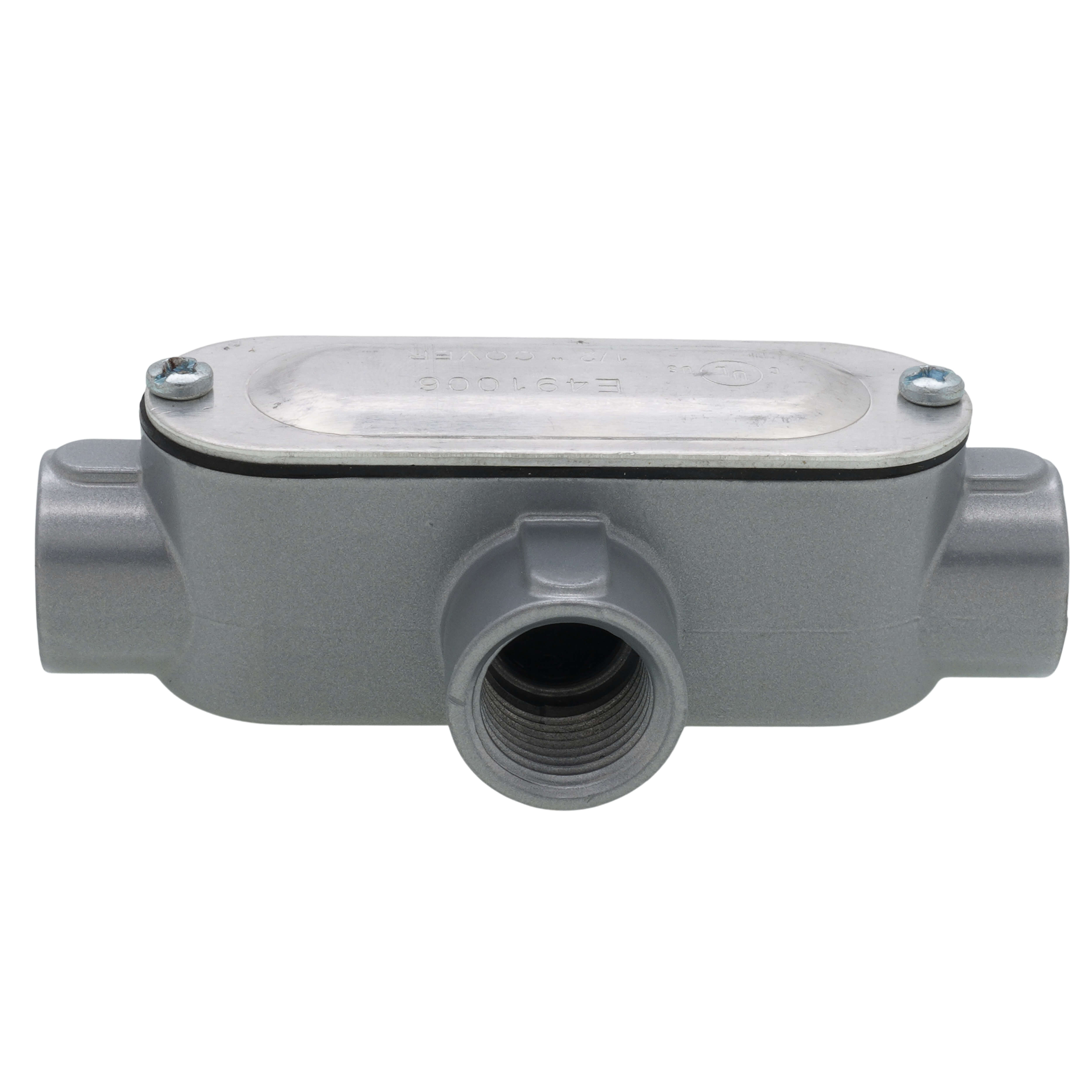

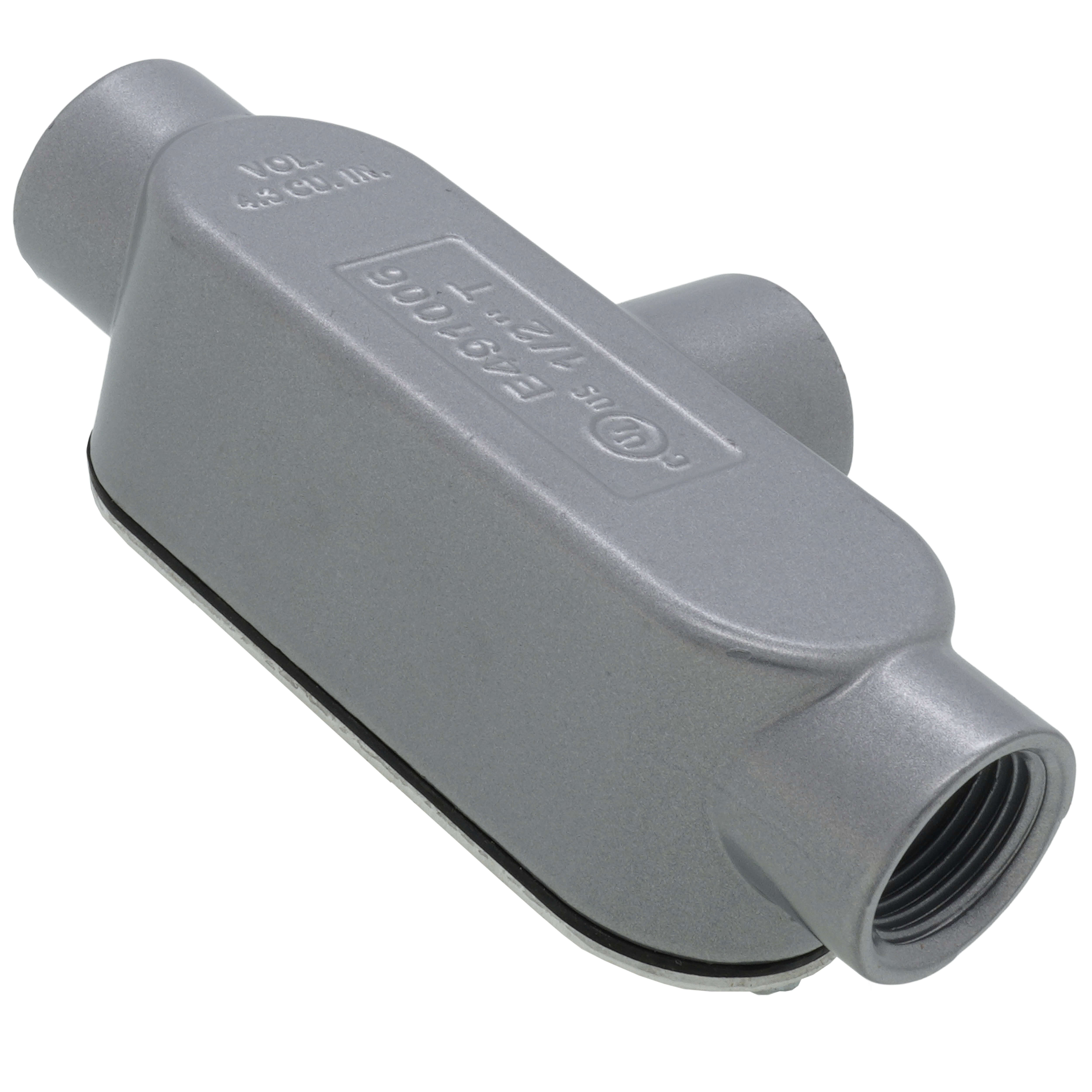

The SOUTHWIRE T1CG Rigid Threaded T type Conduit Body is manufactured from copper-free aluminum, designed for 3-way inline access in conduit systems. It facilitates splicing, pulling, and changing the direction of conduit runs. Smooth, rounded integral bushings protect conductor insulation. This lightweight aluminum body offers excellent ground continuity and corrosion resistance, featuring a cover and watertight gasket for weatherproof installations. It is UL listed.

• Provides access to conductors for pulling, splicing, and maintenance.
• Suitable for use in concrete and wet locations.
• Constructed from copper-free aluminum with a stamped steel cover and neoprene rubber gasket.

Product Highlights

Durable copper-free aluminum T-type conduit body with cover and gasket, ideal for concrete and wet locations.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: T1CG
• Country of Origin: India

Technical Specifications

• Access Opening: Side
• Approval: UL, CSA
• Configuration: T
• Cover Type: Stamped Steel
• Hub Location: Tee
• Hub Size: 1/2 Inch
• Installation: Threaded
• Body Material: Die-Cast Copper Free Aluminum
• Gasket Material: Neoprene Rubber
• Number Of Hubs: 3
• Used On: Rigid Conduit
• Product Type: Conduit Body
• UL Standard: UL 514A - UL 514D
• Fed. Spec: W-C-586D, A-A-50563
• NEMA: FB 1-2014 - NEMA 3R
• Connection Type: FNPT
• Mounting: Wall Mount
• Finish: Powder Coated
