Southwire R40005-1A 31SR Type CMR/CL3R Multi-Conductor Shielded Riser Cable 300 V AC 1000 ft L

Product Description

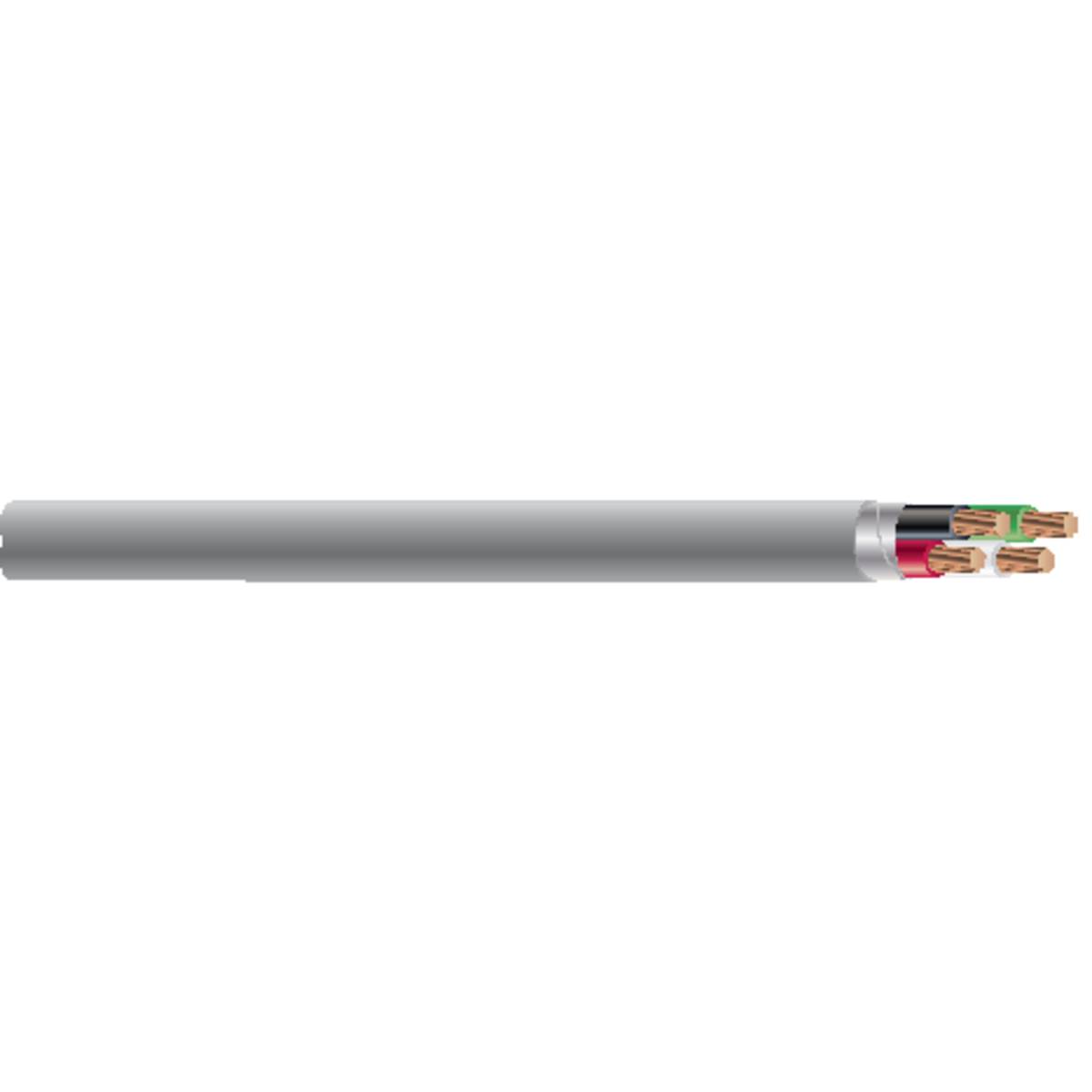

The SOUTHWIRE R40005-1A is a TAPPAN 31SR Series Type CMR/CL3R multi-conductor shielded riser cable designed for various low voltage and power limited systems. This 18 AWG cable features 4 bare stranded copper conductors, PVC insulation, and a PVC jacket. It has a 0.196 inch outside diameter and is supplied in a 1000 ft length. Rated for 300 V AC and a maximum operating temperature of 60 deg C, it is suitable for communication and control circuits.

• Ripcord included for simple jacket tear-back and removal
• Aluminum foil-polyester reinforced tape and stranded tinned copper drain wire shielding
• Suitable for use in general purpose low voltage and power limited systems' circuits to NEC article 725 16 AWG and smaller also for communications circuits to NEC article 800

Product Highlights

Multi-conductor shielded riser cable for low voltage and power limited applications.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: R40005-1A
• Country of Origin: US

Technical Specifications

• Conductor Size: 18 AWG
• Conductor Type: Bare Stranded Copper
• Insulation Material: PVC
• Jacket Color: Gray
• Jacket Material: PVC
• Manufacturer: Southwire Company
• Number of Conductors: 4
• Outside Diameter: 0.196 in
• Package Type: EACH
• Resistance: 6.92 Ohm
• Series: 31SR
• Strands: 7
• Temperature Rating: 60 deg C
• Type: Type CMR/CL3R Multi-Conductor Shielded
• Voltage Rating: 300 V AC
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, NEC Compliant, UL 444, UL 13
• Length: 1000 ft
• Application: Remote Control, Signaling and Power Limited Circuits, Security, Sound, Audio, Speaker Cable, Public Address, Intercom, Sound Reinforcement, Alarm and Access Control Circuits and Power Limited Controls Applications
• Shielding Type: Shielded
• Color Code: Black, Red, White, Green, Brown, Blue, Orange, Yellow, Violet, Gray, Pink, Beige
