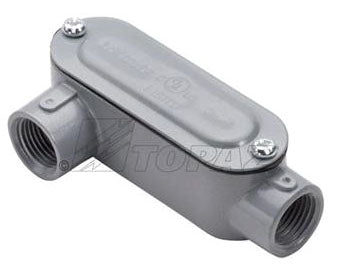

Southwire LR9CG Rigid Conduit Body

Product Description

The Southwire LR9CG Rigid Conduit Body is designed for access to conductors, allowing for pulling, slicing, and maintenance. This model features a die-cast copper free aluminum body with a neoprene rubber gasket for excellent durability. The cover is made of stamped steel, providing a secure closure.

• Constructed for rigid conduits
• Features a right side access opening
• UL and CSA approval for safety

Product Highlights

This conduit body is suitable for installation in concrete and is designed to ensure long-term reliability.

Product Information

Standard Information

• Manufacturer: Southwire
• UPC: 751338213210

Technical Specifications

• Access Opening: Right Side
• Approval: UL, CSA
• Configuration: LR
• Cover Type: Stamped Steel
• Hub Location: 90 Degree
• Hub Size: 3-1/2 Inch
• Installation: Threaded
• Material: Die-Cast Copper Free Aluminum Body, Neoprene Rubber Gasket
• Number Of Hubs: 2
• Size Reference: 15.5 IN x 6.171 IN x 5.45 IN
• Used On: Rigid Conduit
