Southwire LR8CG Rigid Conduit Body 3 Inch

Product Description

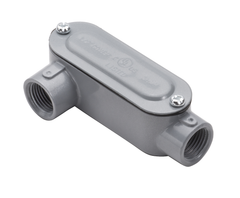

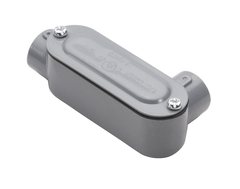

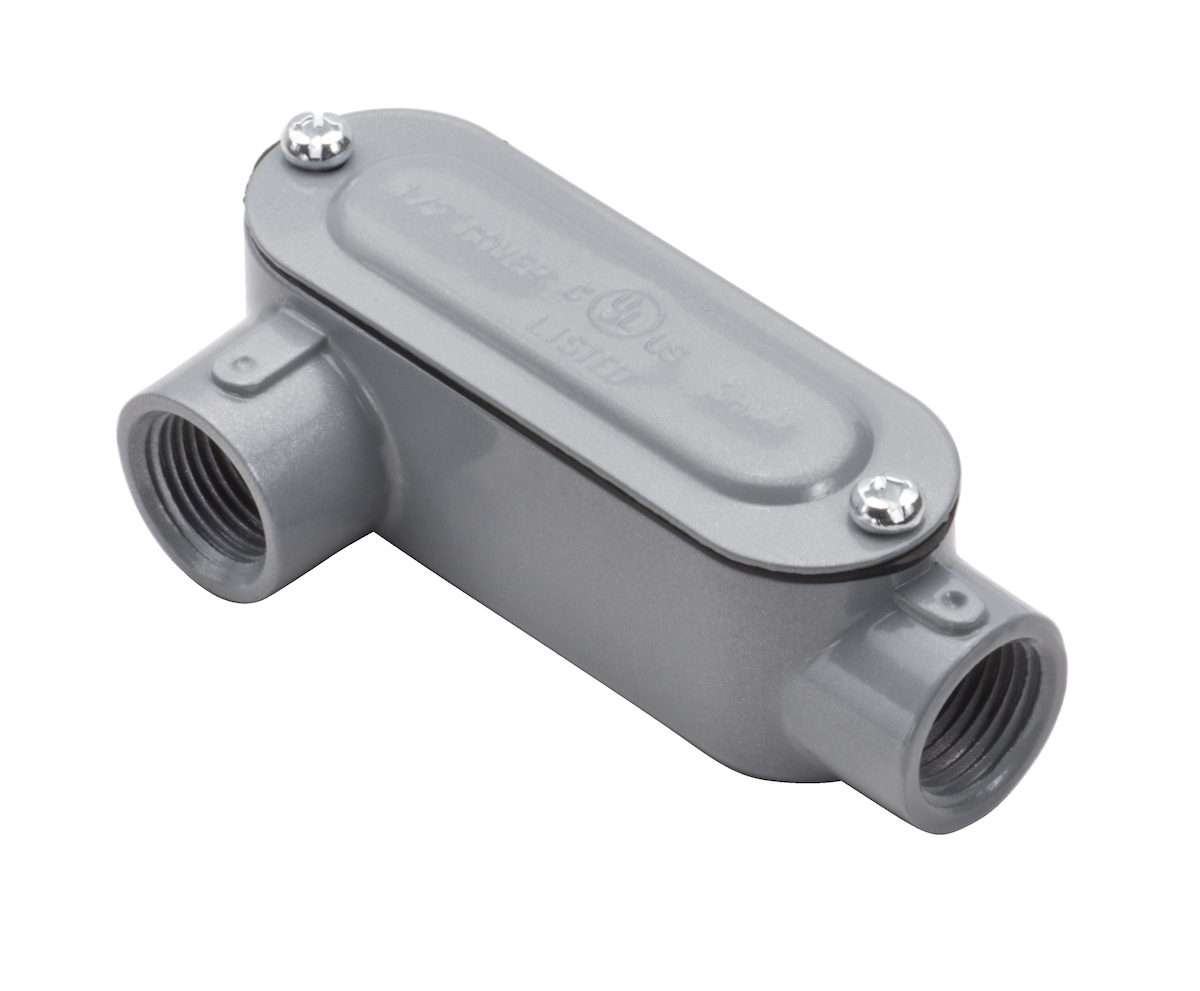

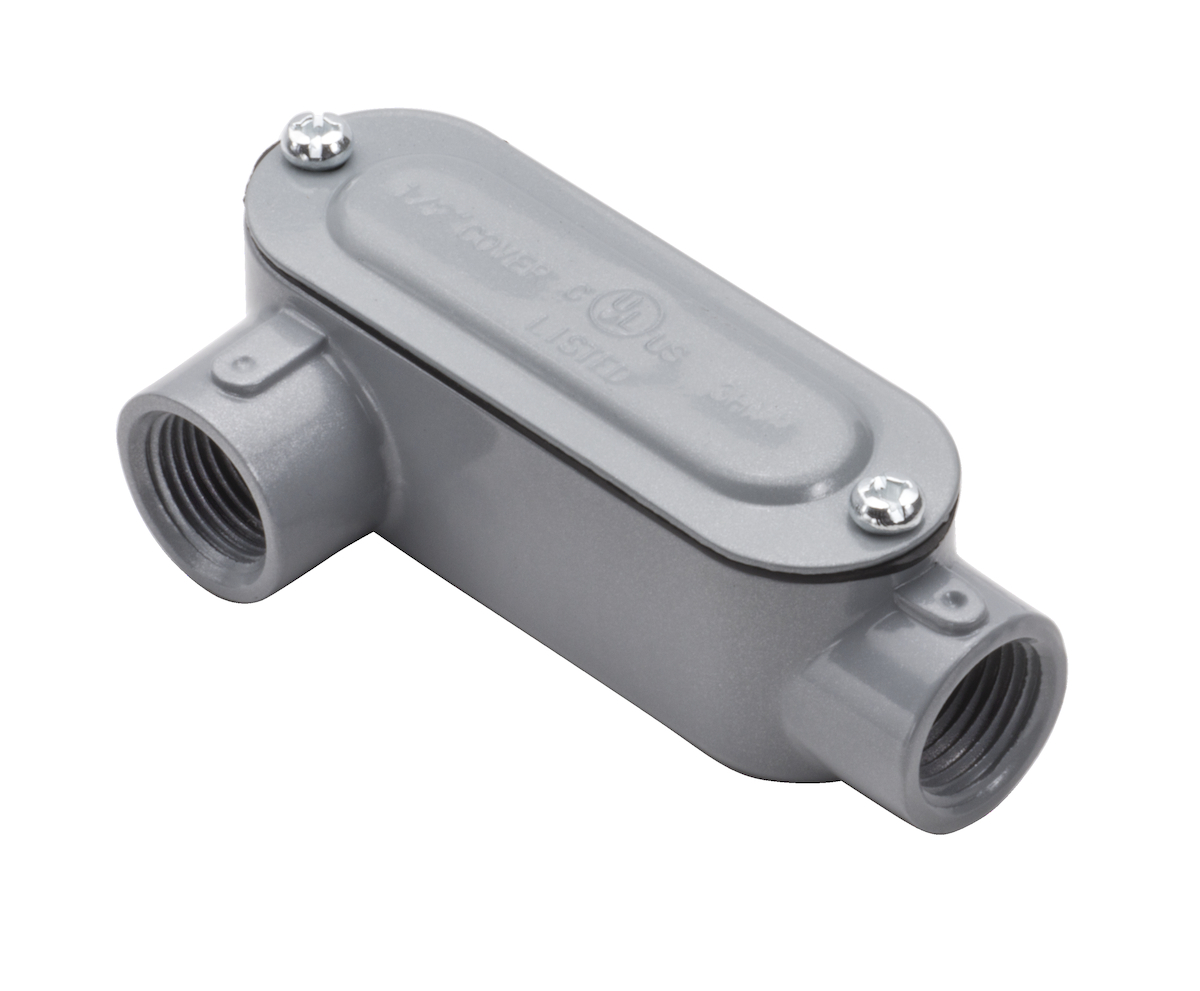

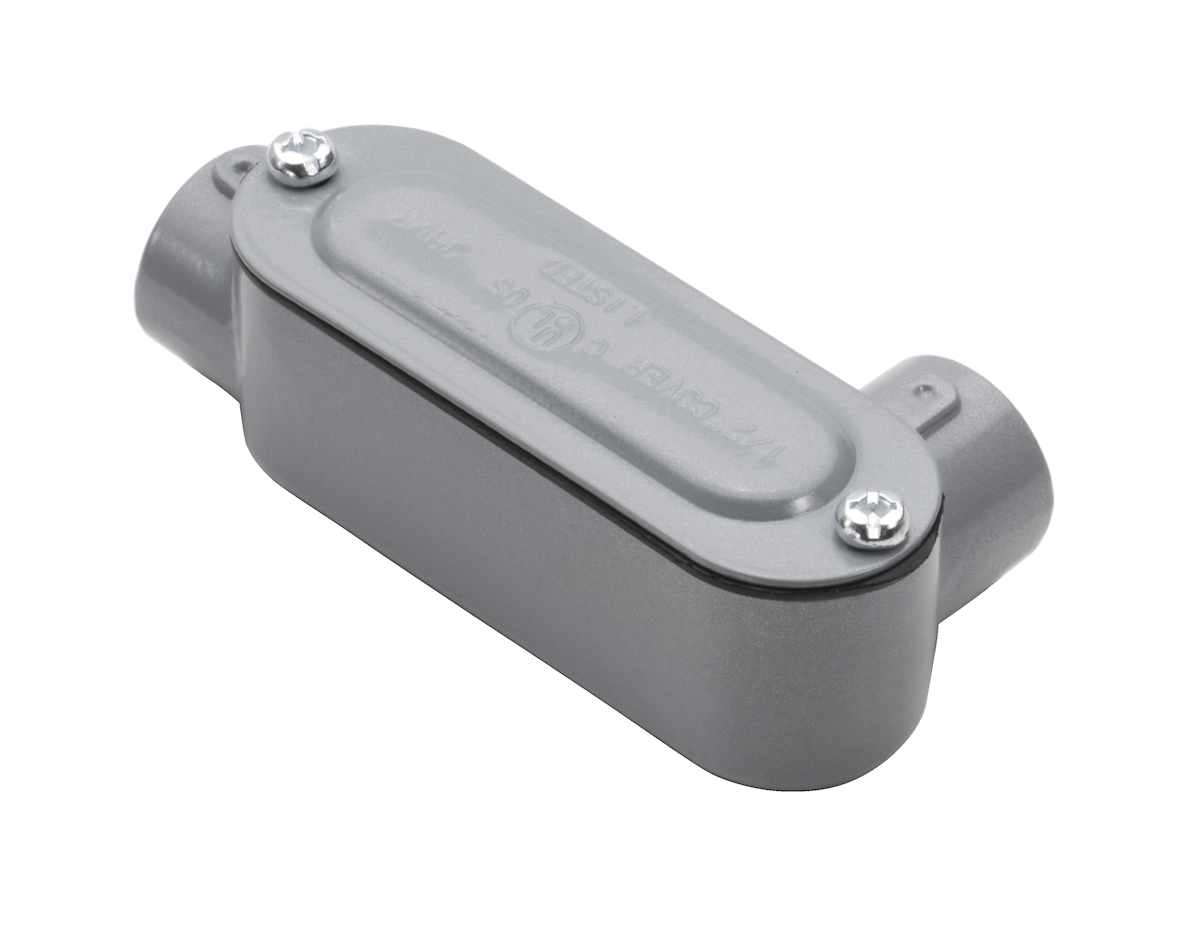

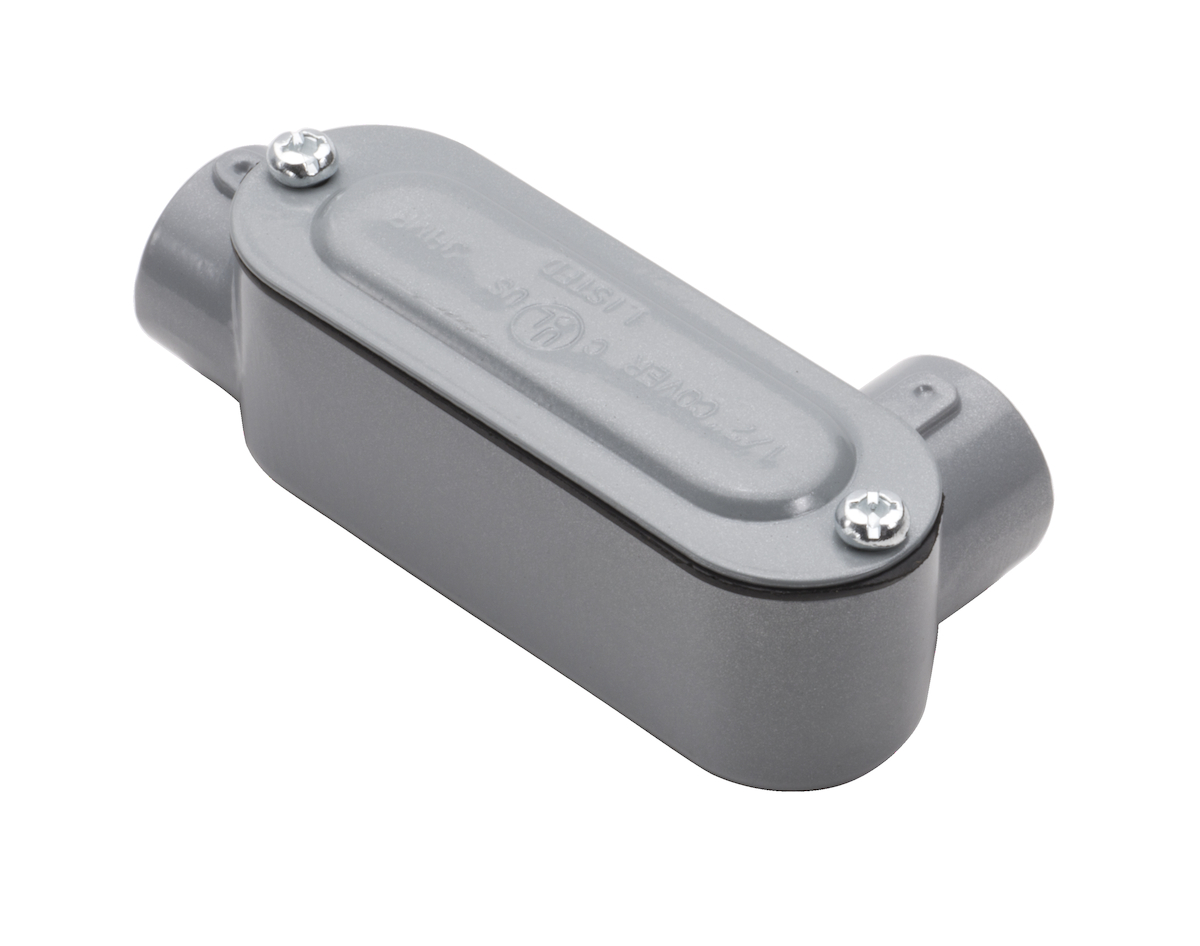

The SOUTHWIRE LR8CG rigid conduit body provides access to conductors for pulling, slicing, and maintenance. Constructed from die-cast, copper-free aluminum with a neoprene rubber gasket and a stamped steel cover. This LR configuration conduit body features a 3-inch hub size and is suitable for use in concrete.

• Provides access to conductors for pulling, slicing, and maintenance
• Suitable for use in concrete
• Threaded LR type with cover and gasket

Product Highlights

Provides access to conductors. Suitable for use in concrete. Features NPT tapered hubs and is suitable for wet locations.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: LR8CG
• Country of Origin: Unknown

Technical Specifications

• Approval: UL, CSA
• Configuration: LR
• Cover Type: Stamped Steel
• Hub Location: 90 Degree
• Hub Size: 3 Inch
• Installation: Threaded
• Manufacturer Name: Southwire
• Material: Die-Cast Copper Free Aluminum Body, Neoprene Rubber Gasket
• Number Of Hubs: 2
• Used On: Rigid Conduit
• Conduit Body Shape: LR
• Conduit Body Type: Threaded
• Trade Size: 3 in.
• Standard: UL E170258, CSA Certified, UL 514B, Federal Specification A-A-50563, NEMA/ANSI FB-1, Military Specification Number W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Application: To Provide Access to Conductors for Pulling, Slicing and Maintenance, Suitable for use in Concrete, Wet Locations
