Southwire G603-3/4 Switch Box 3-1/2 Inch Deep

Product Description

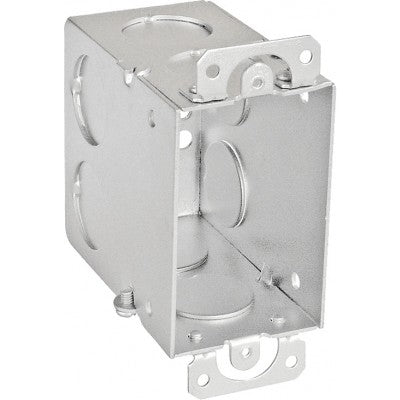

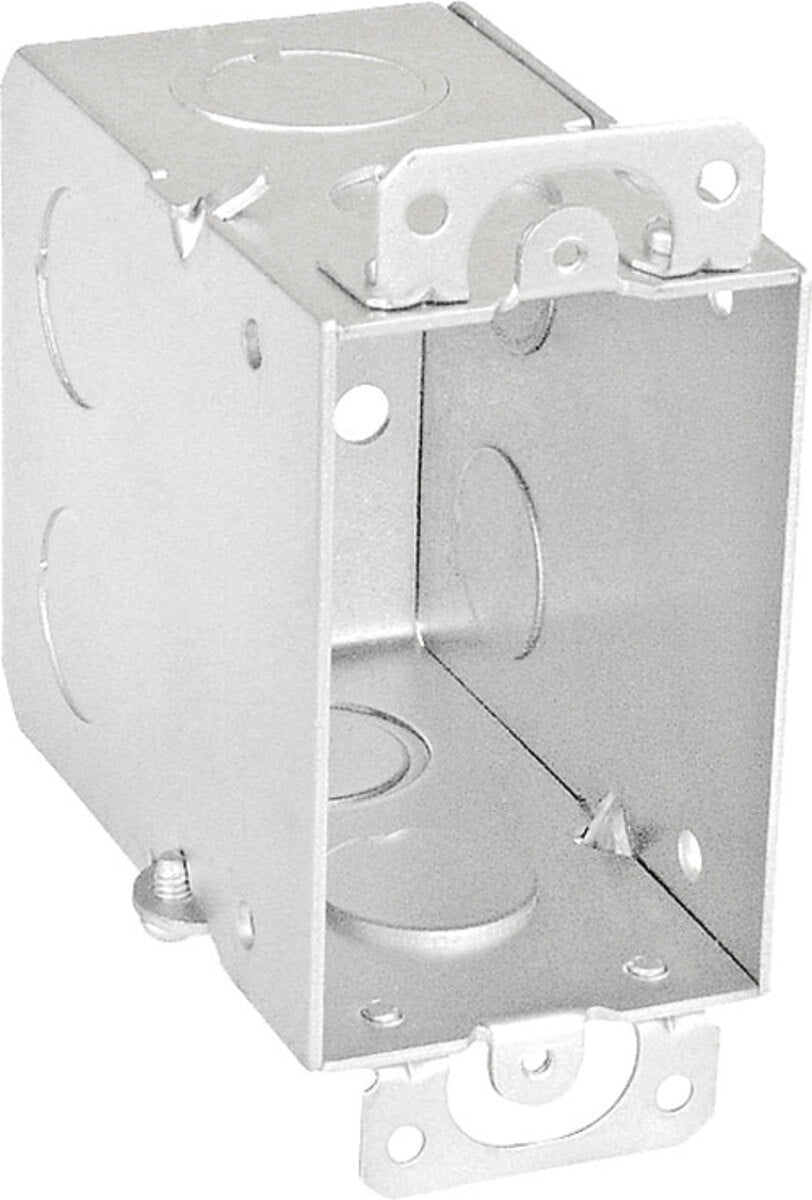

The Southwire Garvin G603-3/4 is a switch box designed for electrical construction. It has a depth of three and one-half inches and includes six three-quarter inch side knockouts along with two three-quarter inch bottom knockouts. This design facilitates easy connections for conduit. Constructed from galvanized steel, the switch box is gangable, allowing for multiple switches or devices to be installed. Plaster ears are included to simplify the cut-in process for adding outlets or switches to existing walls.

• Three and one-half inch deep switch box
• Includes six three-quarter inch side knockouts and two three-quarter inch bottom knockouts
• Made from galvanized steel

Product Highlights

Product Information

Standard Information

• Brand: Southwire
• Manufacturer Part Number: G603-3/4

Technical Specifications

• Material: Galvanized Steel
• Product Height: 3.5 inches
• Product Width: 2 inches
• Product Weight: 0.31 lbs
• Cubic Capacity: 18.0 (295.0)
• Side Knockouts: Six (3/4 inch)
• Color: Silver
