Southwire Company 667 Topaz Compression Conduit Coupling 2-1/2 in

Product Description

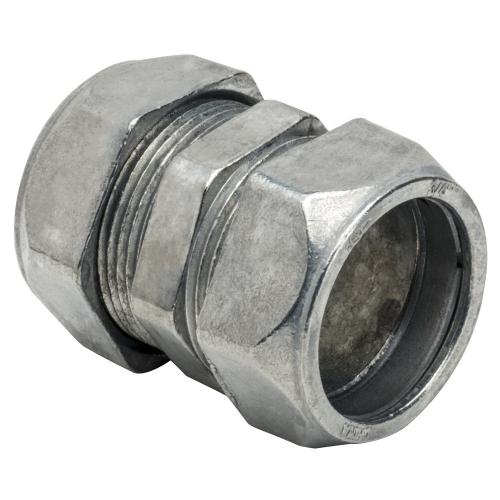

The Southwire Company 667 Topaz Compression Conduit Coupling is designed for use with EMT conduit. This coupling enables the secure joining of two lengths of EMT conduit, ensuring a safe and tight connection.

• Concrete tight functionality
• Made from durable die cast zinc
• Includes a die cast locknut for added security

Product Highlights

Ideal for electrical installations where reliable conduit connections are necessary.

Product Information

Standard Information

• Brand: Southwire Company
• Part Number: Q9197

Technical Specifications

• Application: For use to join two lengths of EMT conduit
• Dimensions: 3.7 in OD x 3.29 in L
• Includes: Die Cast Locknut
• Material: Die Cast Zinc
• Mfg Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 514B, UL File No. E148720, cULus File No. E148716, Federal Specification No. A-A-50553, NEMA/ANSI FB-1, ANSI C-80.1, WW-C-581
• Package Height: 4.0 inches
• Package Length: 3.0 inches
• Package Weight: 1.0 lbs
• Package Width: 4.0 inches
• Size: 2-1/2 inches
• Suitable For Use With: EMT Conduit
• Type: Compression
• Warranty: 1 Year
