Southwire Company 47604812 Thermostat Cable, Plenum 18 SOL 2/C CU T-STAT CL3P NATURAL GEN 500 FT

Product Description

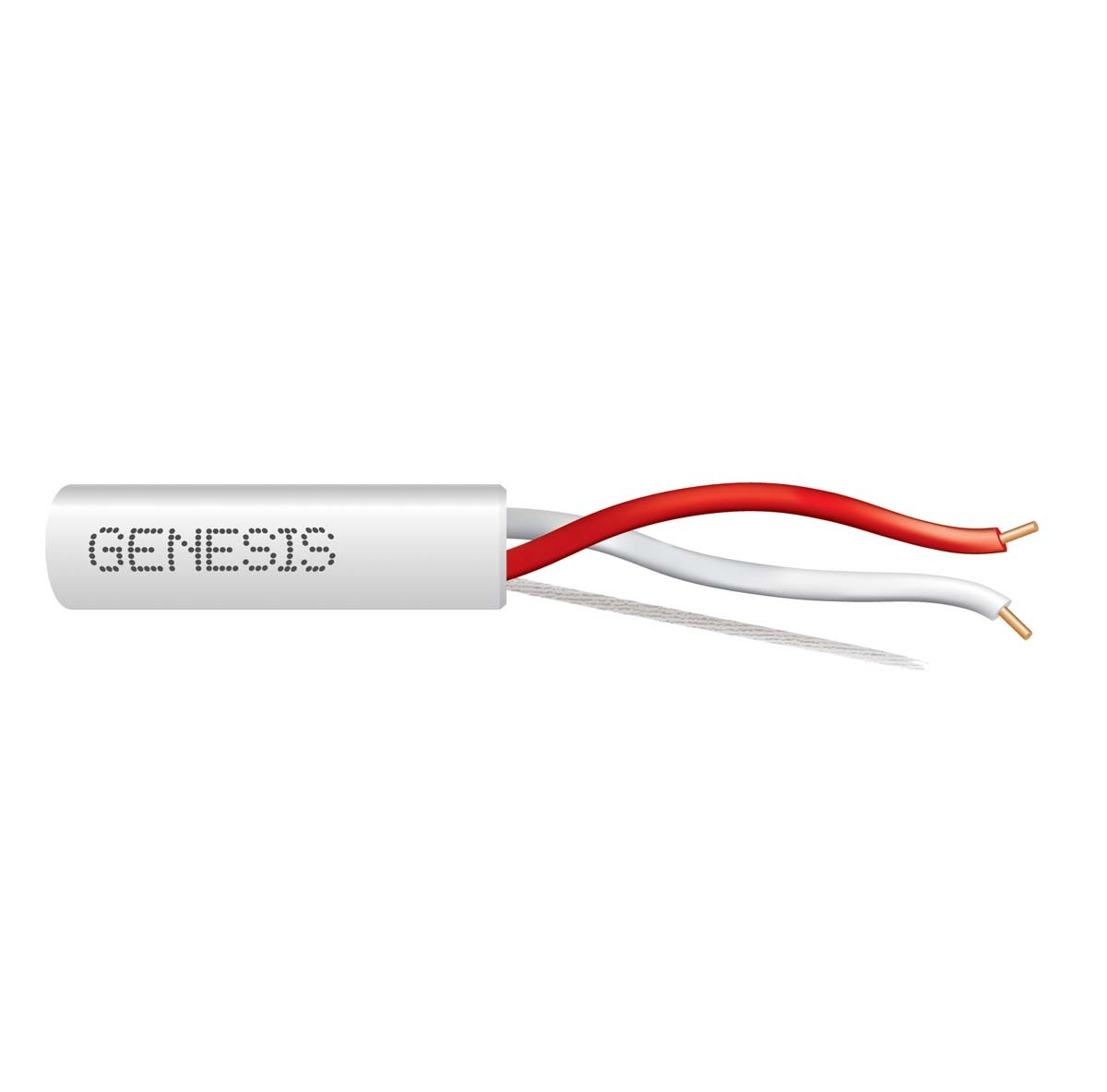

The SOUTHWIRE COMPANY 47604812 Genesis Plenum Rated Thermostat Cable is suitable for installation in fabricated ducts, risers, and within buildings in other than air-handling spaces and risers. This cable features bare copper conductors, low-smoke PVC insulation, and a plenum PVC jacket. It is designed with a durable rip cord for jacket stripping and sequential length marking for easy tracking of usage.

• Bare Copper conductors for excellent conductivity and low voltage drop.
• Low-Smoke PVC insulation.
• Plenum PVC jacket.

Product Highlights

Features bare copper conductors, low-smoke PVC insulation and plenum PVC jacket. Designed with a durable rip cord for jacket stripping and sequential length marking.

Product Information

Standard Information

• Brand: SOUTHWIRE COMPANY
• Manufacturer Part Number: 47604812

Technical Specifications

• Size (AWG or kcmil): 18 AWG
• Size (mm2): 18 AWG
• No. of Conductors: 2
• Stranding: Solid
• Shielding: Unshielded
• Nominal Total Weight (lbs/1000'): 15
• Nominal Total Weight (kgs/km): 23
• Construction: 18 AWG 2C SOL
• Outer Jacket / Armor Color: NATURAL
• Packaging: 4 x 500 FT REEL
• Voltage: 150 Volts
• Operating Temperature: -20 °C to 60 °C
