Southwire/coleman Cable 59007WD In-wall Countdown Timer 15A

Product Description

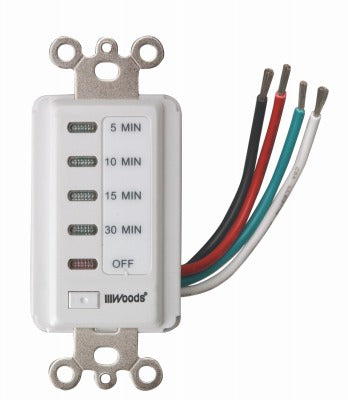

The SOUTHWIRE/COLEMAN CABLE 59007WD is a digital countdown timer switch designed for in-wall installation in standard decorator-style switch plates. Rated at 120 volts, 60 Hz, and 15 amps, it delivers up to 1,875 watts resistive load capacity. The device provides five preset countdown intervals — 5, 10, 15, 30 minutes, and an Off setting — allowing automatic shutoff of connected loads without manual intervention. Electricians install this switch as a direct replacement for standard toggle or decorator switches in single-gang or multi-gang configurations. Its white finish matches common decorator wallplates already in the field.

This timer switch is suited for residential and light commercial indoor applications where timed automatic shutoff improves energy management or ventilation control. Common installations include bathroom exhaust fans, vanity lighting, utility room lights, and similar loads that benefit from timed operation. The unit is compatible with compact fluorescent bulb (CFL) circuits as well as tungsten and ballast loads within rated limits. It is intended for interior dry locations only and is not rated for outdoor or wet environments.

Key Features

• Five preset countdown settings: 5, 10, 15, and 30 minutes, plus Off
• Rated 15A at 120V for up to 1,875 watts resistive load
• Compatible with compact fluorescent bulbs, tungsten lamps, and ballast loads within rated limits
• Fits standard decorator switch plates in single-gang or multi-gang configurations
• Automatic shutoff eliminates the need for manual switch-off
• Indoor in-wall design with white finish to match common decorator hardware

Compatibility

Designed as an OEM-style replacement or new-installation countdown timer switch for standard decorator in-wall switch positions rated at 120V, compatible with resistive, tungsten, ballast, and CFL loads within the specified amperage and wattage ratings.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always shut off the branch circuit breaker and verify the circuit is de-energized with a non-contact voltage tester before beginning any wiring work. The switch requires a neutral wire connection in addition to line and load conductors — confirm neutral availability at the box before ordering. Do not install in outdoor, wet, or damp locations.
