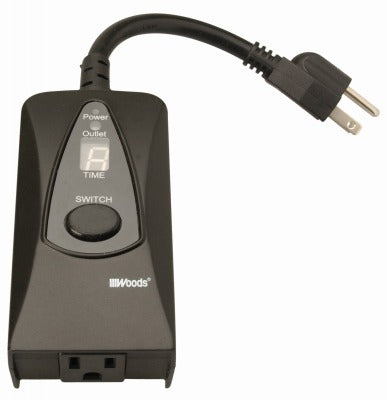

Southwire/coleman Cable 50013WD Outdoor Digital Timer 15A

Product Description

The SOUTHWIRE/COLEMAN CABLE 50013WD is a 24-hour digital outlet timer designed for outdoor use. It controls plug-in loads up to 15 amps and 1875 watts at 125 volts AC, 60 hertz. A built-in photocell light sensor automatically turns connected devices on at dusk and off at dawn, making it well suited for exterior lighting and seasonal displays. Single-button programming keeps setup straightforward. The timer repeats its schedule daily without manual reset. Licensed electricians and experienced DIYers install this unit for residential exterior circuits.

This timer is intended for outdoor patio lighting, security lighting, and seasonal decorative lighting applications. The weatherized housing allows installation in exposed exterior locations. Daily repeat scheduling makes it a reliable choice for any exterior load that needs consistent on/off control without manual intervention. It is rated CSA Certified C/US, confirming compliance with both U.S. and Canadian safety standards.

Key Features

• Built-in photocell automatically activates connected loads at dusk and deactivates at dawn
• Rated 15 amps and 1875 watts at 125 volts AC, 60 hertz resistive load
• 24-hour digital scheduling with daily repeat function
• Single-button programming interface reduces setup time
• Outdoor-rated housing suitable for patio, security, and seasonal lighting
• CSA Certified C/US for U.S. and Canadian installations

Compatibility

Designed as a standard outdoor digital outlet timer suitable for controlling patio lighting, security lighting, and seasonal exterior lighting loads up to 15 amps.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Ensure the connected load does not exceed the 15-amp resistive rating before plugging in. Verify the outlet is properly grounded before use. Do not use with motor loads or other inductive loads unless the product labeling explicitly lists an inductive rating.
