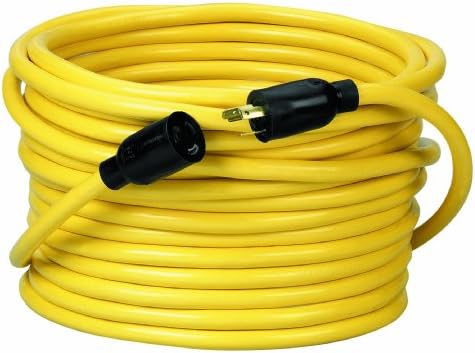

Southwire 9209SW8802 Twist Lock Extension Cord 100 ft, 1 Outlet

Product Description

The SOUTHWIRE 9209SW8802 twist lock extension cord is designed for continuous operation on the jobsite. This heavy-duty, 100-foot, all-copper wire extension cord is recommended for use with heavy-duty equipment and tools. It features a waterproof, flexible vinyl jacket that protects against moisture, abrasion, and sunlight.

• Twist Lock cords for the West Coast Market
• For use in construction and industrial environments where extra protection is needed
• Molded plugs and heavy duty strain relief prolongs the life of the cord

Product Highlights

This 100ft twist lock extension cord is ideal for construction and industrial applications. It features a bright yellow jacket for high visibility and added safety.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 9209SW8802
• Country of Origin: ID

Technical Specifications

• Amps [Nom]: 20 A
• Cable Marking: SJTW
• Conductor Size 1: 12/3 AWG
• Length [Nom]: 100 ft
• NEMA/IEC Configuration: L5-20P to L5-20R
• No. of Outlets: 1
• Operating Temp. [Max]: 140 00b0F
• Operating Temp. [Min]: -40 00b0F
• Resistance: Water; Weather
• Voltage [Nom]: 125 VAC
• Withstanding Voltage: 300 V
• Model #: 9209SW8802
• UPC #: 029892092092
• Product Height: 15.5 inch
• Product Width: 2.75 inch
• Depth: 100.0 inch
• Maximum Amps: 15
• Cord Length: 100 ft
• Gauge: 12/3
• Material: SJTW
• Plug Configuration: NEMA L5-20P
• Wattage: 4500 watts
• Amperage: 15 Amp
• Number of Prongs: 3
• Applications: Generator, Pool Pump
• Conductor Size: 12 AWG
• Number of Conductors: 3
• Temperature Rating: -40 to 140 degrees F
• Voltage: 125 Volt
• Length: 100 Foot
• Connector Gender: Male-to-Female
• Plug Type: Type B
• Input Current: 15 Amps
• UL Listed: Yes
• Category: Extension Cords, Reels and Strips
• Country of Origin: USA
