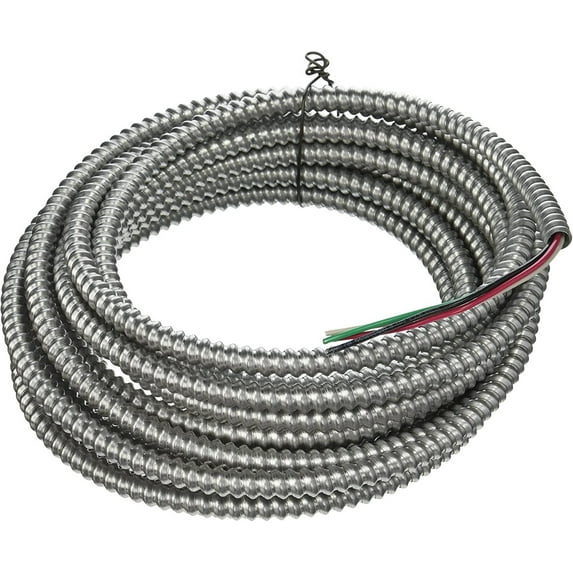

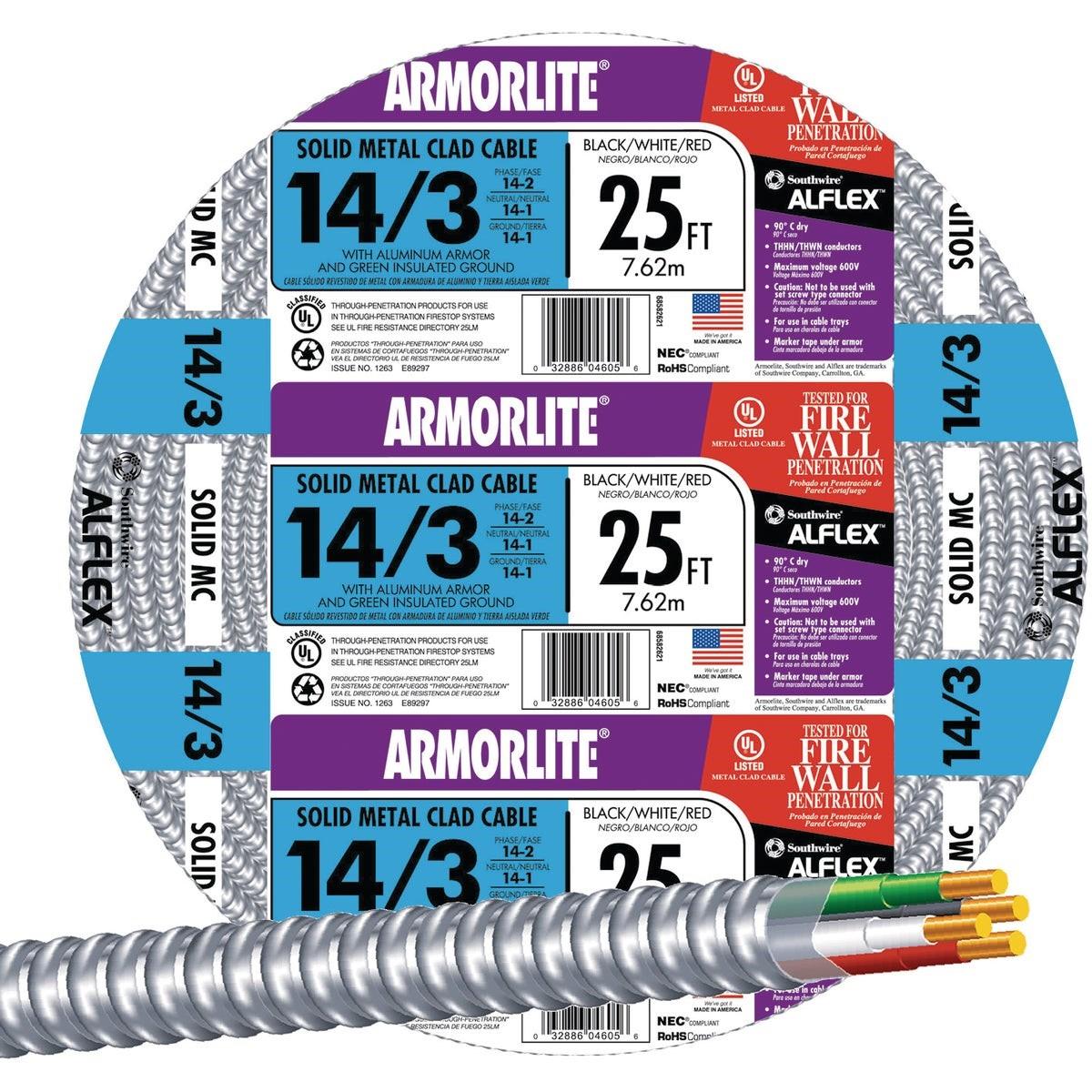

Southwire 68582621 mc armored cable electrical wire 25 ft

Product Description

The Southwire 68582621 MC Armored Cable Electrical Wire is suitable for branch, feeder, and service power distribution in commercial, industrial, institutional, and multi-residential buildings. It is designed for power, lighting, control, and signal circuits in concealed or exposed installations.

• Suitable for wet or dry locations

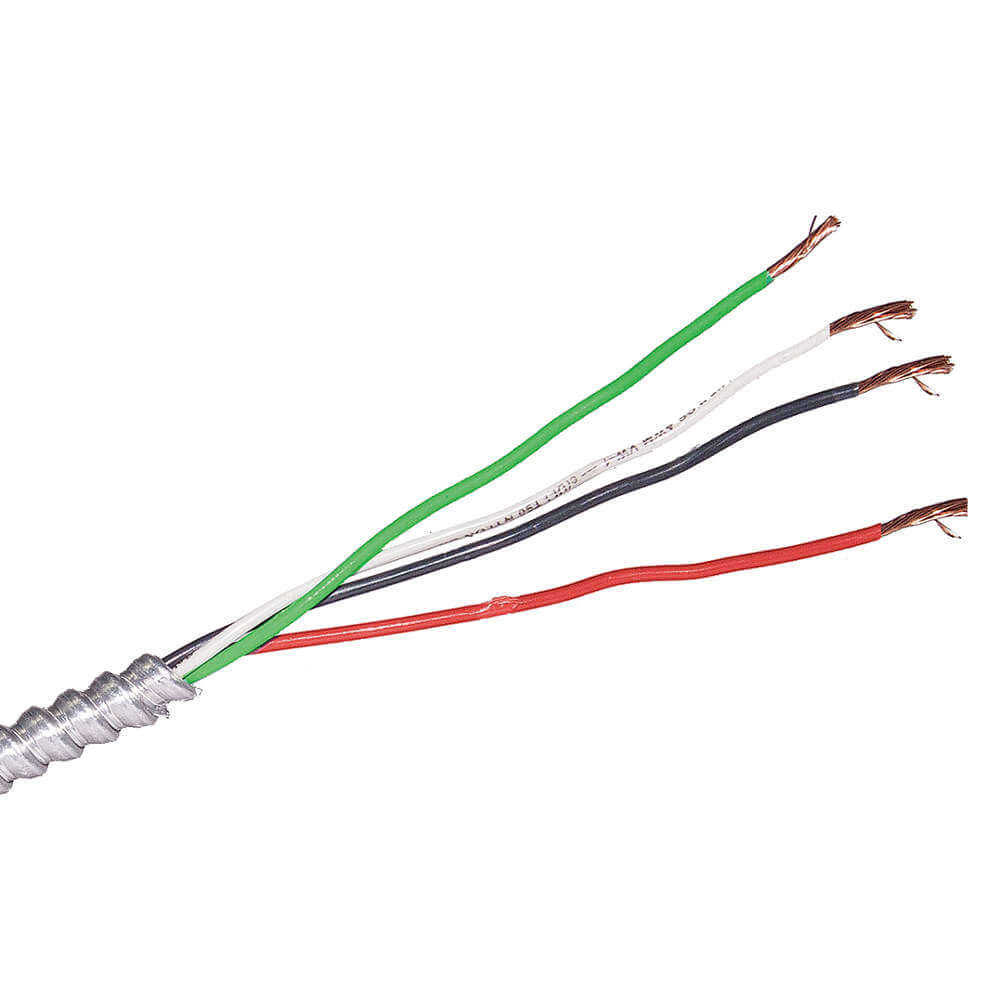

• Features THHN/THWN conductors rated to 90 Degrees C
• Constructed with soft-drawn copper

Product Highlights

This metal clad cable is ideal for indoor use and meets UL standards for safety and performance.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 68582621
• Country of Origin: US

Technical Specifications

• Brand: Southwire
• MPN: 68582621
• UPCCode: 00032886046056
• UOM: Each
• Country: US
• Wire Type: MC
• Gauge: 14 ga
• Description: Southwire 68582621 14/3 Awg, Thhn Black/White/Red/Green Aluminum Mc, 25 Ft
• Max Voltage: 600 V
• Length: 25 ft
• For Use With: Wet or Dry
• Package Type: Coil
• Heat Capacity: 90 Degrees C
• Number of Conductors: 3 with Ground
• Wire Type Description: Metal Clad
• Manufacturers Part Number: 68582621
• Max. Amps: 15
• Standards: UL 83, 1569, 1685, NEC Article 330, Federal Specification A-A59544 (Formerly J-C-30B), FT4/IEEE 1202, Vertical Cable Tray Flame Test, Listed for Use In UL 1, 2 and 3 Hour Through Penetration Firestop Systems
• Wire Size: 14 AWG
• Wire Color: Black/Green/Red/White
• Application: Indoor
• Jacket Material: Aluminum
• Insulation Material: PVC
• Nominal Outside Dia: 0.464 in
• Conductor Design: Solid
• Stranded Solid: Solid
• Trade Designation: MC
• Temp Rating: -14 Degrees to 90 Degrees C Dry
• Cable Type Wire and Cable: MC
• Jacket Material Wire and Cable: Aluminum
• Size Awg: 14
• No of Strands: 1
• Insulation Thickness Mils: 15mils
• Nom Od Mils: 478mils
