SOUTHWIRE Southwire 655SIRT Raintight Steel Insulated Compression Connector (1-1/2 in)
SOUTHWIRE Southwire 655SIRT Raintight Steel Insulated Compression Connector (1-1/2 in)

Southwire 655SIRT Raintight Steel Insulated Compression Connector (1-1/2 in)

SOUTHWIRE
Brand: SOUTHWIRE
SKU: 655SIRT
Availability: In Stock

Ships same day if ordered by 12 pm

$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

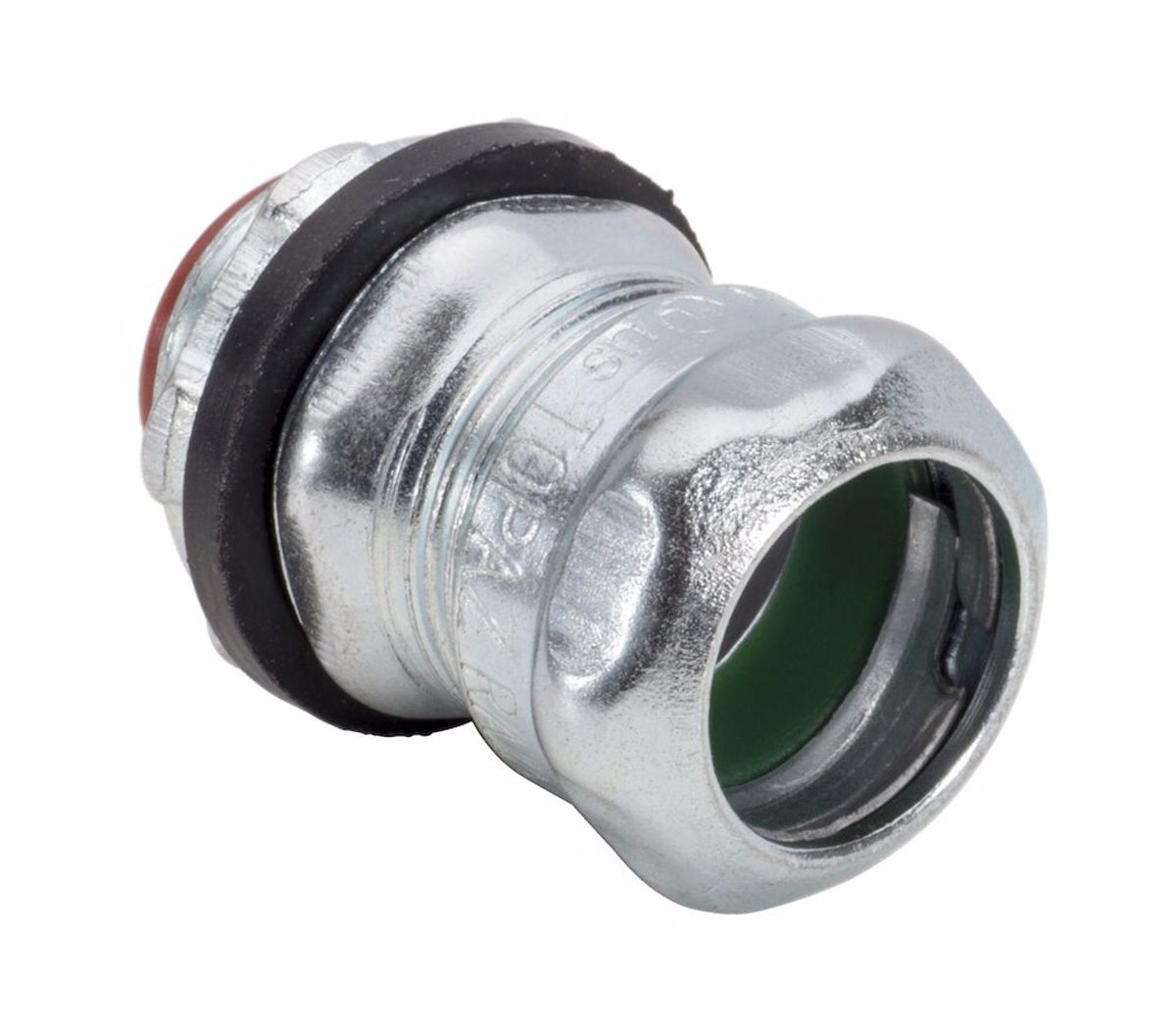

Southwire 655SIRT is a 1-1/2 inch raintight steel insulated compression connector designed for joining or terminating EMT conduit to boxes and enclosures. The compression-style connector includes an insulated throat and is assembled with a steel locknut and gasket to provide concrete-tight and raintight protection for commercial, industrial, and residential raceway fittings. The connector is threaded and constructed of zinc-plated steel to support secure attachment and corrosion resistance.

  • Compression-type connector for secure EMT conduit termination; threaded design for attachment
  • Concrete-tight and raintight construction assembled with steel locknut and gasket
  • Insulated throat with zinc-plated steel body for corrosion resistance

Product Highlights

1-1/2 in trade size; steel, zinc-plated construction; insulated throat; concrete-tight and raintight; suitable for EMT conduit to box/enclosure

Product Information

Standard Information

  • Brand: SOUTHWIRE
  • Manufacturer Part Number: 655SIRT
Technical Specifications
Brand
Southwire
MPN
655SIRT
Product name
Raintight steel insulated compression connector
Connector type
Compression
Size
1-1/2 in (trade size)
Material
Steel
Finish
Zinc-plated
Throat
Insulated throat
Assembly
Assembled with steel locknut and gasket
Environmental rating
Concrete-tight and raintight
Conduit type
EMT
Threaded
Yes
Dimensions
Diameter 1.062 in x Length 1.717 in
Suitable for
EMT conduit to box/enclosure
Standards/approvals
UL 514B; UL File No. E170258; cULus File No. E18472; CSA certified; US Federal Specification No. A-A-50553; NEMA/ANSI FB-1; Military specifications W-F-406D/W-F-406E/W-F-408D/W-S-610D
UPC
751338830103
Category
Commercial, Industrial, Residential fittings
