Southwire 637 Zinc EMT Set Screw Connector (2-1/2\")

Product Description

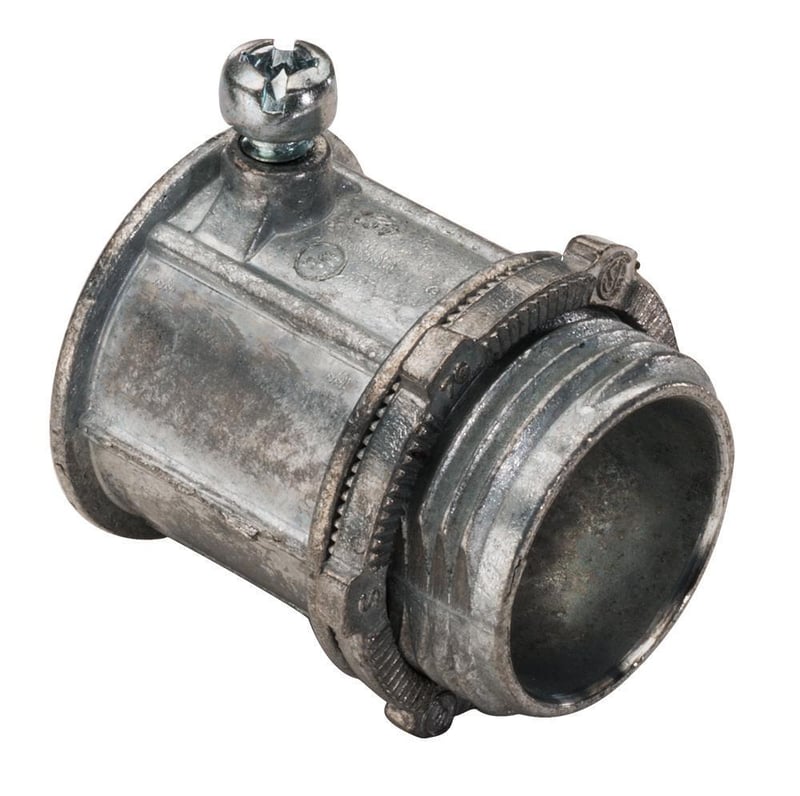

The Southwire 637 is a 2-1/2 inch zinc die-cast EMT set screw connector used to bond EMT or rigid conduit to electrical boxes or enclosures. It provides concrete-tight protection when taped and is suitable for dry-location conduit installations. The connector is UL listed and NEMA/ANSI FB-1 compliant, and is constructed for corrosion resistance and long service life.

• Set screw type assembly secures EMT and rigid conduit to boxes or enclosures
• Provides concrete-tight protection when taped for dry-location installations
• Die-cast zinc construction for corrosion resistance; UL listed and NEMA/ANSI FB-1 compliant

Product Highlights

2-1/2 in zinc die-cast EMT set screw connector; concrete-tight when taped; UL listed and NEMA/ANSI FB-1 compliant

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 637
• Country of Origin: China

Technical Specifications

• Brand: Southwire
• Manufacturer Part Number: 637
• Trade Size: 2-1/2 in
• Material: Zinc die cast
• Weight: 0.85 lb
• Connector Type: Set screw
• Insulation: Bare
• For Use With: EMT and rigid conduit to box/enclosure
• Dimensions (L x W x H): 3.08 in x 0.92 in x 3.72 in
• Diameter: 3.22 in
• Standards: UL listed; NEMA/ANSI FB-1
• Category: EMT Non-Insulated Set Screw Connectors
• Country of Origin: China
• UPC: 751338163508
