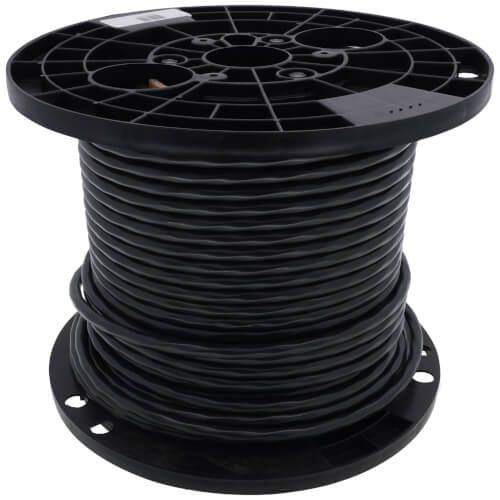

Southwire 58225703 Stranded Bare Copper Mini Split Cable 14/4 250 ft.

Product Description

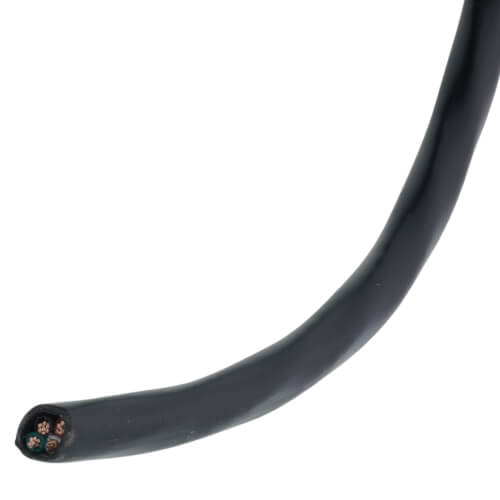

The Southwire 58225703 stranded bare copper mini split cable is a 14/4 cable option that is flexible and reliable for electrical applications. This cable has a diameter of five hundred fifty-three mils and is designed with fifteen mils of PVC insulation, offering durability and protection. It features a nylon jacket that is forty mils thick, making it suitable for both indoor and outdoor use in wet locations. This cable is rated for six hundred volts and can be installed directly in the ground without additional conduit, meeting the requirements for hazardous locations.

• 250 feet in length
• 7 stranded conductors for increased flexibility
• Direct burial compatible

Product Highlights

This cable is ideal for various installation types, including mini split systems and other electrical setups where versatility and reliability are necessary.

Product Information

Standard Information

• Brand: Southwire
• MPN: 58225703

Technical Specifications

• Length: 250 feet
• Wire Type: Mini-Split Cable
• Conductors: 4
• AWG: 14
• Voltage Rating: 600 Volt
• Jacket Thickness: 40 mil
• Outside Diameter: 553 mil
• Conductor Material: Bare Copper
• Insulation Material: PVC
• Insulation Thickness: 15 mil
• Temperature Rating: 90 deg C Dry, 75 deg C Wet
• Standards: UL 1569, ASTM B3, B787, NEC/NFPA 70, RoHS Compliant
