Southwire 58225703 Mini-Split Tray Cable 600V 250 feet

Product Description

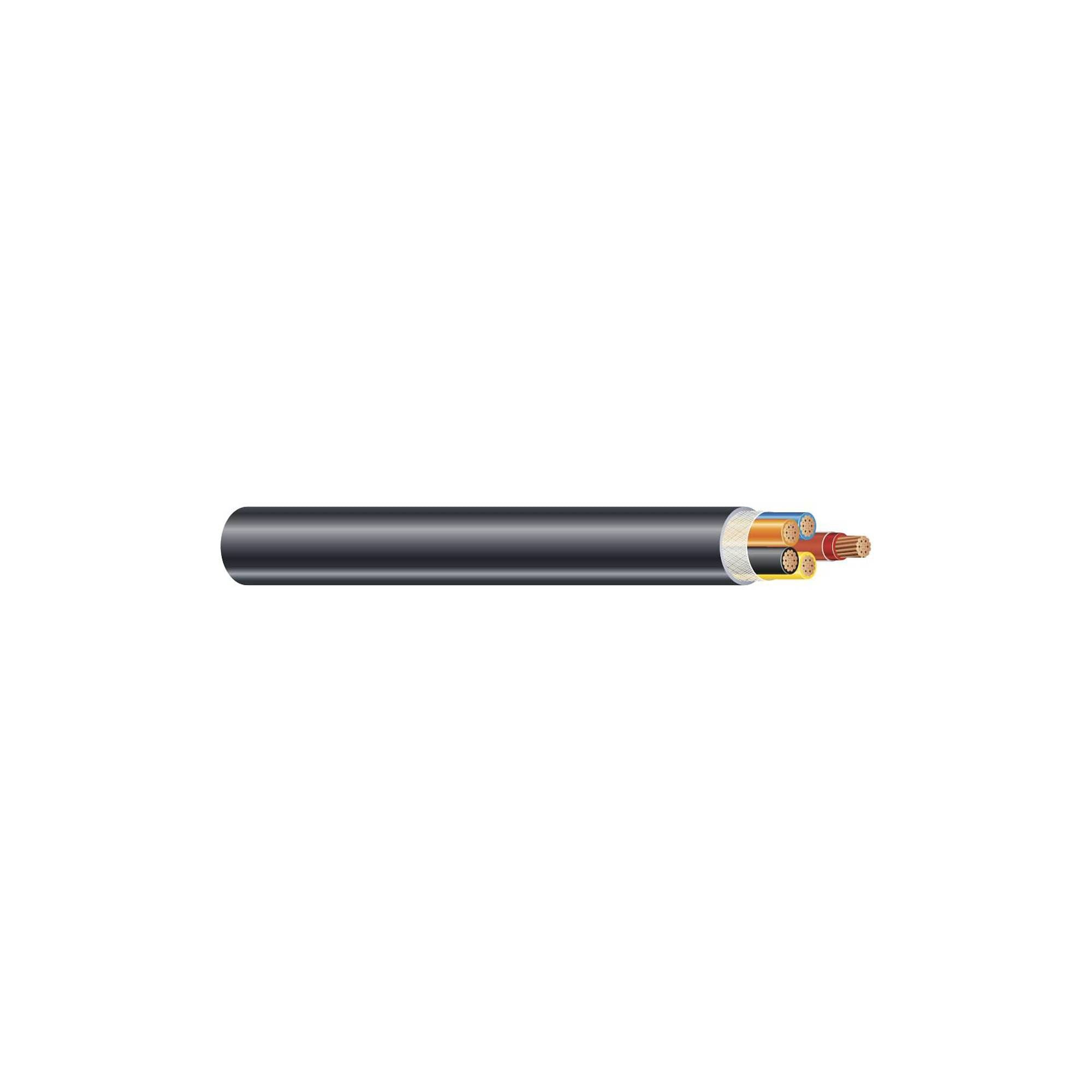

The SOUTHWIRE 58225703 Mini-Split Tray Cable is a 14 AWG, 4-conductor stranded cable designed for mini-split applications. This 600V cable features Polyvinyl Chloride (PVC) insulation and a Nylon jacket, offering durability and UV resistance. It is UL Listed and suitable for both wet and dry locations, including direct burial, and can be installed without conduit. The 250-foot coil length provides ample reach for various installations.

• Stranded cable type with 14 AWG wire gauge and 4 conductors.
• Features Polyvinyl Chloride (PVC) insulation and a Nylon jacket for protection.
• UL Listed, UV Resistant, and suitable for wet/dry locations and direct burial.

Product Highlights

This 600V, 14/4 AWG stranded mini-split tray cable is UL Listed, UV resistant, and designed for versatile indoor/outdoor installations.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 58225703
• Country of Origin: USA

Technical Specifications

• Cable Type: Stranded

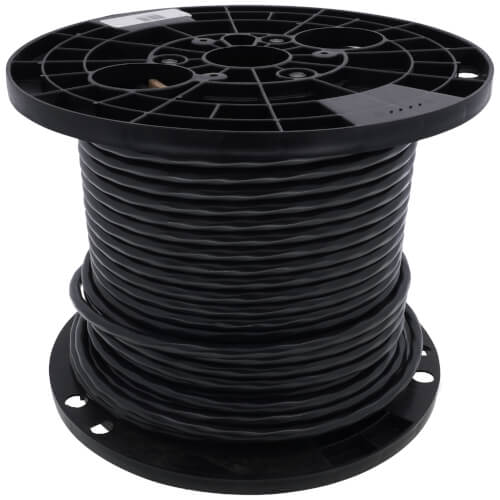

• Coil Length: 250'
• CUL Listed: No
• Flame/Smoke Rating: UL 1581
• Insulation Type: Polyvinyl Chloride (PVC)
• Jacket Material: Nylon
• Temperature Rating: Dry: 194°F (90°C), Wet: 167°F (75°C)
• UL Listed: Yes
• UV Resistant: Yes
• Wire Gauge: 14 AWG
• Wire Type: Mini Split
• Voltage: 600V
• Number of Conductors: 4
• Product Type: ELECTRONIC_WIRE
• Type: Tray Cable
• Conductor Strands: 7
• Diameter Over Conductor (in): 0.070
• Diameter Over Conductor (cm): 0.18
• Insulation Thickness (mils): 20
• Insulation Thickness (mm): 0.51
• Jacket Thickness (mils): 45
• Jacket Thickness (mm): 1.14
• Approximate Outer Diameter (in): 0.351
• Approximate Outer Diameter (cm): 0.89
• Copper Weight (lbs/1000ft): 51
• Copper Weight (kg/km): 76
• Approximate Weight (lbs/1000ft): 93
• Approximate Weight (kg/km): 138
• DC Resistance at 25C (ohms/1000ft): 2.631
• DC Resistance at 25C (ohms/km): 3.92
• AC Resistance at 75C (ohms/1000ft): 3.170
• AC Resistance at 75C (ohms/km): 4.72
• Minimum Bend Radius (in): 1.4
• Minimum Bend Radius (cm): 3.56
• Allowable Ampacity Raceway (75C): 16
• Allowable Ampacity Raceway (90C): 20
• Conductor Construction: Solid or stranded bare copper per ASTM B3 or B8
• Insulation Construction: Polyvinyl Chloride PVC with Nylon sheath
• Filler Construction: Polypropylene filler
• Binder Construction: Polyester flat thread binder tape
• Overall Jacket Construction: Polyvinyl Chloride (PVC) Jacket
• Standard (ASTM B3): Soft or Annealed Copper Wire
• Standard (ASTM B8): Concentric-Lay-Stranded Copper Conductors
• Standard (UL 83): Thermoplastic Insulated Wire and Cables (sizes 14 AWG to 1000 kcmil)
• Standard (UL 1277): Electrical Power and Control Tray Cables
• Standard (RoHS-3): Complies with European Directive 2015/863
• Construction Type: 14 AWG 4C 7 STR
• Conductor Material: Copper
