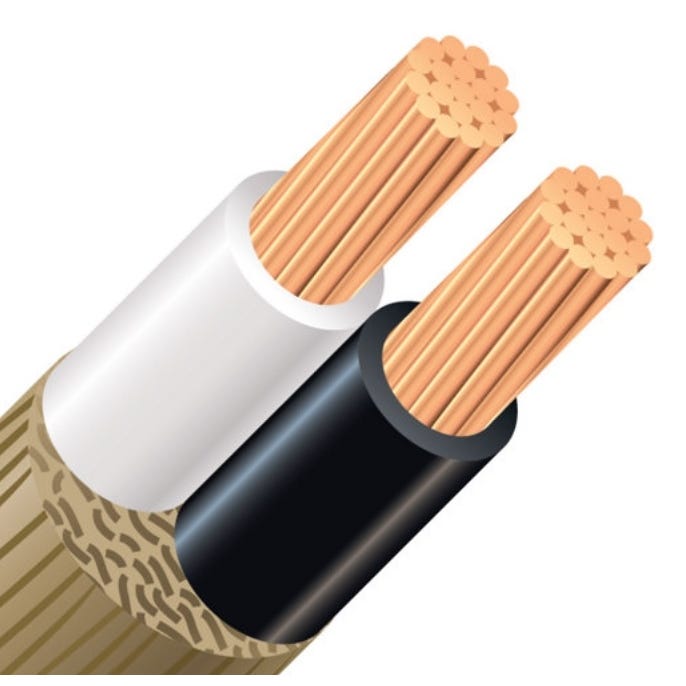

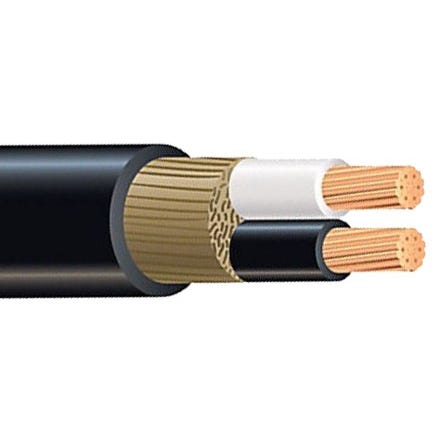

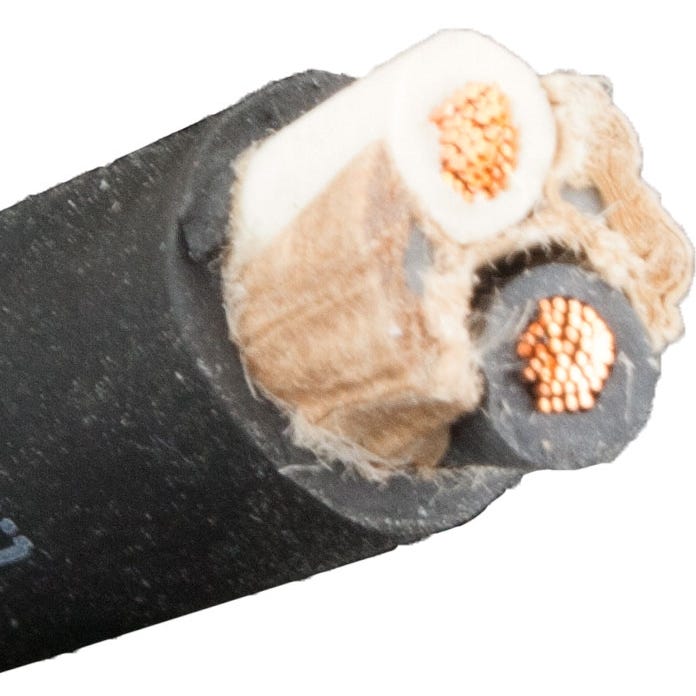

Southwire 55812101 14-41 cu 2/c sjoow 300v 250sp

Product Description

The Southwire 55812101 is a 14-41 CU 2/C SJOOW wire designed for extra hard usage on industrial equipment, heavy tools, and portable lights. This cable is constructed with a CPE jacket and EPDM insulation. It is oil, water, and weather resistant and suitable for use in marine dockside power and mining applications.

• UL/ CSA listed are permitted for use as specified by Article 400 and related articles of the 2014 National Electrical Code.
• Rated -40°C to 105°C, water, oil, and weather resistant.
• Designed for extra hard usage on industrial equipment, heavy tools, battery chargers, portable lights, welding leads, marine dockside power, power extensions and mining applications.

Product Highlights

This Southwire SJOOW flex cord is ideal for industrial and heavy-duty applications requiring a durable and flexible power cable.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 55812101
• Country of Origin: United States

Technical Specifications

• Catalog Number: 55812101
• Manufacturer: Southwire
• Brand: Southwire
• Sub Brand: Royal®
• Country of Origin: United States
• Made in USA: Yes
• Application: FLEXCORD
• Conductor Material: Copper
• Conductor Size: 14 AWG
• Construction: CPE JACKET
• Core: 14
• Insulation: EPDM
• Number of Conductors: 2
• Standard: UL62
• Number of Strands: 41
• UPC: 032886092107
• GTIN: 00032886092107
• Item Type: SJOOW

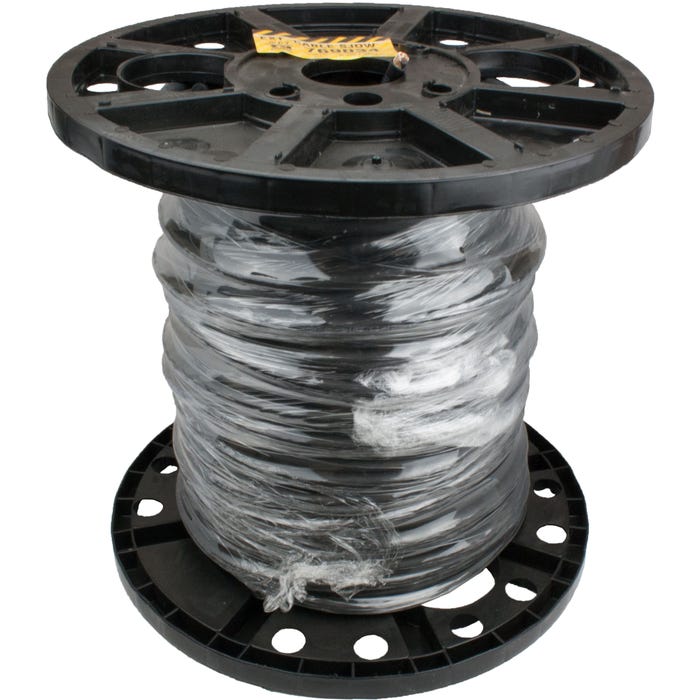

• Length: 250 Foot
• Outside Diameter: 0.34"
• Temperature Rating: 90C
• Voltage Rating: 300 V
• Size (mm2): 14 AWG
• Nominal Outer Diameter (mils): 343
• Nominal Outer Diameter (mm): 8.71
• Nominal Total Weight (lbs/1000'): 73
• Nominal Total Weight (kgs/km): 108
• Conductor Colors: BLACK/WHITE
• Stranding: 41/30 STRANDS
• Approval: UL 62, CSA 22.2
• Insulation Material: EPDM RUBBER
• Color Code: BLACK, WHITE
• Jacket Material: CPE
• Package Type: CARTON
• Jacket Color: BLACK
• RoHS Compatible: Yes
• Applicable Standard: NEC, FEDERAL SPECIFICATION J-C-580B
• Cord Type: SJOOW
• Conductor Stranding: 41/30
• Temperature Rating - min: -40 deg C
• Temperature Rating - max: 90 deg C
• Nominal OD: 0.340" (8.6mm)
• Package Length - feet: 250 ft.
