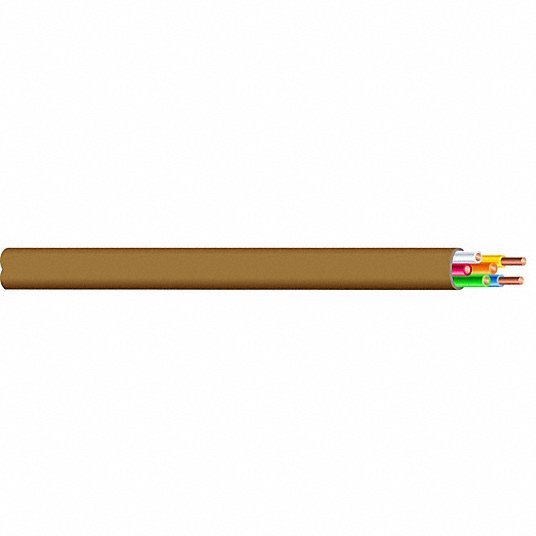

SOUTHWIRE 553065407 Thermostat Wire 18 AWG 6 Conductors 250 ft

Product Description

The SOUTHWIRE 553065407 thermostat wire is designed for installation in non-air-circulating spaces. This wire features six solid copper conductors, PVC insulation, and a PVC jacket. It is rated for one hundred fifty volts and comes in a two hundred fifty-foot coil. Common uses include connecting thermostat controls to main power circuits in commercial buildings.

• 6 solid copper conductors
• PVC insulation and jacket
• Rated for 150V

Product Highlights

This product is suitable for thermostat applications and complies with necessary standards for safety and performance.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 553065407

Technical Specifications

• Voltage: 150 V
• Overall Length: 250 ft
• Jacket Material: PVC
• Packaging: Coil
• Number of Conductors: 6
• Conductor Size: 18 AWG
• Conductor Material: Copper
• Conductor Design: Solid
• Temperature Rating - Maximum Dry: 140 °F
• Nominal Outside Diameter: 0.19 inches
