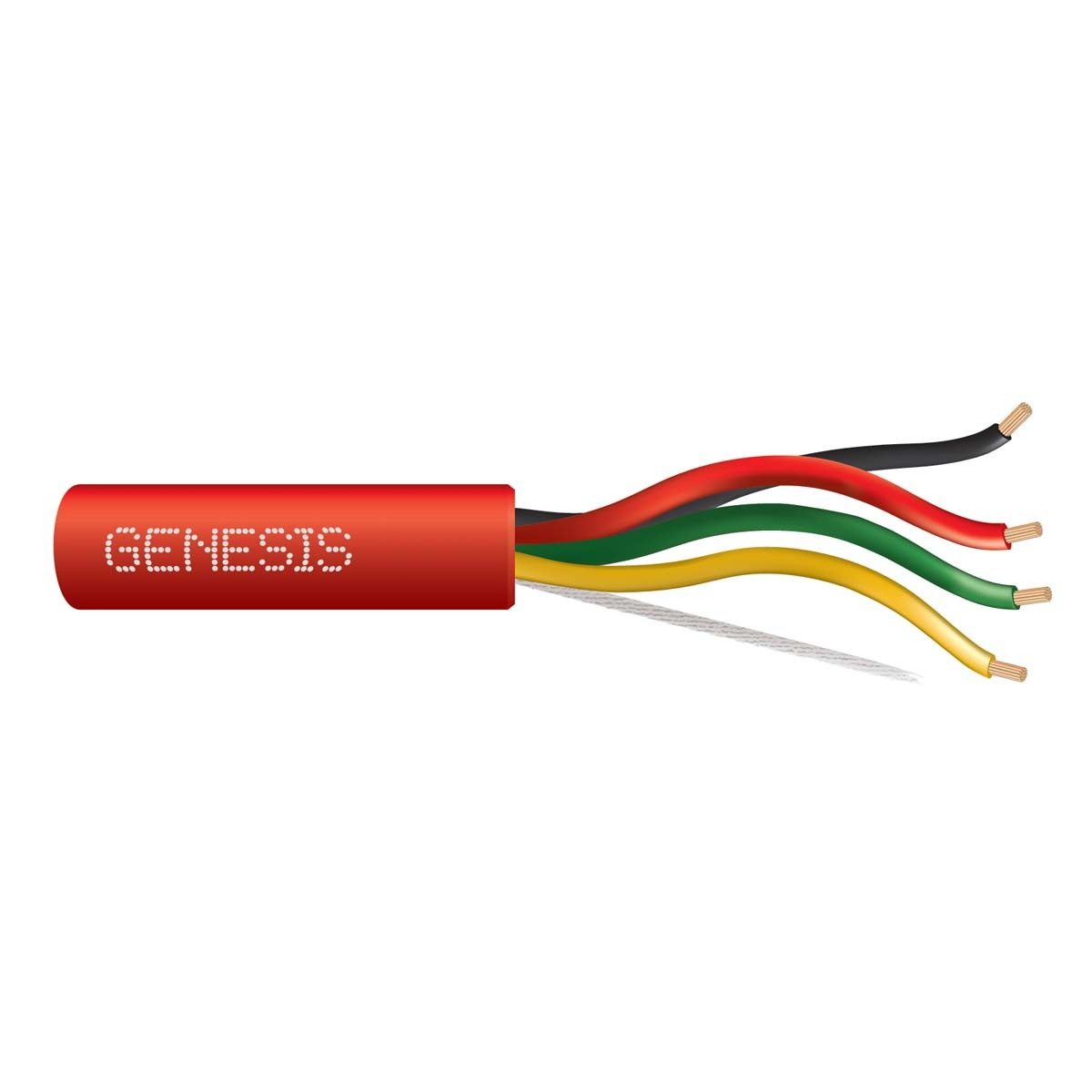

Southwire 45271004 Genesis plenum fire alarm cable 300 Volt (14 AWG 4 conductor 1000 ft) 45271004

Product Description

Southwire 45271004 is a Genesis GEN17 plenum-rated unshielded fire alarm cable for fire alarm, security, and life safety systems. It has 14 AWG, 4 stranded bare copper conductors with low-smoke PVC insulation and a plenum PVC jacket, rated 300 Volts and temperature-rated -20 °C to 75 °C. The cable includes a rip cord and Countdown length markings and meets NFPA 262, CSA C22.2 No. 2556 (FT6), UL 1424 (FPLP), and UL 13 (CL3P).

• 14 AWG, 4 conductor stranded bare copper with low-smoke PVC insulation and plenum PVC jacket
• Rated 300 Volts; temperature range -20 °C to 75 °C; nominal weight 65 lbs per 1000 ft
• Plenum rated (FPLP/CL3P); meets NFPA 262, CSA C22.2 No. 2556 (FT6), UL 1424, UL 13; includes rip cord and Countdown length markings

Product Highlights

GEN17 plenum-rated 14 AWG 4-conductor unshielded fire alarm cable, 1000 ft, rated 300 V.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 45271004
