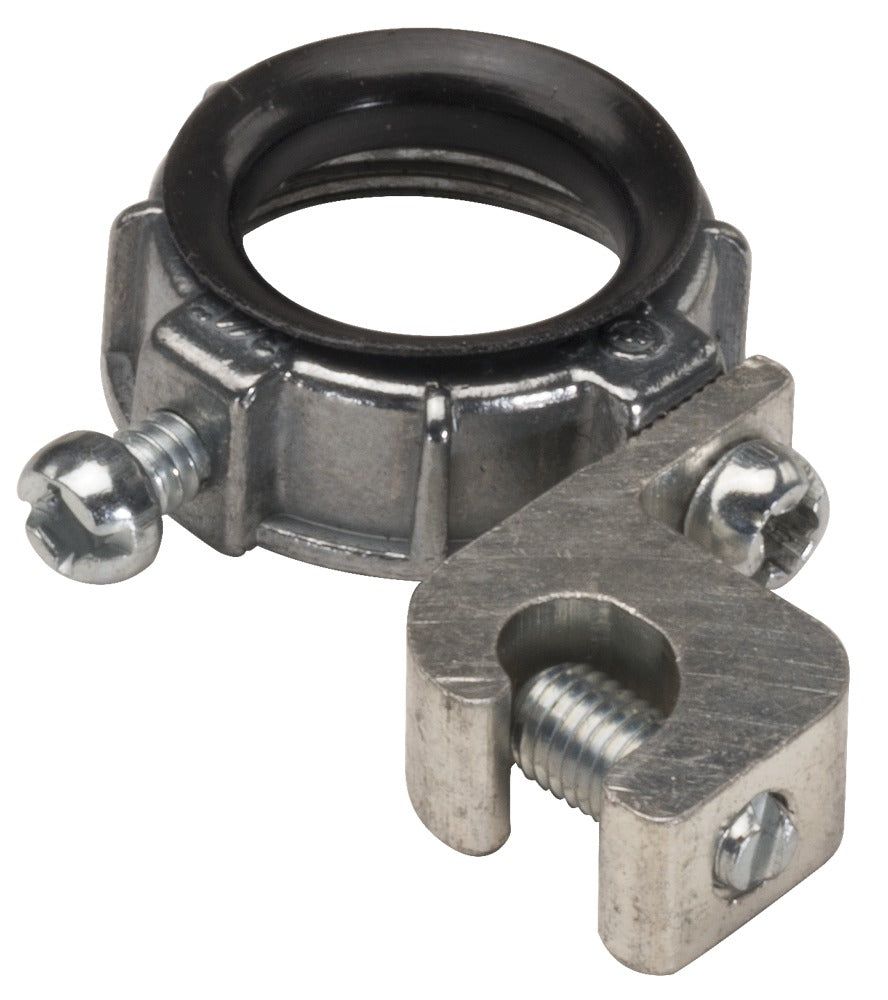

Southwire 332 TOPAZ-LTG 3/4 IN RGD BSHGS -ZINC DIE CAST

Product Description

The Southwire 332 Topaz-LTG is a female threaded ground bushing designed for use in electrical grounding applications. This product supports both copper and aluminum wires and accommodates wire sizes ranging from fourteen to four AWG. The bushing features a diameter of one and a half inches and is constructed from die cast zinc. This ensures durability and resistance to corrosion.

• Accommodates minimum wire size of fourteen AWG and maximum wire size of four AWG.
• Insulated throat helps prevent insulation damage.
• UL listed for safety with grounding conductors.

Product Highlights

Designed for service conduit termination with included aluminum lay-in lug, this bushing's rounded surface prevents damage to wire insulation. Suitable for rigid and IMC conduit.

Product Information

Standard Information

• Manufacturer: Southwire Company
• Material: Die Cast Zinc

Technical Specifications

• Type: Female Threaded
• Diameter: One and a half inches
• Height: One half inch
• Trade Size: Three fourths inches
• Throat: Insulated
• Lug Type: Aluminum Lay-In
• Application: For copper/aluminum bare ground connector, rigid, IMC conduit
• Standards/Approvals: CSA Certified, UL 514B, UL File No. E17025, US Federal Specification A-A-50552, NEMA/ANSI FB-1, Military Specification W-F-406D/W-F-406E/W-F-408D/W-S-610D
