Southwire 32170112 Multiconductor Shielded Cable, Plenum 250Ft. Reel

Product Description

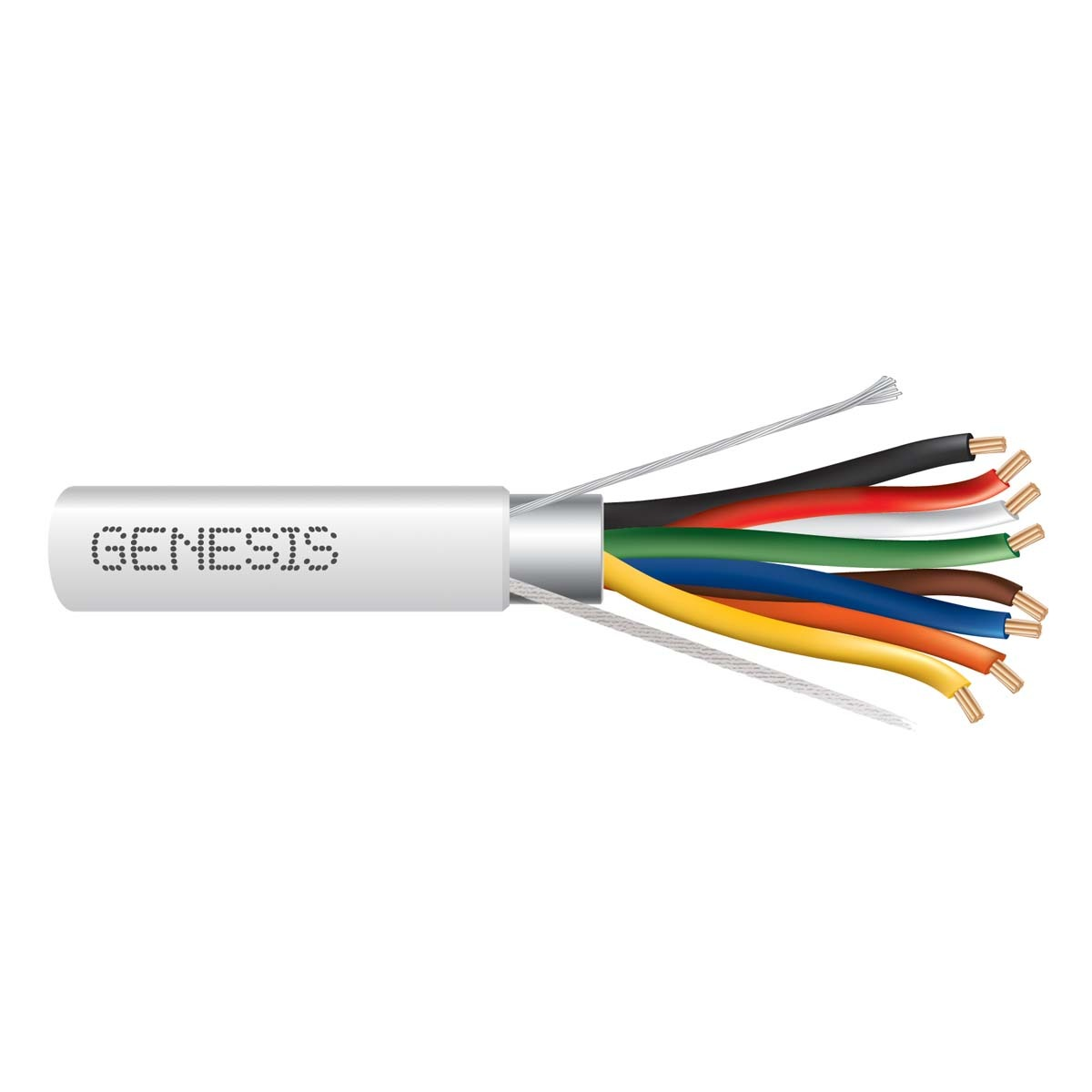

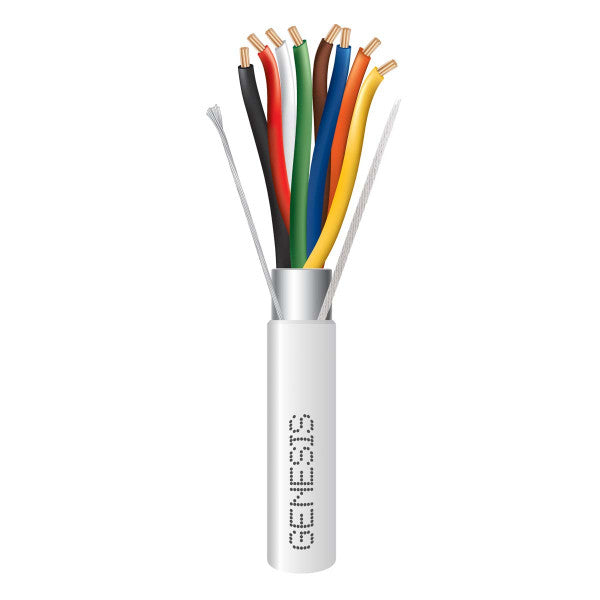

The SOUTHWIRE 32170112 Genesis Plenum Rated Shielded Multiconductor Cable is suitable for installation in fabricated ducts, environmental air spaces, and risers. Features bare copper conductors, low-smoke PVC insulation and a foil shield over all conductors. It has a plenum PVC jacket and a durable rip cord for jacket stripping. Rated for 300 Volts and -20 °C to 75 °C.

• Bare Copper conductors for excellent conductivity and low voltage drop.
• Low-Smoke PVC insulation.
• Foil shield over all conductors.

Product Highlights

Shielded multiconductor cable with plenum rating, suitable for security, controls, audio, and other low-voltage applications.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 32170112

Technical Specifications

• Size (AWG or kcmil): 18 AWG
• No. of Conductors: 8
• Stranding: Stranded
• Shielding: Shielded
• Nominal Total Weight (lbs/1000'): 57
• Nominal Total Weight (kgs/km): 85
• Product Type: 18/8 Wire

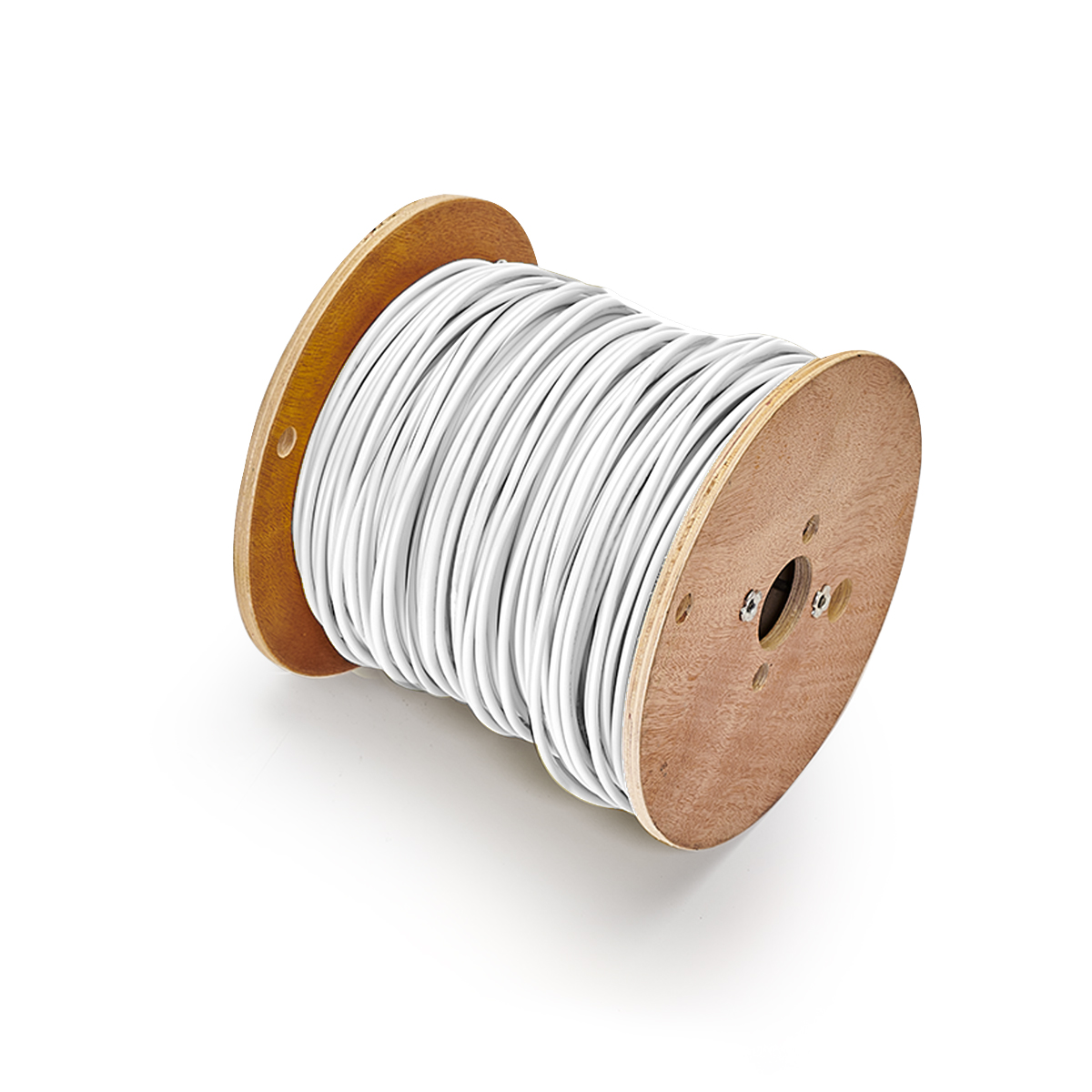

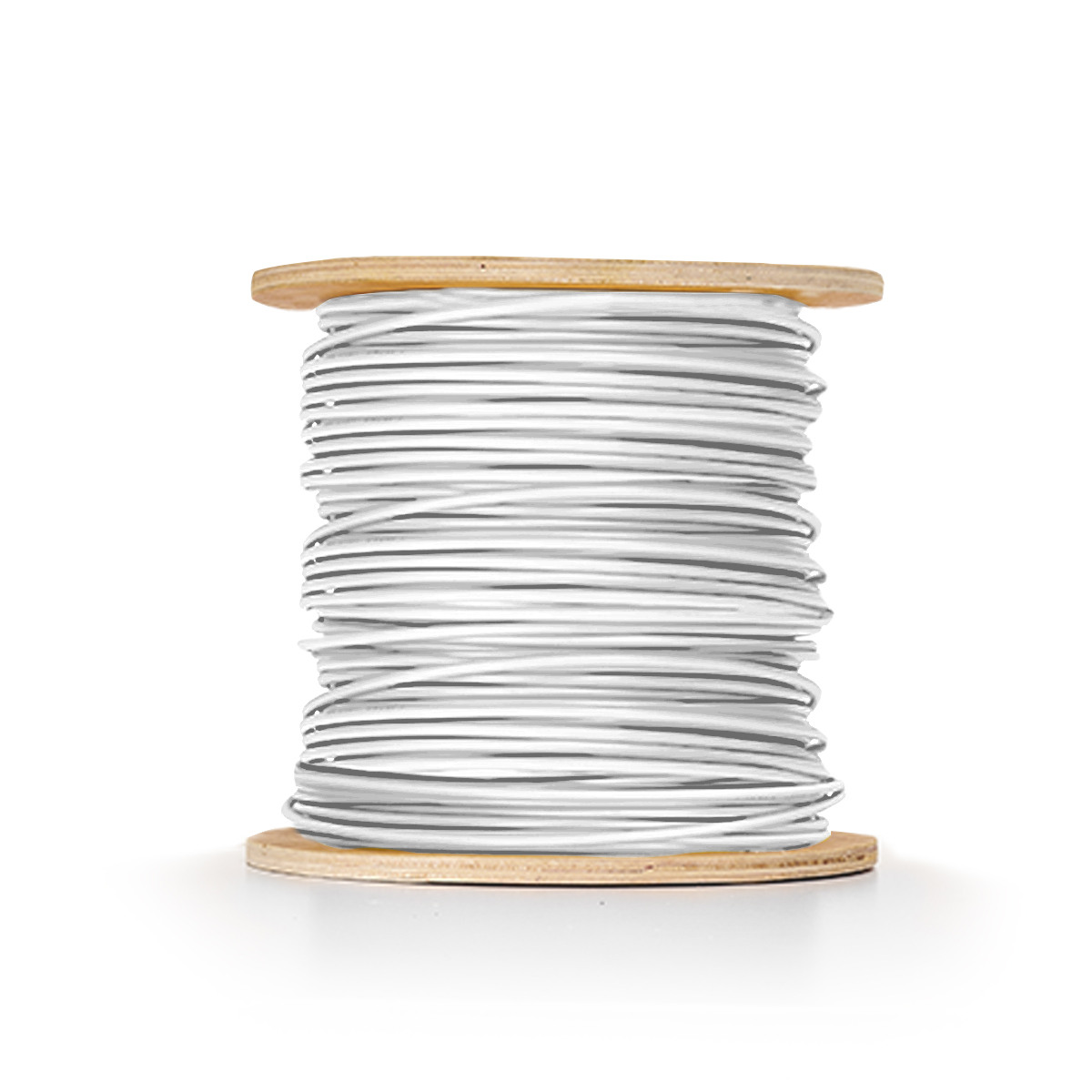

• Length: 250Ft.
