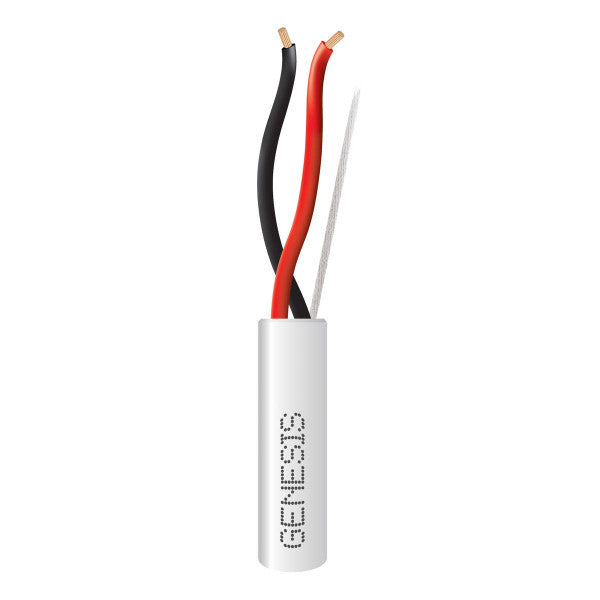

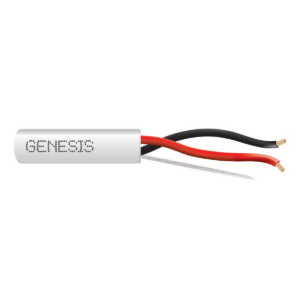

Southwire 31145512 Multiconductor Unshielded Cable, Plenum 18 AWG 2C 500 FT

Product Description

The SOUTHWIRE 31145512 is a Genesis Plenum Rated Unshielded Multiconductor Cable designed for various installations including fabricated ducts, environmental air spaces, and risers. This 18 AWG, 2-conductor cable features bare copper conductors for efficient conductivity and low voltage drop. It is insulated with low-smoke PVC and protected by a plenum PVC jacket, ensuring durability and safety. Rated for 300 Volts and temperatures from -20 °C to 75 °C, it is suitable for security, controls, and other low-voltage applications.

• Suitable for installation in fabricated ducts, environmental air spaces, and risers.
• Features bare copper conductors, low-smoke PVC insulation, and a plenum PVC jacket.
• Rated for 300 Volts and temperatures from -20 °C to 75 °C.

Product Highlights

Plenum rated unshielded multiconductor cable with bare copper conductors for low-voltage applications.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 31145512

Technical Specifications

• AWG Size: 18 AWG
• Number of Conductors: 2
• Stranding: Stranded
• Shielding: Unshielded
• Nominal Total Weight (lbs/1000ft): 16
• Rated Voltage: 300 Volts
• Rated Temperature: -20 °C to 75 °C
• Standards: NFPA 262 - Plenum Rated, CSA C22.2 No. 2556 - FT6 Rated, UL 444 - Communication Cables (Type CMP), UL 1424 - Cables for Power-Limited Fire-Alarm Circuits (Type FPLP), UL 13 - Power-Limited Circuit Cables (Type CL3P), REACH/RoHS Compliant
• Product Type: 18/2 Wire
• Color: Natural
• Length: 500 ft
• Rating: Plenum
• Manufacturer: Genesis Cable Systems (Southwire)
• Application: Security & Control, Fire Alarm, Life Safety Systems
