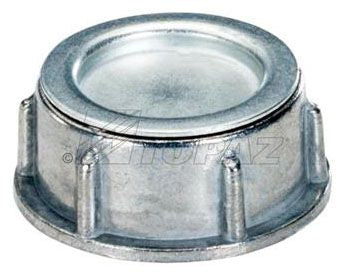

Southwire 307CB 2.5 Inch Rigid Capped Bushing

Product Description

The SOUTHWIRE 307CB is a 2.5 inch rigid capped bushing designed for use in conduit raceway systems. This fitting protects wire and cable insulation from abrasion at conduit terminations where a threaded hub or locknut connection is used. The capped design covers the end of the conduit opening, guarding conductors as they enter or exit the conduit. It is sized for 2.5 inch rigid conduit trade size and is installed by licensed electricians during rough-in and finish electrical work on commercial and industrial conduit systems.

This bushing is suited for rigid metal conduit installations in commercial buildings, industrial facilities, and other applications where conduit systems terminate at enclosures, panels, or junction boxes. The 2.5 inch trade size accommodates larger conductor bundles common in feeder and branch circuit runs. Electricians use this fitting wherever a clean, protected conduit end is required at a box or enclosure entry point.

Key Features

• 2.5 inch trade size fits standard rigid metal conduit
• Capped bushing design protects conductors from insulation damage at conduit ends
• Threaded fitting for secure attachment to rigid conduit terminations
• Suitable for commercial and industrial conduit raceway installations

Compatibility

Designed as an OEM-style replacement fitting for 2.5 inch rigid metal conduit termination applications in standard commercial and industrial electrical installations.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code. De-energize and lock out all circuits before working on conduit systems or enclosures. Thread the bushing fully onto the conduit end before pulling conductors through to ensure edge protection is in place. Inspect the bushing seating and ensure conductors are not pinched between the bushing and enclosure wall during final assembly.

Technical Specifications

• Trade Size: 2.5 inches
• Type: Rigid Capped Bushing
• Weight: 48 pounds
• UPC: 75133812591

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 307CB
