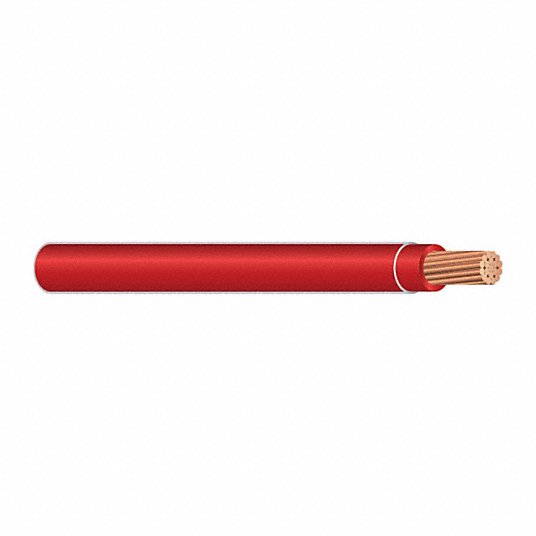

Southwire 22975784 10-19 SD CU THHN-THWN-MTW-AWM UL/c(UL) 100 FT

Product Description

The Southwire 22975784 is a THHN copper conductor utilized for branch circuits within commercial and industrial settings. This product complies with the National Electrical Code and offers multiple ratings based on application needs. It is suitable for use in various environments, including dry and wet locations, with specific temperature tolerances.

• Rated to 600 volts.
• Gasoline and oil resistant.
• Available in a spool, measuring one hundred feet.

Product Highlights

This copper conductor is ideal for various wiring applications, including branch circuits and cable trays. It features a durable construction that meets industry standards.

Product Information

Standard Information

• Manufacturer Name: Southwire Company
• Conductor Material: Bare Copper

Technical Specifications

• Conductor Size: 10 AWG
• Conductor Number: 1
• Conductor Strands: 19
• Diameter Over Conductor: 0.117 inches
• Insulation Thickness: 21 mils
• Approx. OD: 0.165 inches
• Copper Weight: 32 lbs/1000'
• Voltage: 600 V
• Overall Length: 100 ft
• Temperature Rating - Maximum Dry: 194 °F
• Temperature Rating - Maximum Wet: 167 °F
• Standards: ASTM B3, CSA C22.2 No.75, cULus, Federal Specification AA-59544, FPA 70, FT1
• Application: Branch circuit wiring, conduit
