Southwire 151TZ 1/2 inches Flex Str Connector

Product Description

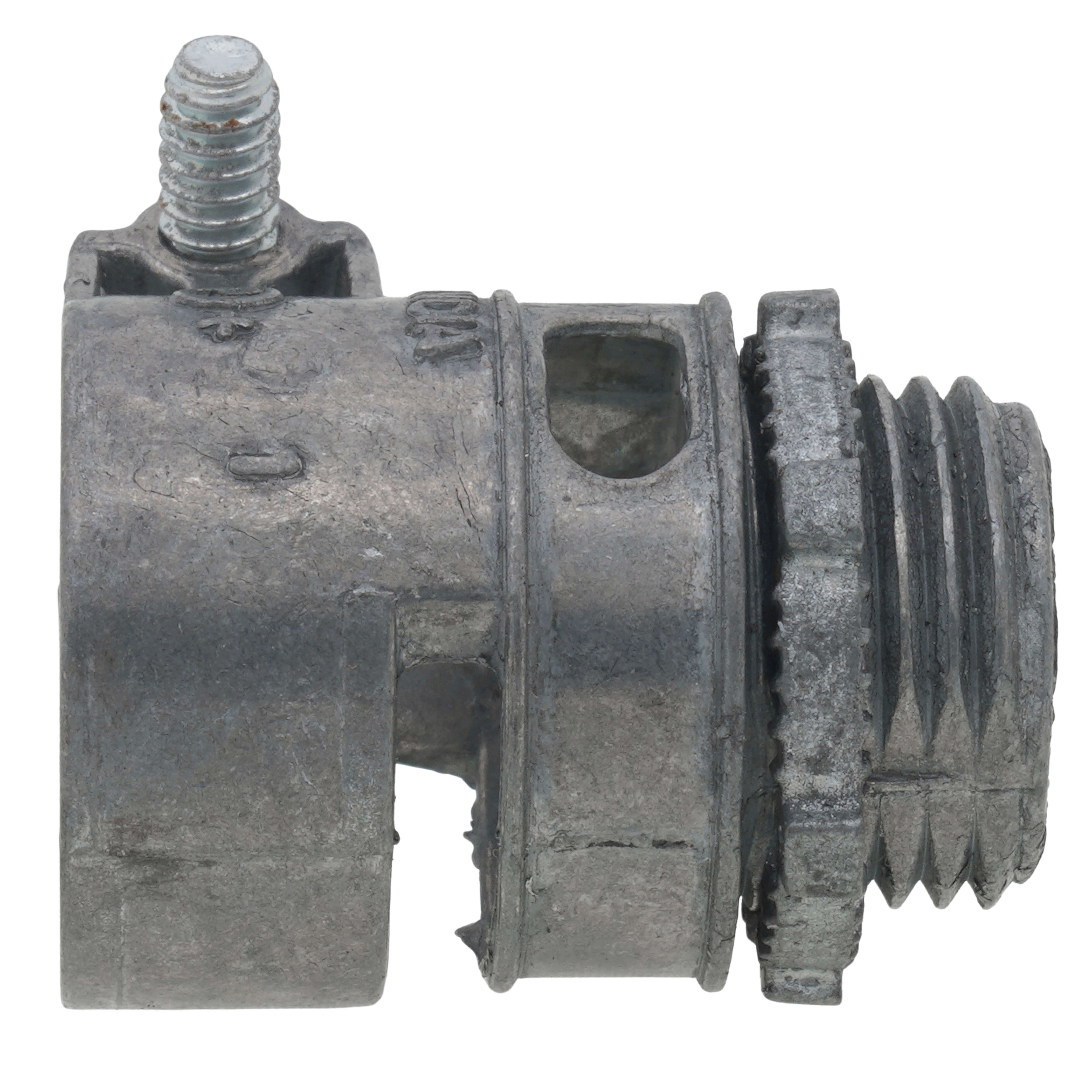

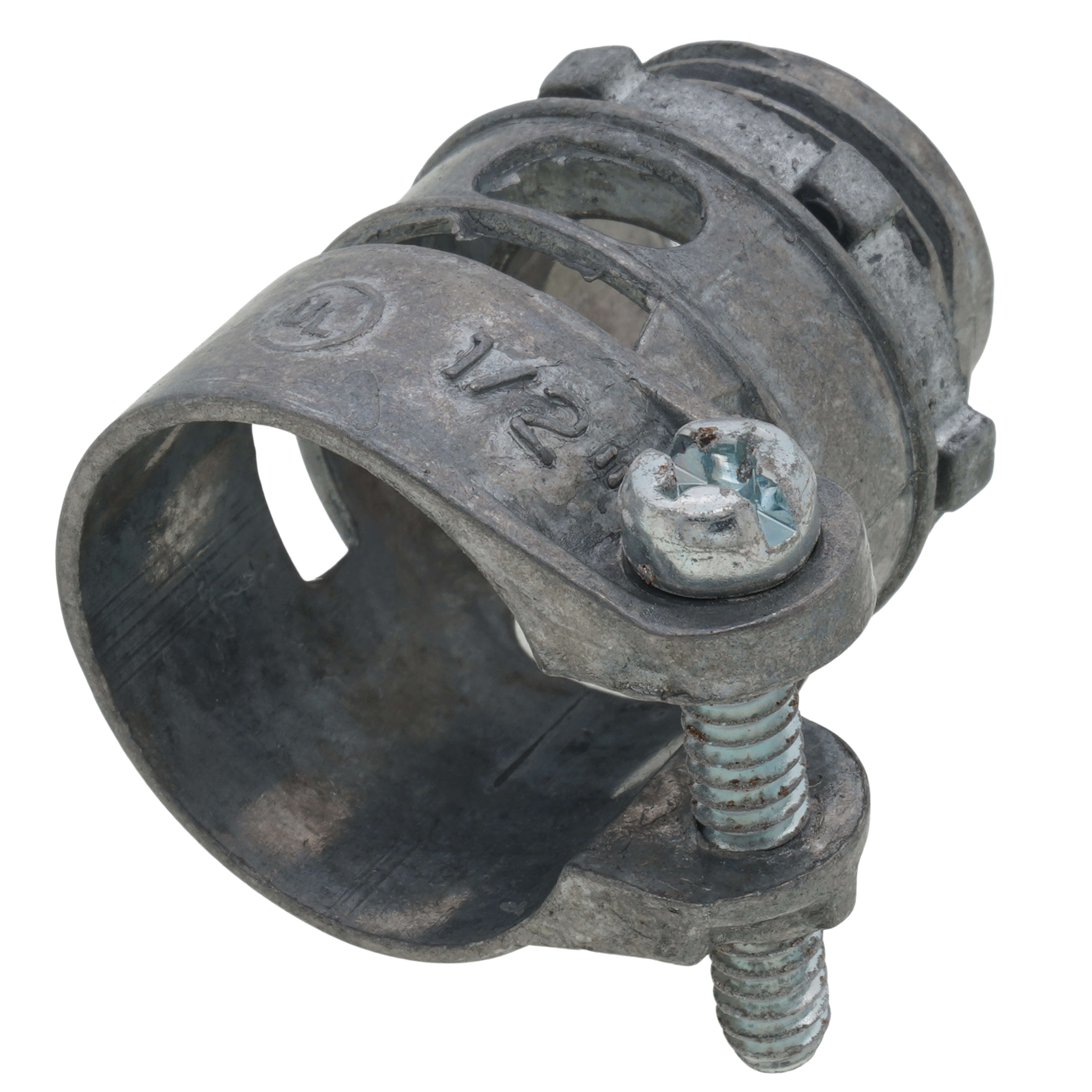

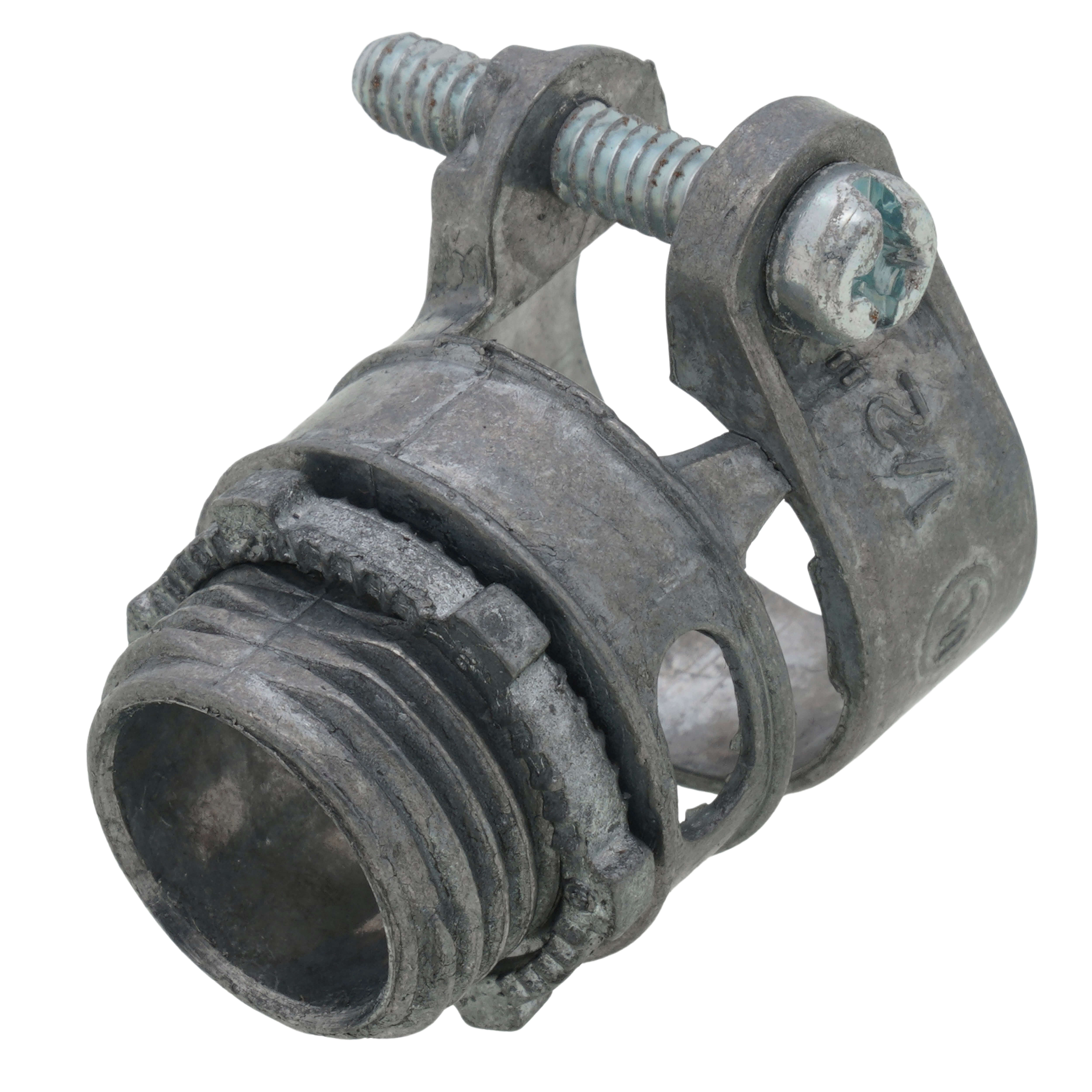

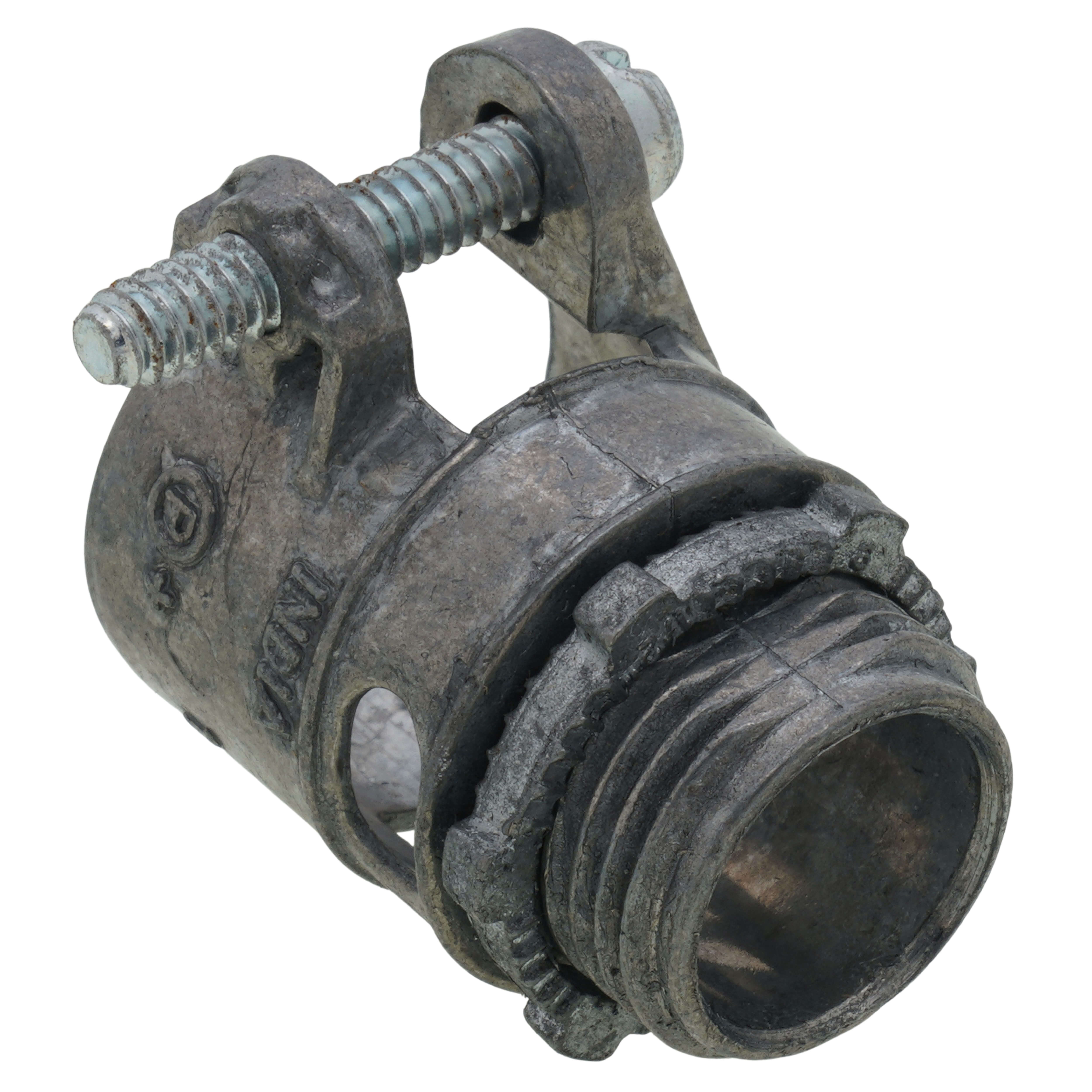

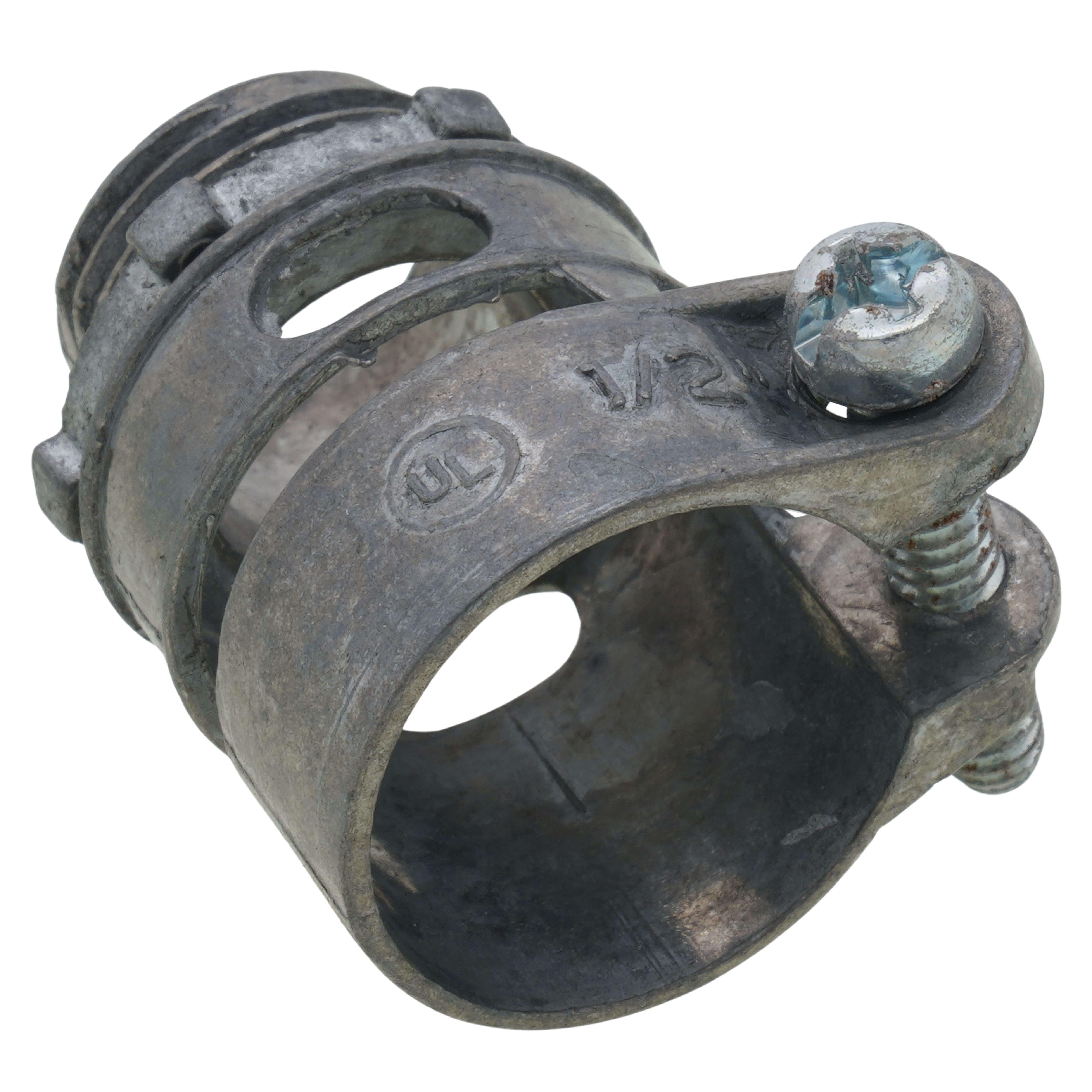

The SOUTHWIRE 151TZ is a 1/2" straight squeeze type BX-Flex connector made from zinc die cast. It is designed for flex conduit and features a threaded x squeeze TC connection. This connector is suitable for commercial, industrial, and residential applications.

• Squeeze type
• Constructed from zinc die cast
• Straight BX-Flex connector

Product Highlights

1/2" straight squeeze type BX-Flex connector made from zinc die cast for flex conduit.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 151TZ
• Country of Origin: China

Technical Specifications

• Size: 1/2 in
• Type: Straight Squeeze BX-Flex Connector
• Brand: Southwire
• Length: 1.47 Inch
• Material: Zinc Die Cast
• Trade Size: 1/2 Inch
• Product UPC: 75133811000
• TC Connection: Threaded x Squeeze
• Thread Length: 0.400 IN
• Approval: UL, CSA
• Cable Opening: Single
• Cable/Conduit Type: Flex Conduit
• Cord Size: 0.74 to 0.95 Inch
• Installation: (1) Screw, Squeeze
• Manufacturer Name: Southwire
• Throat Type: Non-Insulated
• UPC #: 751338110007
