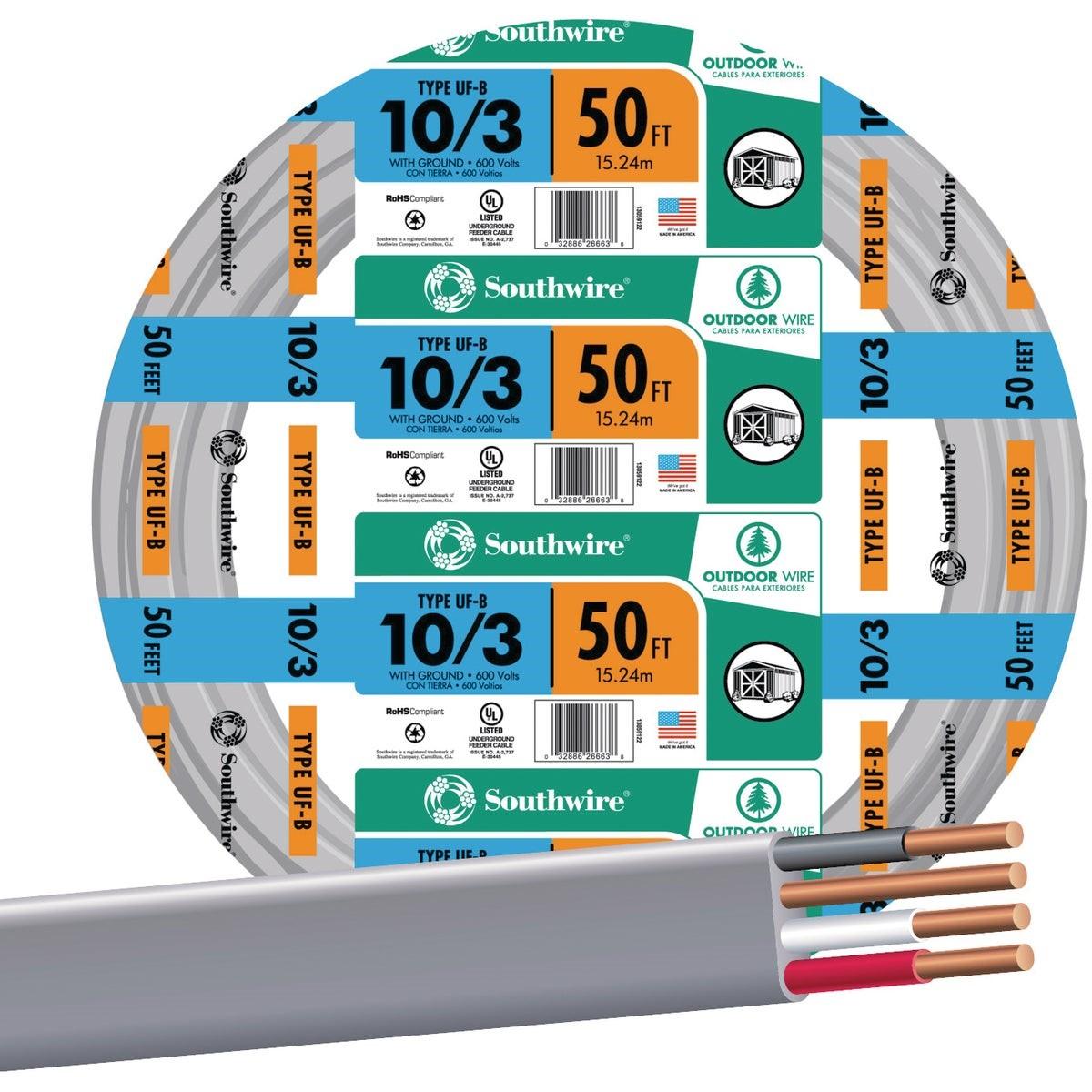

Southwire 13059122 10 Awg 3-conductor Ufw/g Wire 50 Ft

Product Description

The SOUTHWIRE 13059122 is a Type UF-B underground feeder and branch circuit cable rated for direct earth burial and indoor wet or corrosive locations. It carries a 600-volt, 75 degrees F rating and is built to resist acids, alkalis, corrosive fumes, chemicals, lubricants, and groundwater. The 10 AWG, 3-conductor construction suits branch circuit runs where moisture exposure and burial depth make standard NM cable unsuitable. Electricians install this cable in residential and light commercial applications where code requires a listed underground feeder type. The insulation is noncorroding, sunlight-resistant, and will not support combustion.

This cable is suited for underground branch circuit feeders run from a main panel or sub-panel to outbuildings, landscape lighting circuits, exterior outlets, and similar loads. It is also acceptable for indoor runs in wet or corrosive environments where a moisture-resistant cable type is specified by the National Electrical Code. The 50-foot roll length covers typical residential service runs to detached garages, sheds, or pool equipment pads without a mid-run splice.

Key Features

• Rated for direct earth burial as an underground feeder cable per NEC requirements
• 600-volt, 75 degrees F temperature rating for branch circuit use
• 10 AWG 3-conductor construction suitable for 30-amp branch circuits
• Sunlight-resistant outer jacket will not support combustion
• Resistant to acids, alkalis, chemicals, lubricants, and groundwater
• UL Listed per Underwriters Laboratories standards

Compatibility

Designed as a direct-burial UF-B type underground feeder cable for residential and light commercial branch circuit applications where NEC Article 340 applies.

Installation Notes

Installation must be performed by a licensed electrician in accordance with NEC Article 340 and all applicable local codes. De-energize and lock out the circuit at the panel before making any connections. Observe minimum burial depth requirements per NEC Table 300.5 based on circuit voltage and conduit use. Do not use this cable as a substitute for SE, USE, or other cable types in applications outside the UF-B listing scope.

Technical Specifications

• Wire Gauge: 10 AWG
• Number of Conductors: 3
• Cable Type: UF-B (UFW/G)
• Voltage Rating: 600 volts
• Temperature Rating: 75 degrees F
• Length: 50 feet
• Weight: 9.884 pounds
• Unit of Measure: Roll
• Listing: UL Listed

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 13059122
