Southwire 11583283 14 Awg Solid Green Thhn Wire 50 Ft

Product Description

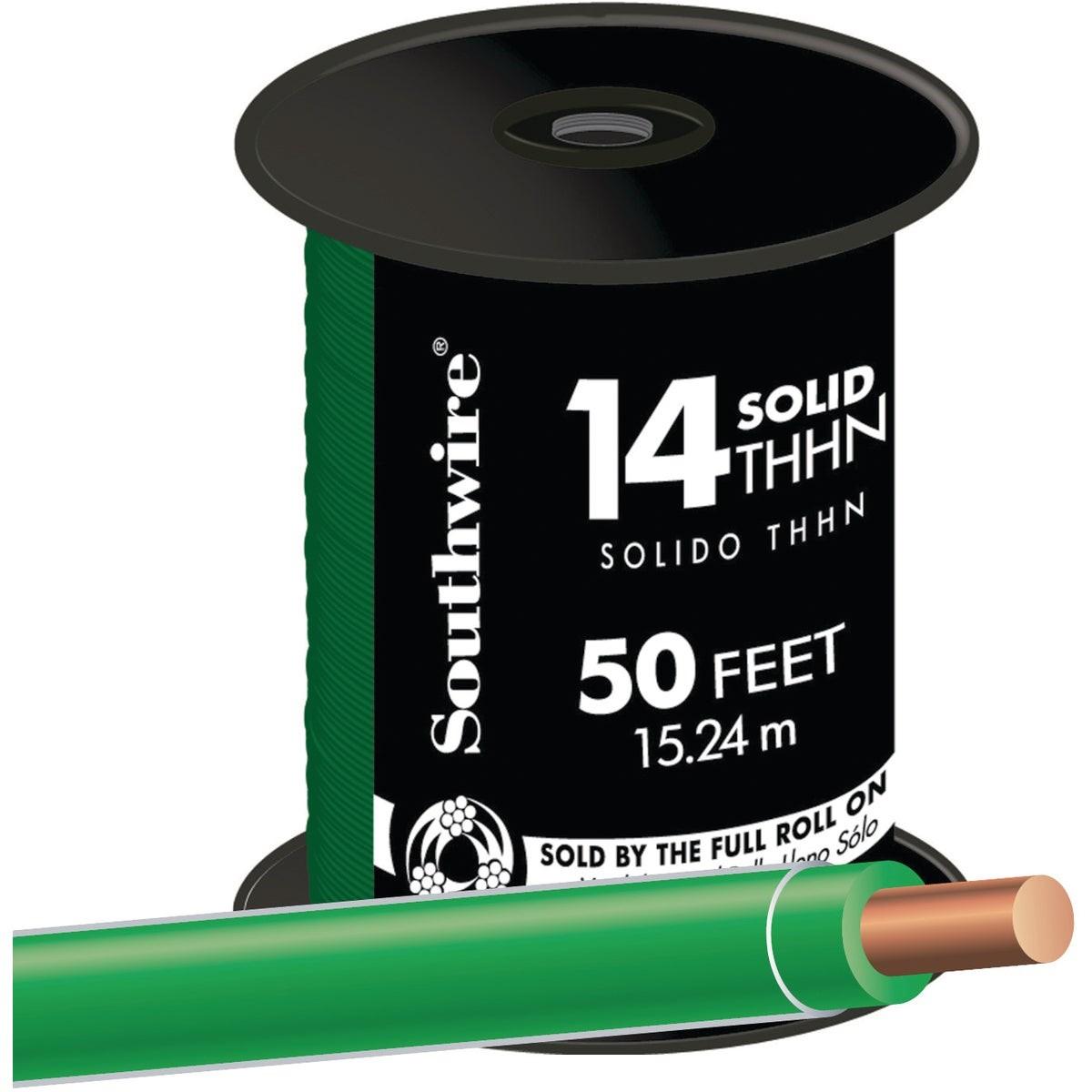

The SOUTHWIRE 11583283 is a 50-foot coil of 14 AWG solid copper THHN building wire in green, rated at 600 volts and 90 degrees C. It is built for general-purpose power, lighting, and control wiring in residential and commercial construction. The conductor is solid copper with flame-retardant PVC insulation and a nylon outer jacket. That jacket adds resistance to oil, gasoline, chemicals, and abrasion, making it dependable in demanding conduit runs. Electricians reach for this wire when pulling branch circuit conductors through conduit or raceways where a durable, code-compliant wire is required.

This wire is intended for installation inside conduit or raceways as required by the NEC. Green insulation color is the standard designation for equipment grounding conductors in branch circuit and panel wiring. It is appropriate for use in residential panels, commercial light fixtures, motor control panels, and other 600-volt or lower applications where a solid 14 AWG grounding or control conductor is specified. Its small diameter makes it easier to pull through tight conduit fills compared to larger AWG sizes.

Key Features

• Solid copper conductor — 14 AWG, suitable for grounding and control circuits
• Rated 600 volts and 90 degrees C for broad application coverage
• Flame-retardant PVC insulation with nylon jacket for added durability
• Resistant to oil, gasoline, chemicals, and abrasion
• Green insulation — standard NEC color for equipment grounding conductors
• UL listed for use in conduit and raceways

Compatibility

Designed for use in conduit and raceway installations requiring a 14 AWG solid THHN conductor rated at 600 volts and 90 degrees C, consistent with NEC requirements for branch circuit and grounding applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize and lock out the circuit before making any connections. THHN wire must be pulled through listed conduit or raceways — direct burial or open-air installation without an approved raceway is not permitted for this wire type. Green conductors are reserved for equipment grounding; do not repurpose this wire color for phase or neutral conductors.

Technical Specifications

• Wire Gauge: 14 AWG
• Conductor Type: Solid Copper
• Wire Type: THHN
• Voltage Rating: 600 volts
• Temperature Rating: 90 degrees C
• Insulation Material: Flame-retardant PVC with nylon jacket
• Color: Green
• Length: 50 feet
• Weight: 0.955 pounds
• Listing: UL Listed

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 11583283
