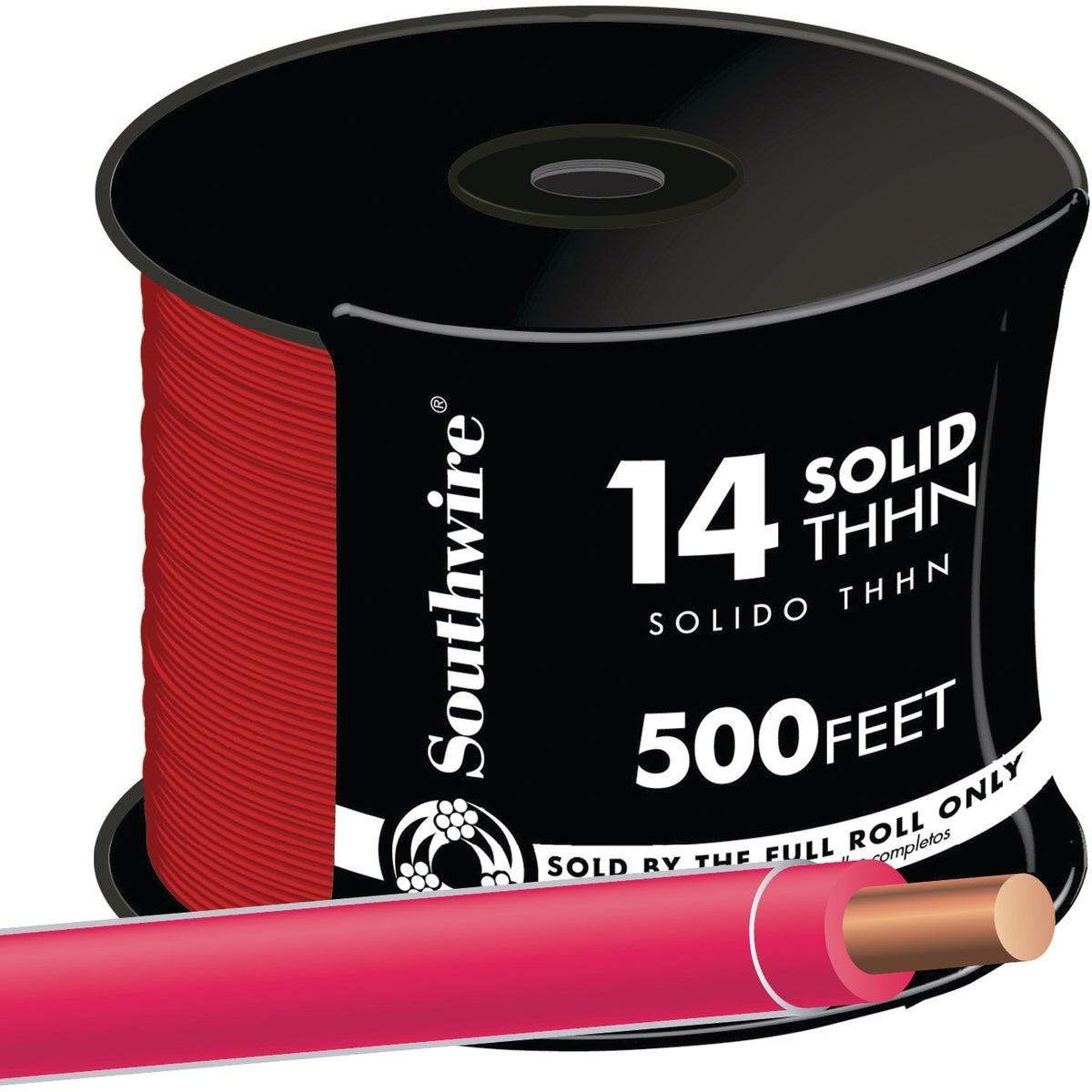

Southwire 11581658 Thhn Wire 14 Awg Solid Red 500 Ft

Product Description

The SOUTHWIRE 11581658 is a 500-foot roll of 14 AWG solid red THHN building wire rated for general-purpose power, lighting, and control wiring in residential and commercial electrical installations. Constructed with solid copper conductors, the wire features flame-retardant PVC insulation and a nylon outer jacket for added durability. Rated at 600 volts and 90 degrees C, it meets the demands of standard branch-circuit and feeder applications where conduit or raceway routing is required. UL listed for code-compliance confidence on inspected jobs.

This wire is suited for use in conduit and raceways in residential, commercial, and light industrial settings. Electricians pull it for branch circuits, lighting runs, and control wiring where a solid conductor is specified. The red jacket color supports color-coding discipline on multi-circuit installations, making conductor identification straightforward during rough-in and finish work.

Key Features

• Solid copper conductor for reliable conductivity and solid termination at device screws
• Flame-retardant PVC insulation with nylon jacket for mechanical protection
• Resistant to oil, gasoline, chemicals, and abrasion — suitable for demanding conduit environments
• 600-volt rating covers standard branch-circuit and feeder applications
• 90 degrees C temperature rating meets NEC requirements for common residential and commercial wiring
• UL listed for use on code-required inspected installations

Compatibility

Designed for use in conduit and raceway systems as general-purpose THHN building wire for power, lighting, and control wiring applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit before making any terminations. Solid 14 AWG conductors are typically landed under screw terminals rather than pushed into back-stab receptacle connections. Pulling lubricant rated for PVC-jacketed wire should be used when routing through long conduit runs or those with multiple bends.

Technical Specifications

• Wire Gauge: 14 AWG
• Conductor Type: Solid
• Conductor Material: Copper
• Insulation Type: THHN - Flame-Retardant PVC with Nylon Jacket
• Voltage Rating: 600 volts
• Temperature Rating: 90 degrees C
• Wire Color: Red
• Length: 500 feet
• Unit of Measure: Roll
• Weight: 8.075 pounds
• Certifications: UL Listed

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 11581658
