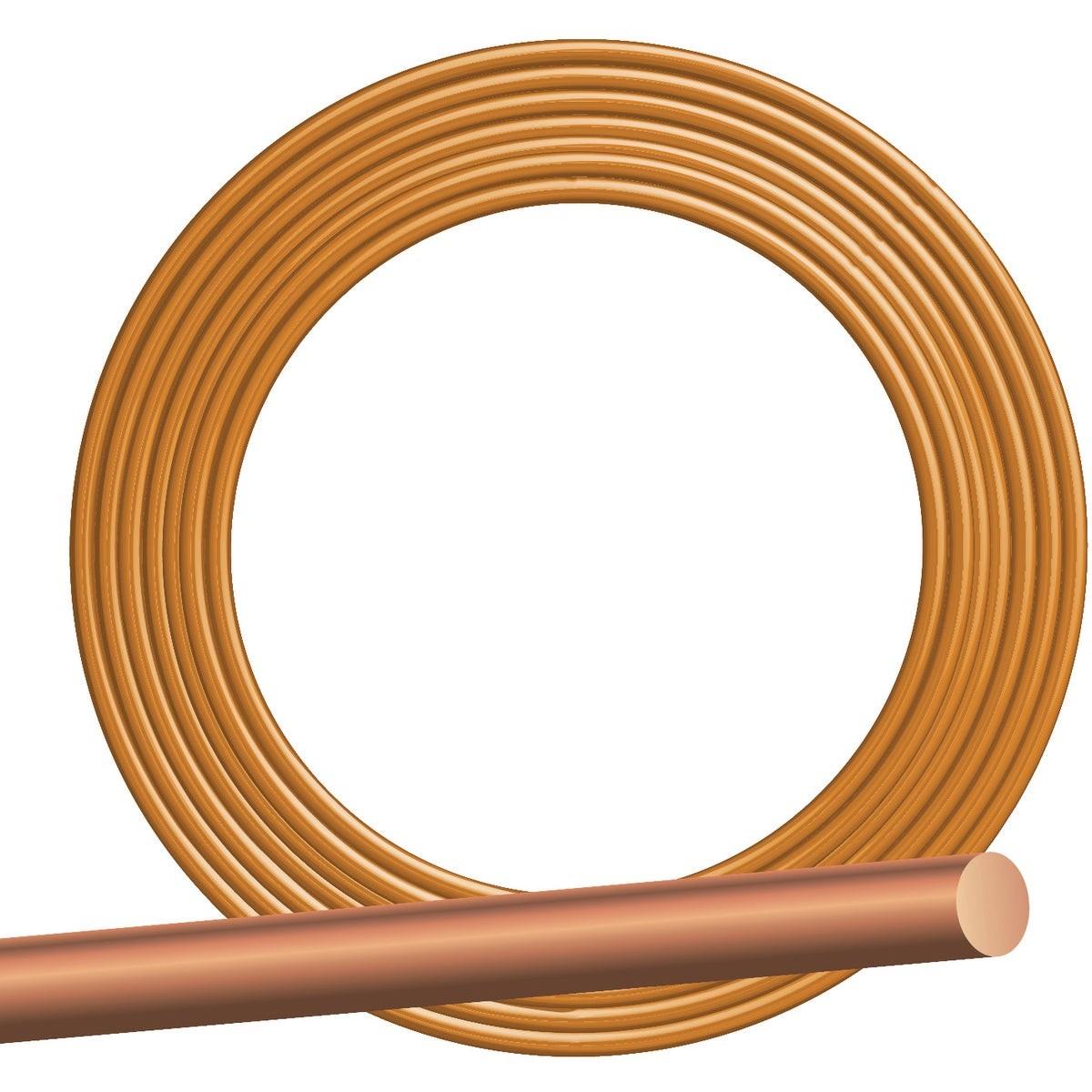

Southwire 10638502 Solid Bare Copper Ground Wire 6 Awg

Product Description

The SOUTHWIRE 10638502 is a 315-foot roll of 6 AWG soft-drawn solid bare copper ground wire designed for grounding applications in residential electrical systems. Solid bare copper construction provides reliable conductivity and corrosion resistance in grounding grid installations. At 25 pounds per roll, this wire is sized for full-system grounding runs where a single continuous conductor is required from the grounding electrode to the service entrance. Licensed electricians and electrical contractors install this wire as part of code-compliant grounding electrode systems in new construction and retrofit projects.

This wire is intended for grounding grid systems in residential electrical installations, typically installed before the service entrance point. It is suited for use as a grounding electrode conductor connecting the electrical panel or service equipment to ground rods, water pipes, or other grounding electrodes. The 315-foot roll length supports larger residential projects or multiple grounding runs without the need for splicing mid-run.

Key Features

• 6 AWG solid bare copper construction for high conductivity and durability in grounding applications
• Soft-drawn copper for easier bending and routing during installation
• 315-foot roll length reduces the need for mid-run splices on larger jobs
• Sold as a single roll with a minimum order quantity of one roll
• Designed for grounding grid systems in residential electrical service

Compatibility

Designed for use as a grounding electrode conductor or grounding grid wire in residential electrical systems, compatible with standard grounding electrode system configurations per NEC requirements.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC), specifically Article 250 governing grounding and bonding. De-energize all affected circuits and verify with a meter before beginning any grounding work at the service entrance. Bare copper grounding conductors installed underground or in contact with concrete may require specific burial depth or protection per local code amendments. Do not use this wire as a current-carrying conductor.

Technical Specifications

• Wire Gauge: 6 AWG
• Conductor Type: Solid
• Material: Bare Copper (Soft Drawn)
• Length: 315 feet
• Weight: 25 pounds
• Unit of Measure: Roll
• UPC: 00032886334405

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 10638502
