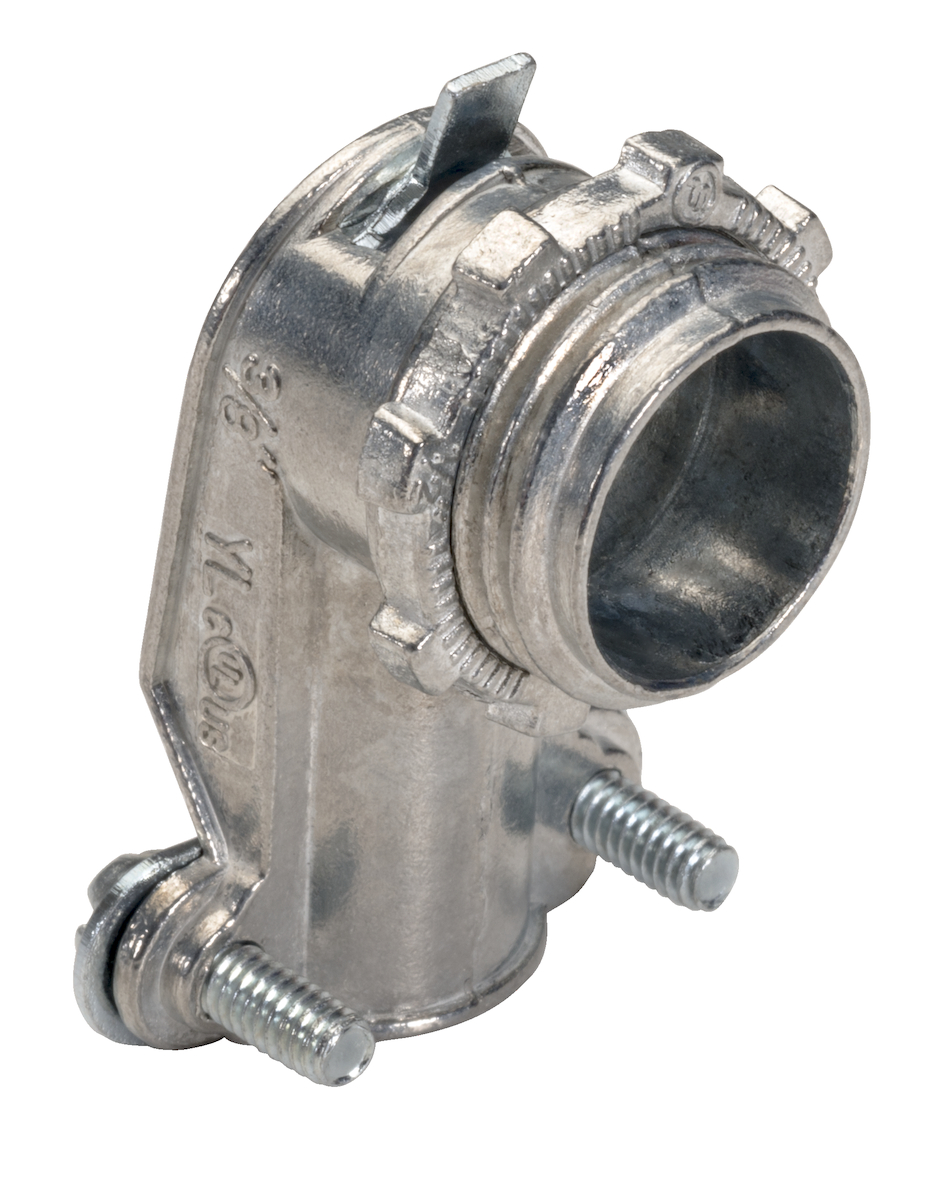

Southwire 106 2 inches Flex 90deg Conn

Product Description

The SOUTHWIRE 106 2" Flex 90deg Conn is a durable and corrosion-resistant die cast zinc connector. Recommended for use in dry locations when bonding flexible metal conduit to a box or enclosure. The squeeze type assembly enables easy installation for connecting flexible metallic conduit, AC and steel MC cable to a steel outlet box or other metal enclosure.

• Corrosion-resistant zinc construction
• Squeeze type assembly enables easy installation
• Recommended for indoor use

Product Highlights

The SOUTHWIRE 106 is ideal for connecting flexible metallic conduit at a 90-degree angle in dry, indoor locations.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 106

Technical Specifications

• Trade Size: 2 in
• Type: 90 deg
• Application: Use to connect flexible metallic conduit, AC and steel MC cable to a steel outlet box or other metal enclosure, indoor use only
• Standard & Approvals: CSA Certified, UL Listed, UL 514B, UL File No. E148716, US Federal Specification A-A-50552, NEMA/ANSI FB-1, Military Specification W-F-406D/W-F-406E/W-F-408D/W-S-610D
• Cable Type: BX-Flex
• Connection Type: Threaded x Squeeze
• Material: Die Cast Zinc
• Catalog ID: SWI106
• Cable Openings: 1.54 to 2.54 in
• Brand: Southwire
• SKU: SOUTHWIRE-106
• Mfr. Part Number: 106
• UPC Code: #751338104006
• Product Name: Southwire TOPAZ 2 Inch Flexible 90-Degree Connector (106)
