Southwire 101 flexible conduit connector 90 degree

Product Description

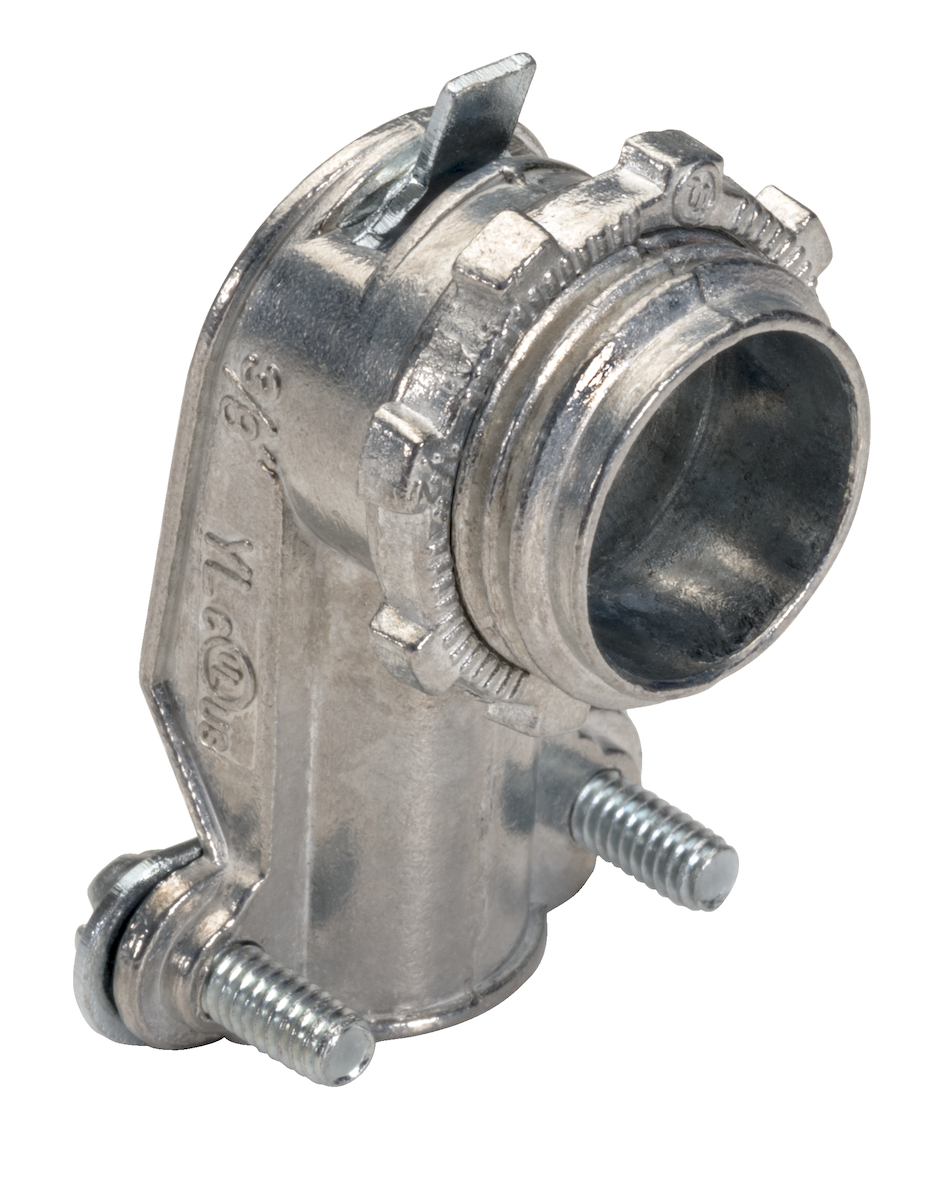

The SOUTHWIRE 101 flexible conduit connector is a 90-degree connector designed for flex conduit. Constructed from die-cast zinc, it features a non-insulated throat and a squeeze installation with two screws. It accommodates cord sizes from 0.64 to 1.03 inches and is suitable for single cable openings.

• UL and CSA approved
• Constructed from die-cast zinc for durability
• Features a 90-degree angle for versatile connections

Product Highlights

This flexible conduit connector is ideal for commercial, industrial, and residential applications.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 101

Technical Specifications

• Approval: UL, CSA
• Cable Opening: Single
• Cable/Conduit Type: Flex Conduit
• Cord Size: 0.64 to 1.03 Inch
• Installation: (2) Screw, Squeeze
• Manufacturer Name: Southwire
• Material: Die-Cast Zinc
• Product UPC: 751338103504
• Throat Type: Non-Insulated
• Type: 90 Degree
• Series: BX-FLEX
• Trade Size: 1/2 in
• Standard & Approvals: UL 514B, UL File No. E26493, US Federal Specification A-A-50552, CSA Certified, NEMA/ANSI FB-1, Military Specification W-F-406D/W-F-406E/W-F-408D/W-S-610D
• Angle: 90 deg
• Cable Openings: 0.64 to 1.03 in
• Cable Type: MC
• Catalog ID: SWI101
• Connection Type: Threaded x Squeeze
• Number of Conductors: 1
