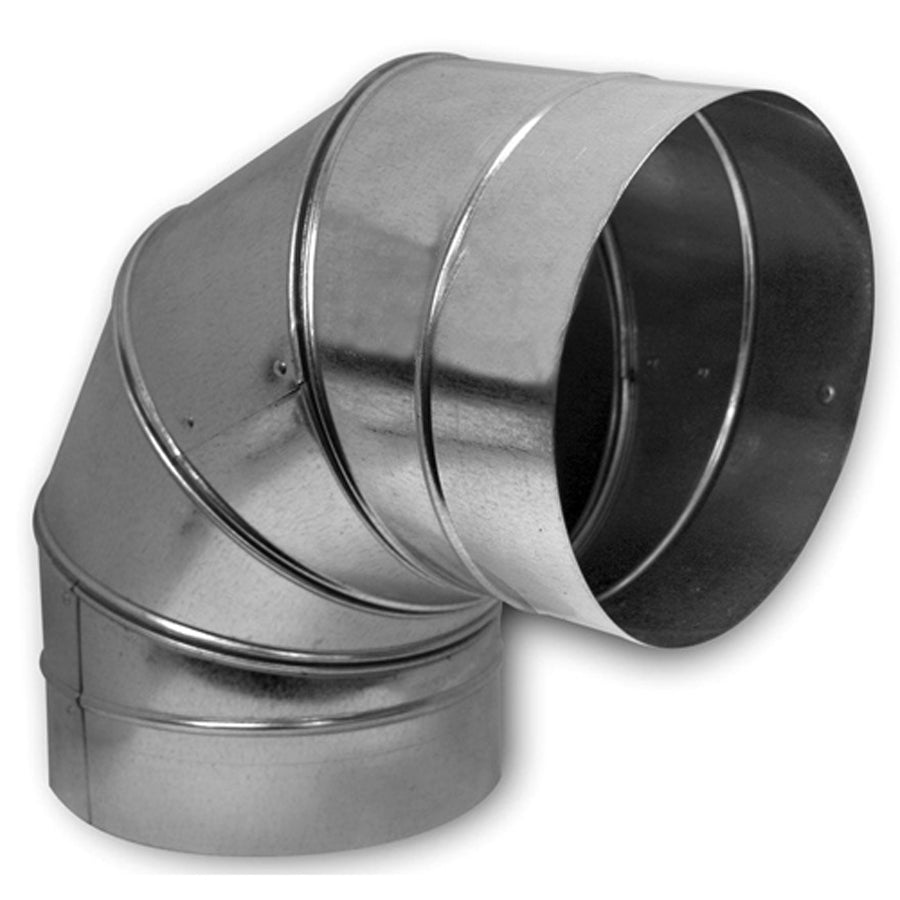

Southwark Metal SP90-24GA_14IN Spiral Elbow 14 in 90 Deg

Product Description

The SOUTHWARK METAL SP90-24GA_14IN is a 90-degree spiral round sheet metal elbow fabricated from hot dip galvanized steel at 24 gauge material thickness. Designed for round duct systems, this elbow redirects airflow at a full 90-degree angle while maintaining a consistent 14-inch diameter at both the inlet and outlet. The hot dip galvanized finish provides corrosion resistance suited to HVAC supply and return air applications. Sheet metal mechanics and HVAC installers working on commercial and light commercial duct systems will find this fitting meets ACCA and SMACNA fabrication standards for spiral round ductwork.

This elbow is used in spiral round duct distribution systems for commercial HVAC installations where a 14-inch diameter 90-degree change of direction is required. It is appropriate for trunk-and-branch layouts, rooftop unit distribution systems, and other applications where ACCA and SMACNA compliance is specified. The spiral construction provides structural rigidity without the need for additional reinforcement at this diameter.

Key Features

• 90-degree bend angle for full right-angle duct direction changes
• 14-inch diameter at both inlet and outlet for consistent airflow cross-section
• Hot dip galvanized steel construction for corrosion resistance
• 24-gauge material thickness appropriate for commercial spiral round duct systems
• Meets ACCA and SMACNA applicable standards
• Spiral round profile provides structural rigidity at large diameters

Compatibility

Designed for use with 14-inch diameter spiral round duct systems meeting ACCA and SMACNA fabrication standards in commercial HVAC applications.

Installation Notes

Installation should be performed by a qualified sheet metal mechanic or licensed HVAC technician. Power down the air handling unit and lock out the system before making duct connections. Secure fittings with sheet metal screws and seal all joints with UL-listed duct sealant or foil tape in accordance with SMACNA installation guidelines. Support the fitting per SMACNA hanger and support requirements for the duct size and system pressure class.

Technical Specifications

• Material: Hot Dip Galvanized Steel
• Material Thickness: 24 Gauge
• Diameter (Inlet): 14 inches
• Diameter (Outlet): 14 inches
• Bend Angle: 90 degrees
• Type: Spiral Round
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: SP90-24GA_14IN
