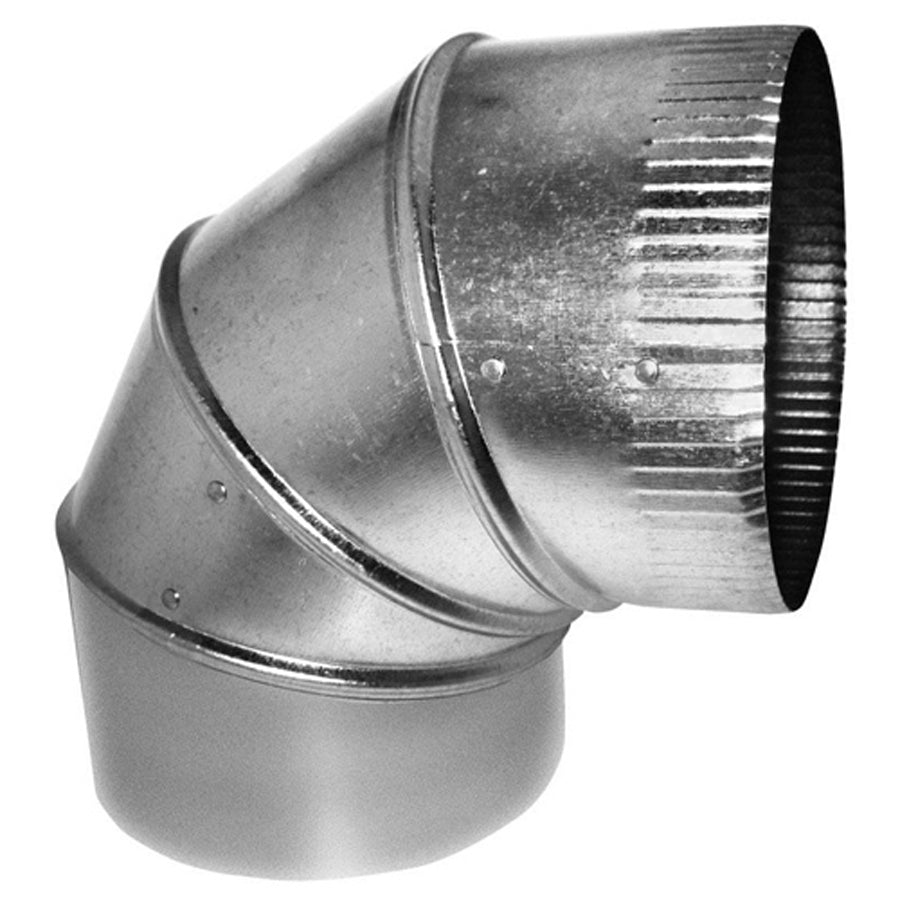

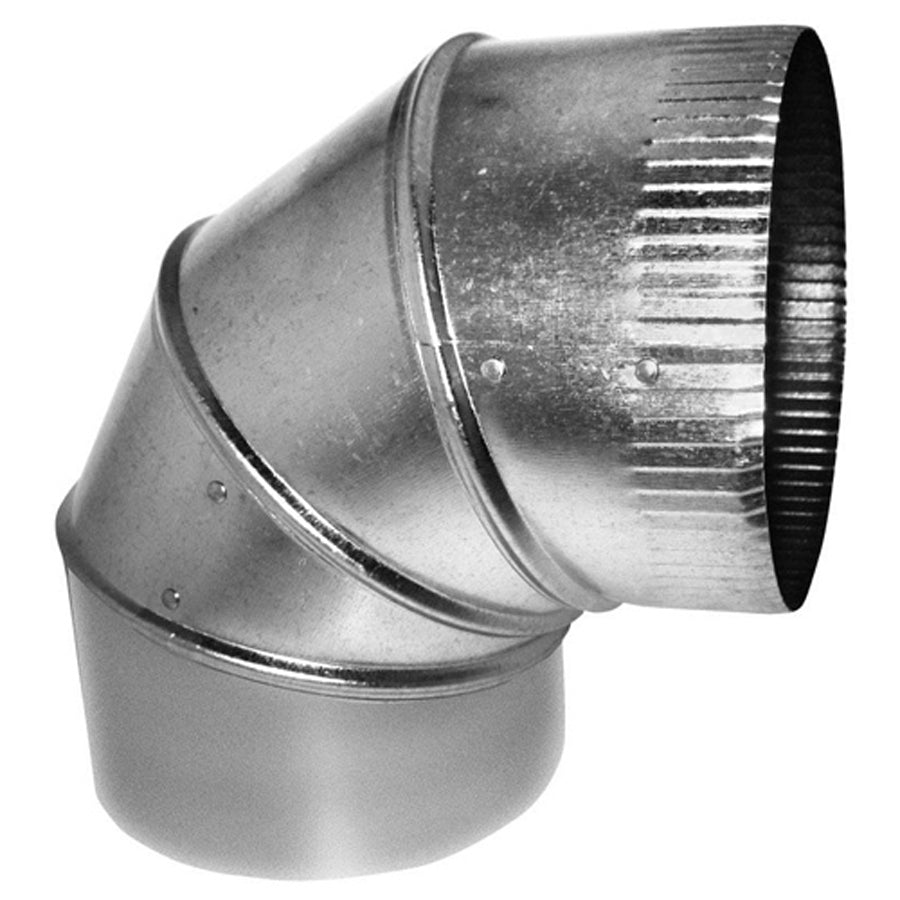

Southwark Metal 90-24GA_24IN Galvanized Elbow 90 Degree 24 in

SOUTHWARK METAL
Brand: SOUTHWARK METAL
SKU: 90-24GA_24IN
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$111.89
$111.89
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The SOUTHWARK METAL 90-24GA_24IN is a round 90-degree sheet metal elbow fabricated from hot dip galvanized steel at 24 gauge thickness. It is designed for use in low-pressure HVAC ductwork systems where a 90-degree directional change is required in a round duct run. The inlet and outlet diameters are both 24 inches, making it a straight-size fitting with no reduction. Sheet metal workers and HVAC installers use this fitting in supply and return air distribution systems built to ACCA and SMACNA standards.

This elbow is suited for residential and commercial HVAC duct installations where round galvanized ductwork is specified. It fits into systems requiring a full 90-degree turn in a 24-inch round duct run. The hot dip galvanized finish provides corrosion resistance appropriate for conditioned-air applications. Fabricated to meet ACCA and SMACNA standards, this fitting is compatible with standard round duct systems using 24-gauge galvanized steel construction.

Key Features

  • 90-degree angle for full directional change in round duct systems
  • 24-inch diameter on both inlet and outlet — no reduction
  • Hot dip galvanized steel construction for corrosion resistance
  • 24-gauge material thickness meets SMACNA and ACCA duct construction standards
  • Round profile for use with standard round duct and fittings

Compatibility

Designed for use in round galvanized steel duct systems with 24-inch diameter connections, fabricated to ACCA and SMACNA duct construction standards.

Installation Notes

Installation is performed by licensed sheet metal workers or HVAC technicians. Disconnect and lock out the air handling system before connecting or modifying ductwork. Secure all joints with sheet metal screws and seal with listed duct sealant or foil tape per SMACNA installation guidelines. Handle cut edges carefully — 24-gauge galvanized steel edges are sharp and require appropriate PPE.

Technical Specifications

  • Angle: 90 degrees
  • Type: Round
  • Diameter (Inlet): 24 inches
  • Diameter (Outlet): 24 inches
  • Material: Hot Dip Galvanized Steel
  • Material Thickness: 24 Gauge
  • Applicable Standards: ACCA, SMACNA

Standard Information

  • Brand: SOUTHWARK METAL
  • Manufacturer Part Number: 90-24GA_24IN
