Southwark Metal 31PF-24GA_6X14 Plaster Frame Boot Rail 6x14

Product Description

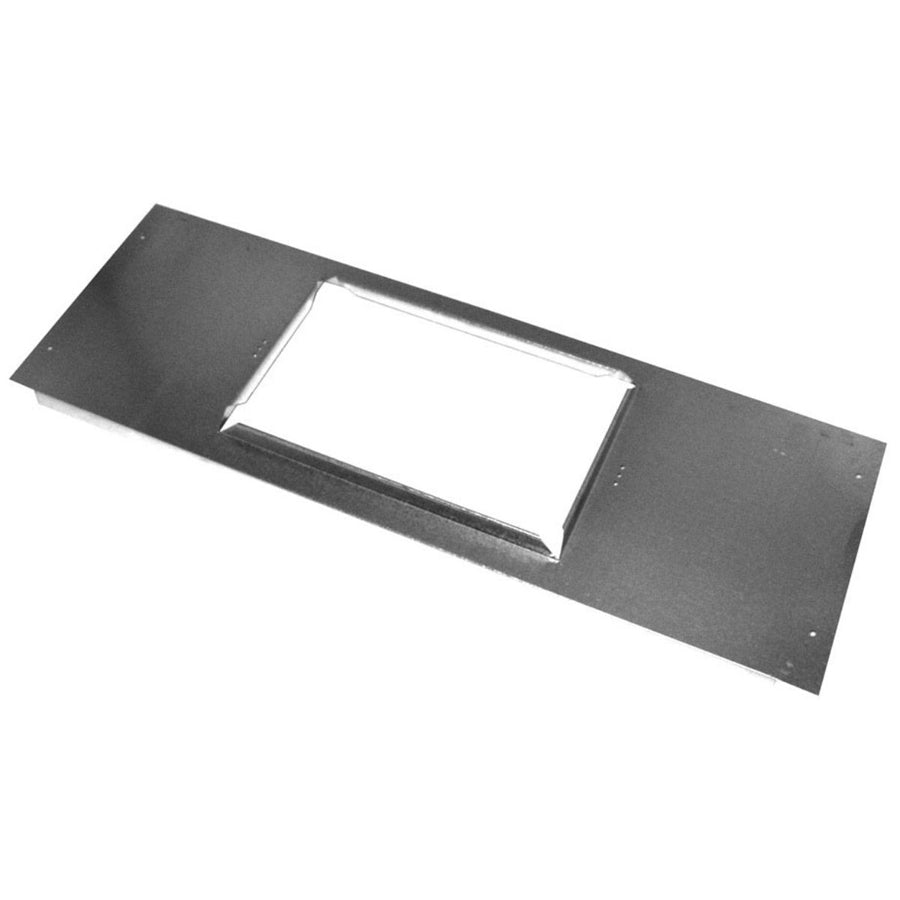

The SOUTHWARK METAL 31PF-24GA_6X14 is a sheet metal duct plaster frame boot rail designed for return air duct terminations in residential and light commercial HVAC systems. Fabricated from hot dip galvanized steel at 24 gauge, this plaster frame provides a clean, rigid border around the duct boot opening where the register or grille seats against a finished wall or ceiling surface. It is installed by sheet metal workers and HVAC technicians during rough-in to hold the duct boot flush with drywall or plaster finishes. The frame measures 6 inches by 14 inches, matching the duct opening, and conforms to ACCA and SMACNA fabrication standards.

This plaster frame boot rail is used in return air applications where a flush, finished appearance is required at the wall or ceiling plane. It is typically installed during the framing or rough-in phase before drywall is applied, allowing the duct boot to be set at the correct depth relative to the finished surface. Suitable for residential new construction and renovation projects where ducted return air systems are built to SMACNA sheet metal standards.

Key Features

• Hot dip galvanized steel construction resists corrosion in typical HVAC installation environments
• 24 gauge material thickness meets SMACNA standards for return air duct accessories
• 6 inch by 14 inch frame size fits standard residential return air boot openings
• Conforms to ACCA and SMACNA applicable standards
• Designed for return air duct systems requiring a finished plaster or drywall border

Compatibility

Designed as an OEM-style sheet metal plaster frame for return air duct boot openings in residential and light commercial ducted HVAC systems built to ACCA and SMACNA standards.

Installation Notes

Installed by sheet metal workers or licensed HVAC technicians during duct rough-in before drywall or plaster finish is applied. Ensure the duct boot is set at the correct depth so the frame sits flush with the intended finished surface plane. Follow SMACNA sheet metal construction standards for fastening and sealing. Power down the HVAC system before performing any duct work or boot installation in an active system.

Technical Specifications

• Frame Size: 6 inches x 14 inches
• Material: Hot Dip Galvanized Steel
• Material Thickness: 24 Gauge
• Type: Return Air
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 31PF-24GA_6X14
