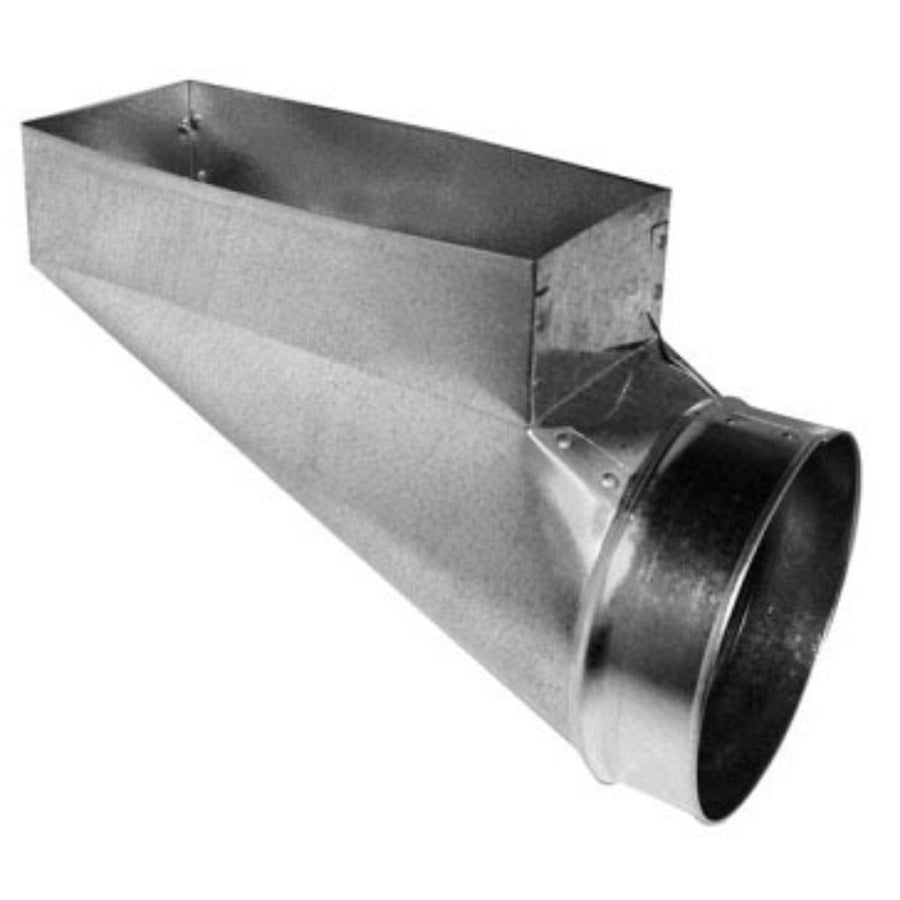

Southwark Metal 28R_6X10X7 Sheet Metal Pipe Boot Register

Product Description

The SOUTHWARK METAL 28R_6X10X7 is a center-end sheet metal pipe boot designed to transition from round duct to a rectangular register opening in forced-air HVAC systems. Constructed from hot dip galvanized steel, this boot provides corrosion resistance suitable for both residential and light commercial ductwork installations. The rectangular opening measures 6 inches by 10 inches, and the round collar measures 7 inches in diameter. HVAC installers and sheet metal contractors use this fitting to connect round branch ducts to floor, wall, or ceiling register grilles. It meets ACCA and SMACNA applicable standards for fabricated ductwork fittings.

This pipe boot is used in ducted forced-air heating and cooling systems where a round duct branch terminates at a supply register. The center-end configuration positions the round collar at the center of the boot end, which suits standard straight-run duct-to-register transitions in residential construction and light commercial applications. It is installed by sheet metal contractors and HVAC technicians during new construction rough-in or duct replacement work.

Key Features

• Hot dip galvanized steel construction provides corrosion resistance for long-term ductwork use
• Rectangular opening of 6 inches by 10 inches fits standard register grille sizes
• 7 inch diameter round collar connects directly to round branch duct
• Center-end collar placement suits straight-run duct-to-register transitions
• Meets ACCA and SMACNA applicable standards for sheet metal ductwork fittings

Compatibility

Designed as an OEM-style sheet metal fitting compatible with standard 6 inch by 10 inch supply register openings and 7 inch round duct branch connections in residential and light commercial forced-air HVAC systems.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified sheet metal contractors in accordance with SMACNA duct construction standards and local mechanical codes. The air handling system should be shut down and power disconnected before connecting or sealing any duct fittings. Seal all joints with listed duct mastic or UL 181-rated tape per applicable code requirements. Do not use standard cloth duct tape as a primary sealant on metal ductwork.

Technical Specifications

• Material: Hot Dip Galvanized Steel
• Rectangular Opening (Size A): 6 inches x 10 inches
• Round Collar Diameter (Size B): 7 inches
• End Direction: Center
• Type: Register
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 28R_6X10X7
