Southwark Metal 28R_4X12X6 Pipe Boot End 4x12 6 in

Product Description

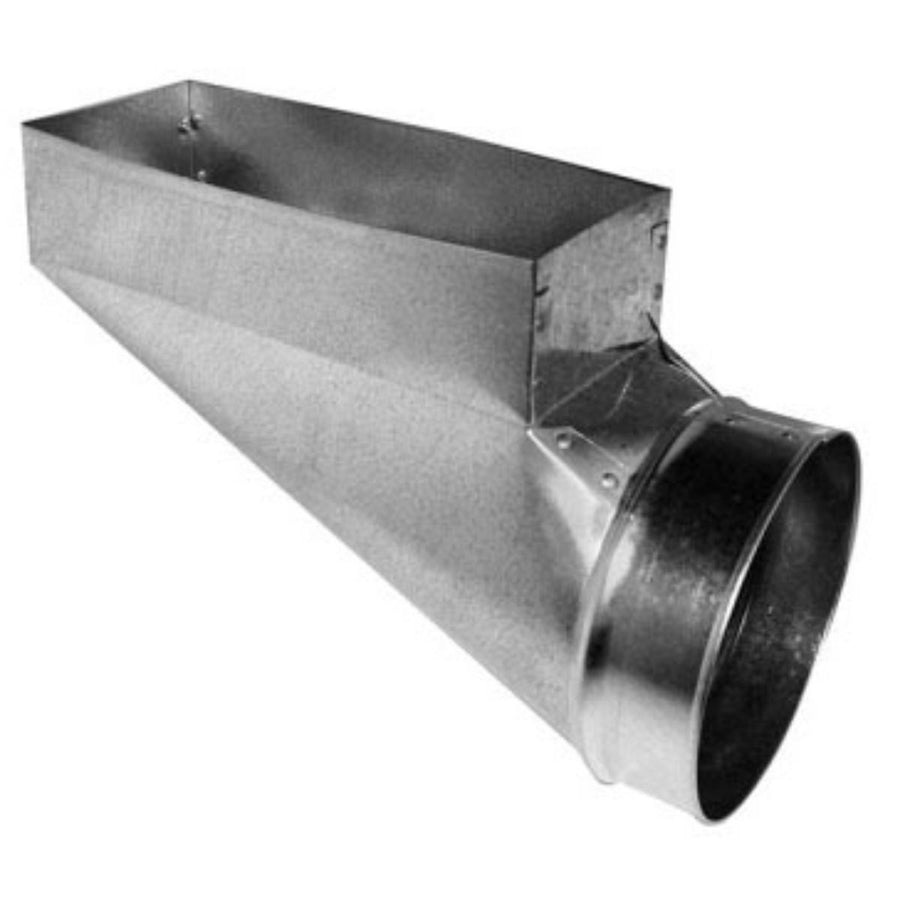

The Southwark Metal 28R_4X12X6 is a center-end sheet metal pipe boot designed to transition from a round duct collar to a rectangular floor or wall register opening. Constructed from hot dip galvanized steel, this boot provides corrosion resistance suited to residential and light commercial HVAC duct systems. The rectangular face measures 4 inches by 12 inches and accepts a 6-inch diameter round collar at the center end. HVAC sheet metal installers and duct fabricators use this fitting to terminate supply duct runs at floor, ceiling, or sidewall register locations.

This pipe boot is intended for use in forced-air supply duct systems where a round pipe must transition to a rectangular register face. The center-end configuration positions the round collar at the center of the boot, making it well suited for straight-drop floor boot installations. It conforms to ACCA and SMACNA applicable standards, making it appropriate for residential new construction and retrofit HVAC ductwork projects.

Key Features

• Hot dip galvanized steel construction for corrosion resistance in HVAC duct applications
• Rectangular face size of 4 inches by 12 inches fits standard register openings
• 6-inch diameter round collar accommodates common residential supply duct sizing
• Center-end collar placement suits straight-drop floor boot installations
• Meets ACCA and SMACNA applicable standards for sheet metal ductwork
• Register-type boot designed for direct pairing with floor or wall register grilles

Compatibility

Designed as an OEM-style sheet metal fitting for forced-air HVAC supply duct systems requiring a 4-inch by 12-inch register face and a 6-inch diameter round collar connection at the center end.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified sheet metal installer following SMACNA duct construction standards and applicable local mechanical codes. The air handling system should be fully powered down before cutting into existing ductwork or securing the boot. Secure the boot to the subfloor or framing opening using sheet metal screws and seal all joints with UL 181-rated mastic or foil tape to prevent conditioned air leakage. Do not use standard duct tape as a primary sealant on sheet metal duct connections.

Technical Specifications

• Size A (Rectangular Face): 4 inches x 12 inches
• Size B (Round Collar Diameter): 6 inches
• End Direction: Center
• Type: Register
• Material: Hot Dip Galvanized Steel
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: Southwark Metal
• Manufacturer Part Number: 28R_4X12X6
